ABS Injection Molding: The Complete Guide

In the world of plastic manufacturing, few materials rival ABS (Acrylonitrile Butadiene Styrene) for versatility, strength, and cost efficiency. Known for its toughness and ease of processing, ABS is one of the most widely used thermoplastics in injection molding—serving industries from automotive to consumer electronics.

This complete guide explores everything you need to know about ABS injection molding, including its properties, molding temperature, process details, and practical tips to achieve the best results.

What is ABS Injection Molding?

Brief Overview of ABS (Acrylonitrile Butadiene Styrene)

ABS is a thermoplastic polymer made by combining three monomers—acrylonitrile, butadiene, and styrene. Each component contributes specific properties:

• Acrylonitrile adds chemical resistance and heat stability.

• Butadiene enhances toughness and impact strength.

• Styrene gives rigidity, gloss, and ease of processing.

The result is a durable plastic that is lightweight, resilient, and easy to mold into complex shapes.

Why ABS Is Widely Used in Injection Molding

ABS’s popularity in injection molding stems from its excellent balance of mechanical performance, surface appearance, and cost efficiency. It’s easily processed on standard molding equipment, bonds well with coatings and paints, and can be blended or plated for various finishes.

Common Industries and Applications

Because of its balance of strength, aesthetics, and affordability, ABS injection molding is used in:

• Automotive parts (dashboards, trim panels, grilles)

• Consumer electronics (computer keyboards, monitor housings, phone cases)

• Household appliances (vacuum cleaner housings, kitchen tool handles)

• Toys (LEGO bricks are famously made of ABS)

• Plumbing fittings and protective gear

Properties of ABS Material

Chemical Composition and Structure

ABS is an amorphous polymer, meaning it lacks a crystalline structure. Its three-part composition gives it a combination of rigidity, impact strength, and heat resistance—qualities that few other plastics match at its price point.

The polymer can be modified by adjusting the ratio of its components. For instance, increasing butadiene content improves impact strength, while more acrylonitrile raises chemical resistance and temperature tolerance.

Key Mechanical and Thermal Properties

Property	Typical Value
Density	1.03–1.07 g/cm³
Tensile Strength	40–50 MPa
Flexural Modulus	2,000–2,400 MPa
Impact Strength (Izod)	150–300 J/m
Heat Deflection Temperature	85–100°C
Shrinkage	0.4–0.8%

ABS maintains dimensional stability under load, and its impact resistance remains strong even at low temperatures. It also offers good machinability and electroplating properties, making it suitable for aesthetic applications.

Comparison with Other Common Plastics

Property	ABS	Polycarbonate (PC)	Polypropylene (PP)	Polystyrene (PS)
Impact Strength	High	Very High	Medium	Low
Heat Resistance	Medium	High	Medium	Low
Surface Finish	Excellent	Good	Fair	Excellent
Cost	Moderate	High	Low	Low
Ease of Molding	Easy	Moderate	Easy	Easy

Conclusion: ABS offers a well-rounded mix of properties at an affordable cost, making it a top choice for designers seeking performance without breaking the budget.

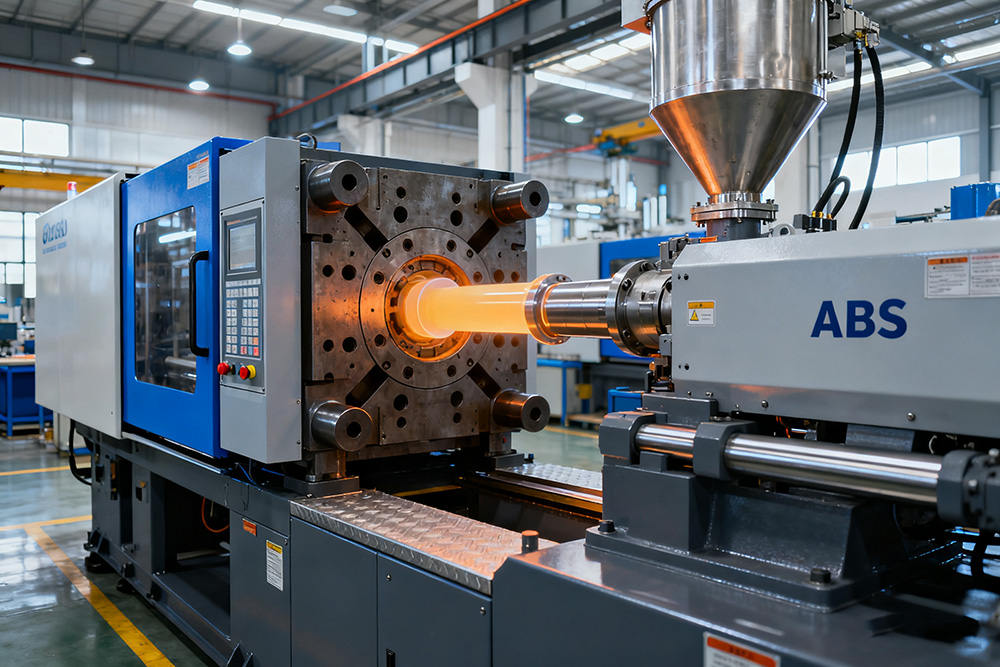

ABS Injection Molding Process Overview

ABS injection molding follows the same basic steps as other thermoplastics:

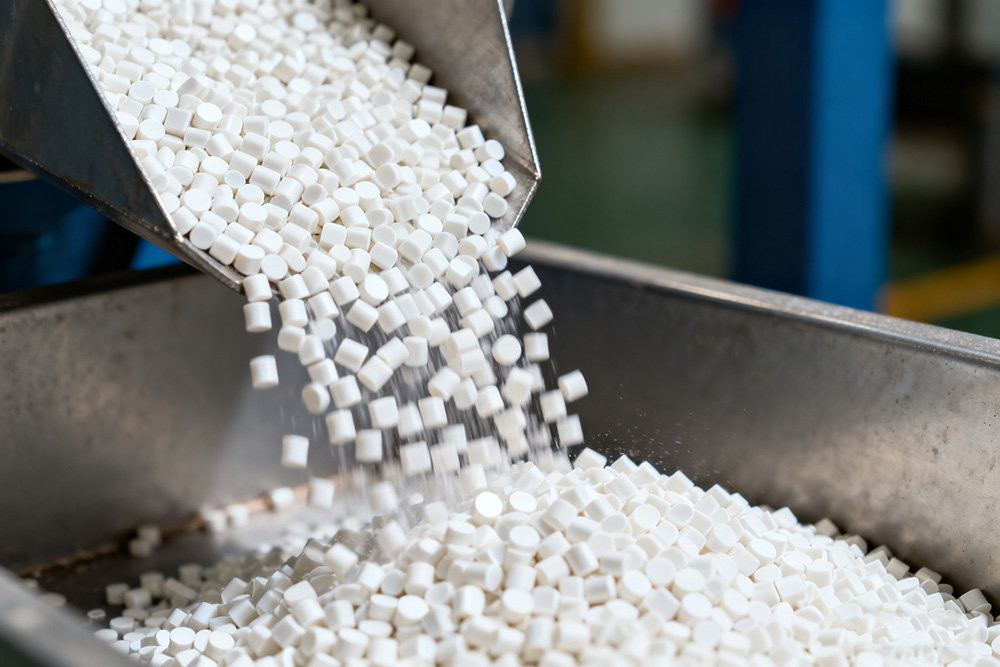

1. Material Preparation – ABS pellets are dried to remove moisture (usually at 80–85°C for 2–4 hours) to prevent surface defects like splay or bubbles.

2. Melting – The plastic is heated inside the barrel until it reaches its molten state.

3. Injection – The molten ABS is injected into the mold cavity under pressure.

4. Cooling – The material solidifies as it cools, taking the shape of the mold.

5. Ejection – The finished part is ejected, ready for trimming, assembly, or surface finishing.

Because ABS has low shrinkage and good flow, it’s ideal for intricate molds and parts that require dimensional accuracy.

What Temperature Is ABS Injection Molding?

Typical Temperature Ranges

Proper temperature control is essential for successful ABS molding. Here are typical temperature guidelines:

Stage	Temperature Range
Barrel/Melt Temperature	210–250°C
Mold Temperature	60–80°C
Nozzle Temperature	230–250°C
Drying Temperature	80–85°C

How Temperature Affects Flowability and Strength

• Too Low: Poor flow, weld lines, or incomplete filling.

• Too High: Burn marks, discoloration, or degraded polymer chains.

• Optimal Range: Ensures smooth flow, high surface gloss, and strong interlayer bonding.

Temperature also affects part appearance—higher mold temperatures improve surface finish and gloss but extend cooling time.

Tips for Maintaining Consistent Temperature

• Always pre-dry ABS pellets to avoid moisture-related defects.

• Use a closed-loop temperature controller to maintain barrel and mold consistency.

• Avoid sudden temperature drops that can cause warping or sink marks.

Is ABS Easy to Mold?

Molding Characteristics

ABS is considered one of the easiest engineering plastics to mold. It flows well into complex molds, offers predictable shrinkage, and maintains dimensional stability after cooling. It also supports secondary operations like painting, gluing, and plating.

Potential Challenges

Despite its versatility, ABS molding can face:

• Burn marks from excessive melt temperature or trapped air.

• Warping if cooling is uneven or mold design is unbalanced.

• Surface blemishes if pellets contain moisture or contamination.

These issues can be avoided through proper temperature control, mold venting, and consistent drying.

Comparison with Harder-to-Process Plastics

Compared to high-performance plastics such as PEEK or PC, ABS requires lower processing temperatures and less pressure, making it more cost-effective for high-volume manufacturing.

PEEK, for example, demands temperatures above 350°C, specialized steel molds, and strict cooling control—factors that greatly increase cost. ABS, in contrast, can run efficiently on standard molding machines.

Common Applications of ABS Injection Molding

ABS’s versatility makes it a go-to choice for various industries:

• Automotive: Interior trim, pillar covers, instrument panels, and grilles.

• Consumer Electronics: Laptop shells, keyboard keys, TV frames, and remote controls.

• Appliances: Mixer bodies, vacuum cleaners, and refrigerator liners.

• Medical Devices: Housings for non-implantable devices and equipment casings.

• Construction: Pipe fittings, protective helmets, and wall switch plates.

• Toys: Durable, brightly colored toys like LEGO bricks.

ABS’s ability to combine aesthetics with mechanical toughness ensures its continued demand in both consumer and industrial markets.

Tips for Successful ABS Injection Molding

1. Dry the Material Thoroughly:
   Moisture is the enemy of ABS molding. Dry at 80–85°C for at least 2–4 hours before processing.

2. Maintain Proper Melt Temperature:
   Keep melt temperature between 210–250°C for consistent part quality.

3. Optimize Injection Pressure:
   High enough to fill the mold completely but not so high as to cause      flashing.

4. Ensure Uniform Cooling:
   Uneven cooling can cause warping or residual stress—use balanced cooling      channels.

5. Design for Mold Flow:
   Avoid sharp corners and thick-to-thin transitions that can cause flow      hesitation or voids.

6. Control Venting and Gate Design:
   Proper venting reduces the risk of burn marks and trapped gases.

7. Consider Surface Finish:
   For glossy finishes, use a higher mold temperature; for matte finishes,      slightly lower temperatures are preferred.

Advantages and Limitations of ABS Injection Molding

Advantages

• Excellent impact resistance and toughness

• Good surface finish and paintability

• Dimensional stability with low shrinkage

• Easy to machine, assemble, and recycle

• Works well with metal plating and adhesives

• Cost-effective for mass production

Limitations

• Poor UV resistance (can discolor under sunlight)

• Limited chemical resistance to strong acids or solvents

• Relatively low heat resistance compared to engineering plastics like PC or PA

• Can emit fumes if overheated during processing

To overcome UV limitations, ABS is often blended with polycarbonate (PC) or coated with UV-resistant finishes for outdoor applications.

Conclusion

ABS injection molding remains one of the most widely used and cost-efficient plastic manufacturing methods in the world. Its blend of strength, toughness, and surface quality makes it suitable for countless applications—from car interiors to consumer electronics and toys.

For engineers and manufacturers, understanding ABS’s material properties, processing parameters, and design considerations is key to producing durable, high-quality molded parts.

With the right molding conditions—especially in temperature control, drying, and mold design—ABS can deliver exceptional results at scale, making it a cornerstone of modern injection molding.
