Injection Molding vs 3D Printing: Which Is Better for Your Project?

In modern manufacturing, both injection molding and 3D printing (additive manufacturing) play crucial roles in product development and production. Each technology has unique advantages, limitations, and ideal use cases. Whether you’re a designer, engineer, or entrepreneur, understanding how these two processes compare can help you make the right decision for your production goals, budget, and timelines.

This comprehensive guide breaks down everything you need to know—processes, materials, costs, speed, sustainability, and more—to help you decide between injection molding vs 3D printing.

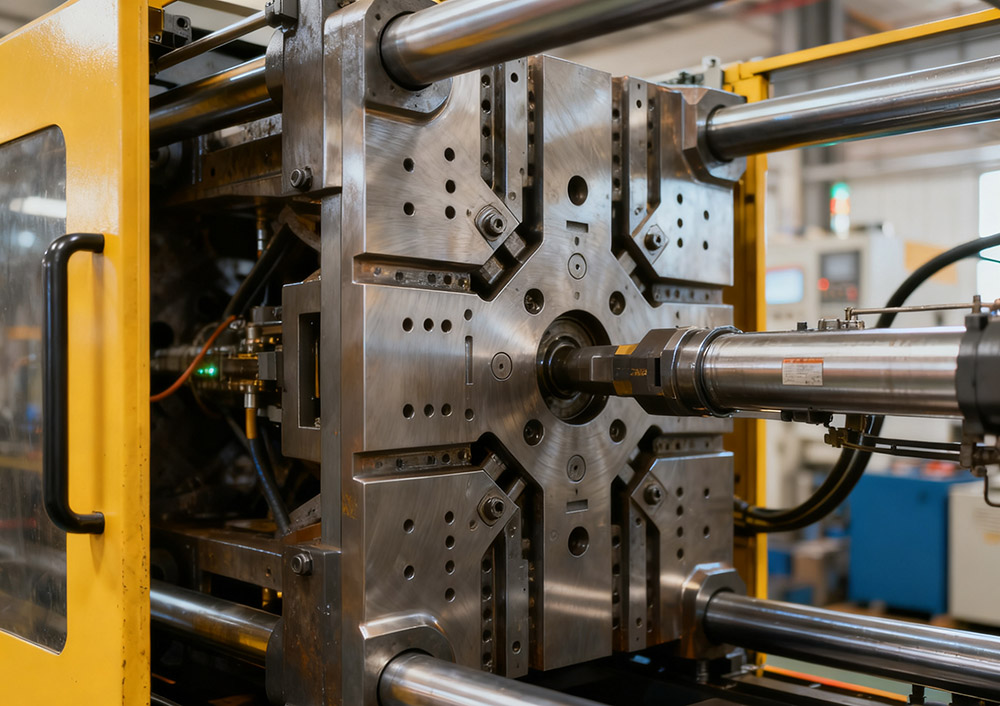

1. What Is Injection Molding?

Injection molding is a mass-production manufacturing process where molten plastic is injected into a metal mold cavity under high pressure. Once cooled and solidified, the mold opens, and the part is ejected. This process is ideal for creating large volumes of consistent, high-quality plastic parts.

Key Steps in Injection Molding:

1. Material melting – Plastic pellets are fed into a heated barrel and melted.

2. Injection – The molten material is injected into a mold cavity under high pressure.

3. Cooling – The part solidifies as it cools within the mold.

4. Ejection – The finished part is ejected, and the cycle repeats.

Common Materials:

• ABS (Acrylonitrile Butadiene Styrene)

• PP (Polypropylene)

• PC (Polycarbonate)

• PE (Polyethylene)

• Nylon (PA)

• POM (Acetal)

Strengths of Injection Molding:

• High production efficiency: Ideal for mass production of thousands or millions of identical parts.

• Excellent surface finish: Produces smooth, detailed, and durable parts with minimal post-processing.

• Consistent quality: Once molds are optimized, every part produced has uniform quality and precision.

• Wide material selection: Can use a broad range of thermoplastics and even some thermosets.

Limitations of Injection Molding:

• High upfront costs: Mold design and fabrication are expensive.

• Long lead time for molds: Tooling can take weeks or months to produce.

• Not suitable for rapid prototyping: Economical only for large production runs.

• Limited design flexibility: Complex or highly customized designs may require costly mold changes.

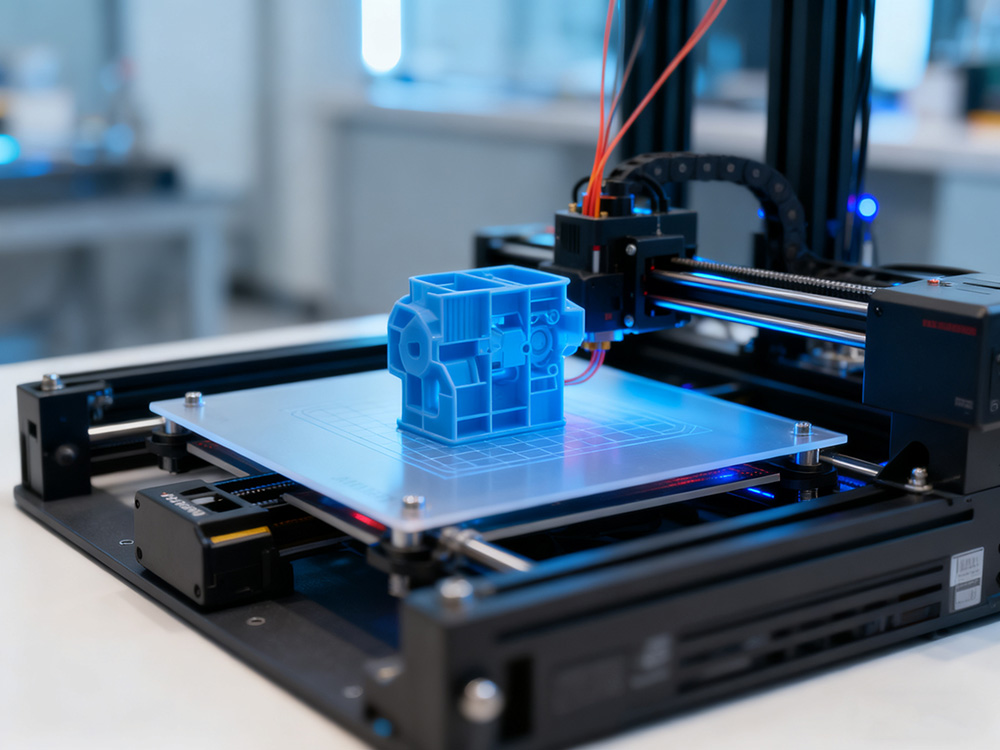

2. What Is 3D Printing?

3D printing, also known as additive manufacturing, builds objects layer by layer from a digital CAD file. Unlike molding or machining, which subtract or shape material, 3D printing adds material only where needed—offering unmatched design freedom.

Common 3D Printing Methods:

• FDM (Fused Deposition Modeling): Melts and extrudes thermoplastic filament layer by layer.

• SLA (Stereolithography): Uses a laser to cure liquid resin into solid layers.

• SLS (Selective Laser Sintering): Fuses powdered materials (plastics or metals) with a laser.

• DMLS (Direct Metal Laser Sintering): Produces dense metal parts layer by layer using metal powders.

Common Materials:

• Thermoplastics: PLA, ABS, PETG, nylon

• Resins: Standard, tough, flexible, or castable resins

• Metals: Stainless steel, titanium, aluminum

• Composites: Carbon fiber-reinforced filaments, wood-infused materials

Strengths of 3D Printing:

• Design flexibility: Complex geometries and internal structures are easily achievable.

• Low setup cost: No need for molds or tooling.

• Rapid prototyping: Design iterations can be printed within hours.

• On-demand production: Reduces inventory waste and supports small-batch manufacturing.

Limitations of 3D Printing:

• Slower production speed: Not ideal for high-volume manufacturing.

• Limited part size: Dependent on printer build volume.

• Surface finish: Often requires post-processing for smoothness and strength.

• Material and mechanical limitations: Printed parts may be weaker than molded ones, especially in layer adhesion.

3. Key Differences Between Injection Molding and 3D Printing

Feature	Injection Molding	3D Printing
Production Method	Material injected into molds	Material added layer by layer
Setup Cost	High (due to molds)	Low (no molds required)
Production Volume	Best for large-scale runs	Best for prototypes or small batches
Speed	Fast per part after setup	Slower per part
Material Variety	Very broad range	Limited (but expanding)
Surface Finish	Smooth and uniform	May need finishing
Design Flexibility	Moderate	Very high
Lead Time	Long (tooling required)	Short (ready to print)

4. Cost Comparison: When Each Process Makes Sense

Injection Molding:

• Economical for mass production. Once the mold is made, each part’s cost drops significantly.

• Example: A mold may cost $10,000, but if you produce 100,000 units, the per-part cost could be just a few cents.

3D Printing:

• Ideal for low-volume runs or prototypes.

• No tooling costs, so producing a single part is affordable—but scaling to thousands quickly becomes inefficient.

• Example: A single printed part may cost $10–$50, depending on material and complexity.

In short:

• For 1–100 parts, 3D printing is cheaper.

• For 1,000+ parts, injection molding becomes more cost-effective.

5. Speed and Production Efficiency

Injection Molding:

• After mold setup, cycle times can be as short as a few seconds per part.

• Best suited for continuous, high-volume production.

3D Printing:

• Printing can take hours per part, depending on complexity and size.

• However, multiple printers can run in parallel for small-batch production.

• Ideal for rapid prototyping or on-demand production.

Verdict: Injection molding wins for mass production, while 3D printing excels in speed of design-to-part transition.

6. Material Properties and Strength

Injection-Molded Parts:

• Exhibit high density and strength due to uniform cooling and pressure.

• Consistent mechanical and thermal performance.

• Suitable for functional and structural components in automotive, medical, and consumer electronics.

3D-Printed Parts:

• Tend to have anisotropic properties (weaker along layer lines).

• Resin and metal prints can match molded part strength but often at higher cost.

• Excellent for concept models, prototypes, or custom functional parts.

Verdict: For maximum durability and precision, injection molding still dominates.

7. Design Flexibility and Customization

3D Printing:

• Allows unlimited design creativity—hollow structures, lattice interiors, or organic shapes.

• Perfect for personalized or custom-fit designs (e.g., dental aligners, prosthetics).

Injection Molding:

• Design limited by mold complexity, draft angles, and undercuts.

• Modifying a design often means creating a new mold, increasing cost and time.

Verdict: 3D printing leads in design freedom and customization.

8. Environmental Impact and Sustainability

Injection Molding:

• Generates more material waste during setup and sprue/trimming.

• However, per-part efficiency improves with large production runs.

• Some manufacturers use recycled plastics to reduce environmental impact.

3D Printing:

• Generally less wasteful, as material is added only where needed.

• Supports on-demand production, reducing inventory and transport emissions.

• Certain materials (e.g., PLA) are biodegradable or recyclable.

Verdict: 3D printing is more sustainable for small-scale production, while injection molding can be eco-efficient at high volumes.

9. Applications Comparison

Industry	Injection Molding Applications	3D Printing Applications
Automotive	Bumpers, dashboards, clips	Custom tools, prototypes, jigs
Medical	Syringes, housings, casings	Implants, prosthetics, models
Consumer Electronics	Housings, connectors	Rapid prototypes, enclosures
Aerospace	Components, panels	Lightweight brackets, ducts
Consumer Goods	Toys, containers, packaging	Personalized items, small runs

10. Which Is Better?

There’s no one-size-fits-all answer—it depends on your goals:

Choose Injection Molding if you need:

• High-volume production

• Consistent part quality and strength

• Smooth surface finish and tight tolerances

• Lower long-term cost per part

Choose 3D Printing if you need:

• Rapid prototyping or short runs

• Design flexibility and customization

• Low upfront cost and faster iteration

• Sustainable, small-scale production

Many companies today even combine both methods—using 3D printing for prototyping and injection molding for final mass production.

Conclusion

When comparing injection molding vs 3D printing, the best choice depends on production scale, design complexity, material needs, and budget.

• Injection molding remains the king for mass production—efficient, precise, and cost-effective at scale.

• 3D printing, on the other hand, is the champion of innovation, customization, and prototyping.

In the evolving landscape of manufacturing, the most competitive strategy often blends both: 3D printing for rapid design validation and injection molding for high-volume manufacturing.
