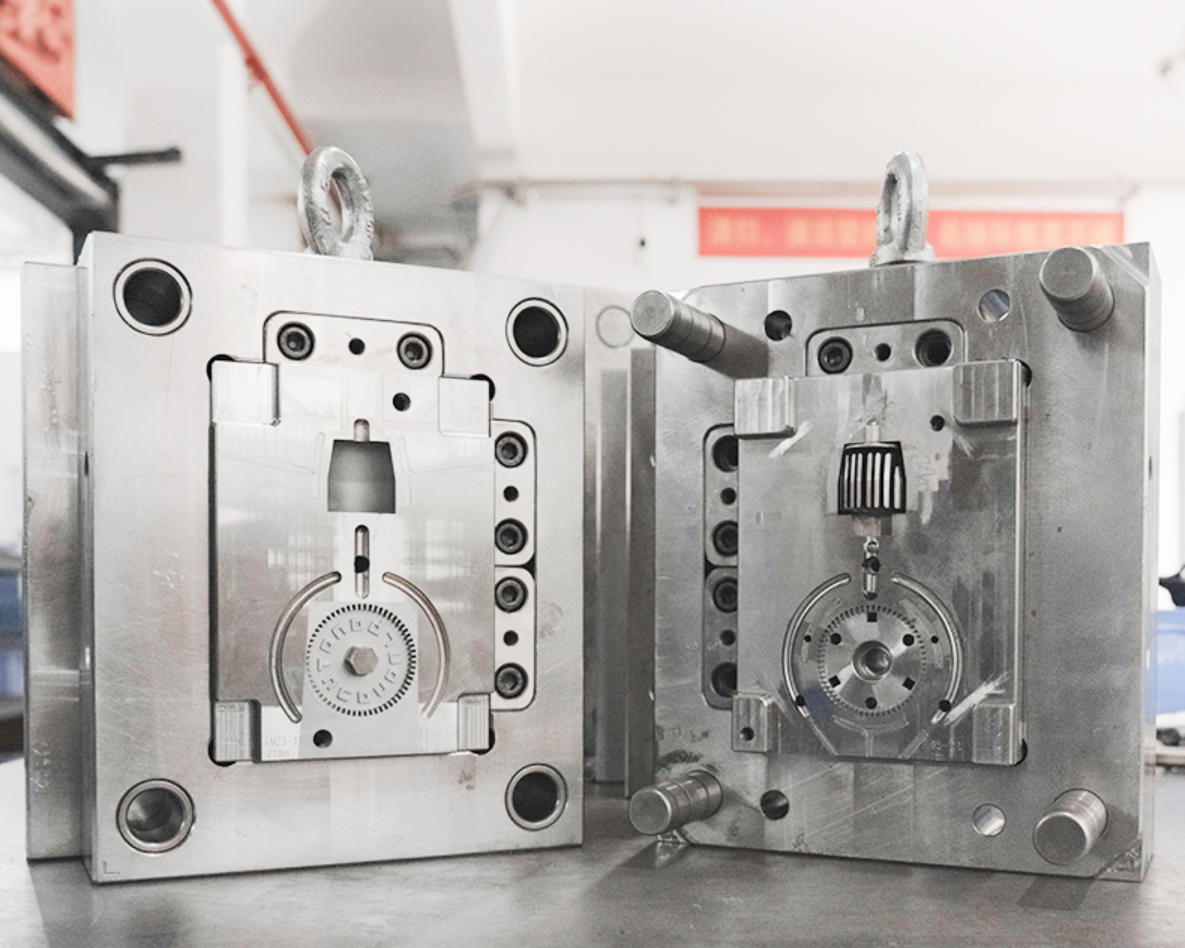

Die casting molding and injection molding are two of the most widely used manufacturing processes for high-volume production of precision parts. At first glance, they appear similar: material is heated or liquefied, forced into a mold cavity, then cooled and ejected as a solid part. However, they differ fundamentally in material, process mechanics, mold design, cost structure, performance of parts, and application domains.
Choosing between die casting molds and injection molds is not trivial — the decision affects tooling cost, lead time, material choices, mechanical properties, tolerances, surface finish, lifespan, and overall economics. In this article, we’ll compare the two in detail: how each works, what their molds must endure, pros & cons, and guidelines for selecting one process or the other.
Die casting is a metal casting process in which molten metal (typically non-ferrous alloys like aluminum, zinc, magnesium, copper) is injected under high pressure into a reusable steel mold (the die). Once the metal solidifies, the die is opened and the cast metal part is ejected.
There are two primary die casting categories:
Hot-chamber die casting: The metal reservoir is part of the machine, so metal is drawn into a chamber and injected quickly. Best for alloys with relatively low melting points (e.g. zinc).
Cold-chamber die casting: The molten metal is poured into a separate shot chamber from a ladle and then injected. Used for metals like aluminum whose melting points are higher.

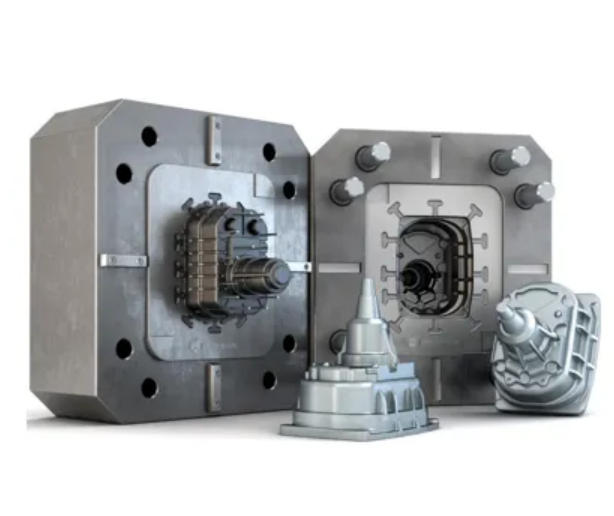

Die casting molds (dies) must resist high pressures, thermal cycling, and metal creep or erosion over time.
Injection molding is a process where plastic (thermoplastic or thermosetting polymers) is melted (or heated above its flow temperature) and injected into a mold cavity under pressure. After cooling, the solidified plastic part is ejected.

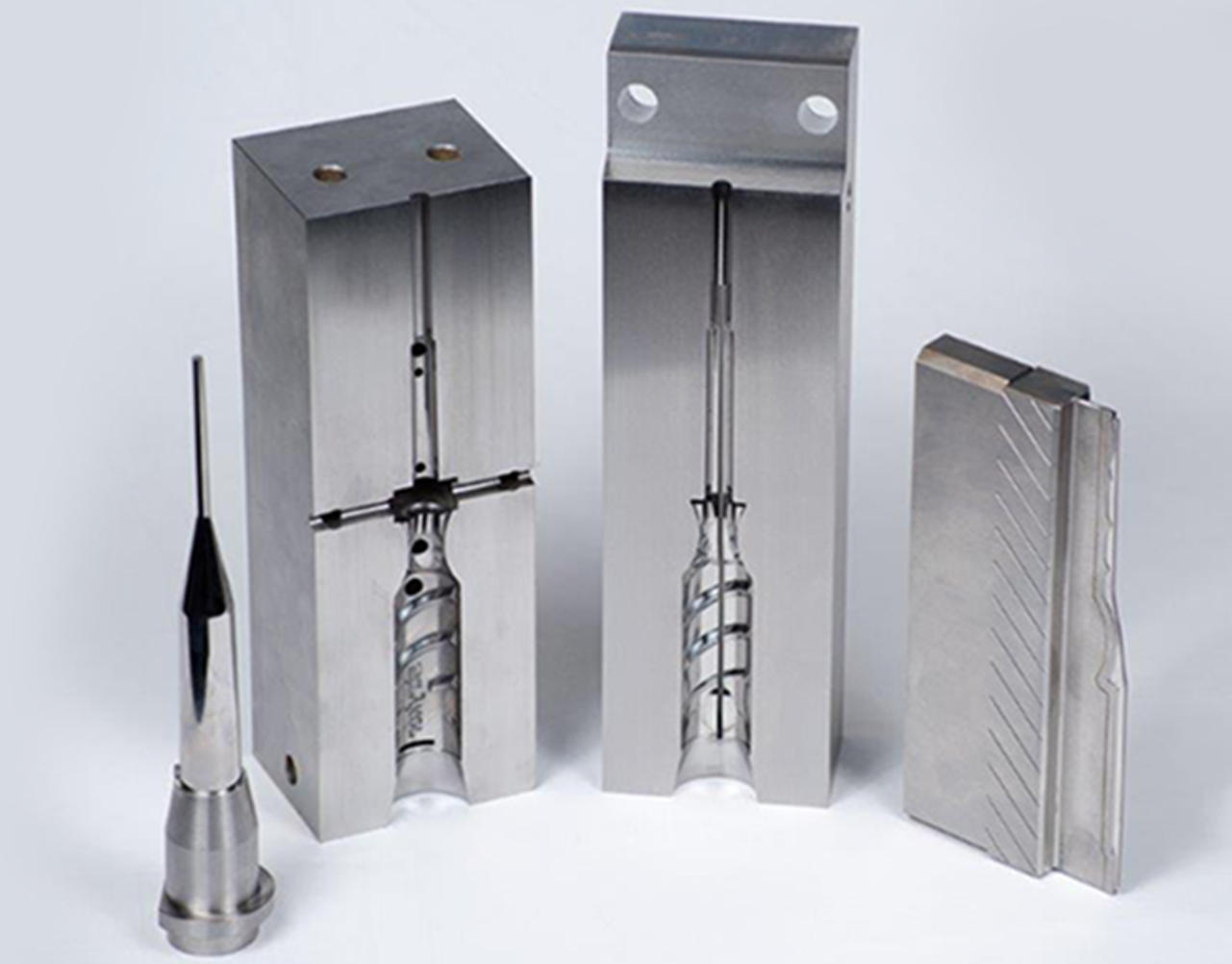

Molds for injection molding are typically made of steel, pre-hardened steel, aluminum, or composite tooling. The molds must handle melt temperatures, pressure, cooling, ejection, and repeated cycles of thermal stress.
Because the materials and process environments differ so significantly, the mold design, constraints, and performance requirements diverge. Here’s a breakdown of the main contrasting factors:
Characteristic | Die Casting Mold | Injection Mold |
Material handled | Molten metal (non-ferrous alloys) | Molten plastic / polymer |
Melt temperature and thermal stress | Very high (several hundred °C), intense thermal cycling | Lower (thermoplastics often in range of ~200-300 °C or more, depending on plastic) |
Injection pressure / force | Extremely high pressures to force metal flow (often tens to hundreds MPa) | High pressures, but generally lower than for metals |
Mold material and hardness | Very durable, high hardness steel, tool steel or alloys resistant to erosion, thermal fatigue | Steel (hardened or prehardened), aluminum for lower volume molds, sometimes beryllium copper inserts for heat transfer |
Wall design / shrinkage / tolerances | Metals shrink and solidify; wall thickness, draft, cooling, solidification must be carefully controlled; die casting can yield relatively tight tolerances and fine detail. | Plastics have larger shrinkage variation, warpage risk; uniform wall thickness, draft angles, proper gate design and cooling are critical |
Cooling / mold temperature control | Cooling channels are needed, but metal solidification is inherently more exothermic; thermal gradients and heat extraction are challenging | Cooling is a dominant part of cycle time; effective cooling channel layout is crucial for cycle efficiency |
Cycle time | Often slower due to metal solidification time; but high throughput is possible for simple casts | Plastic injection molds often have faster cycles (due to lower heat capacity, faster cooling) |
Mold life / durability | Very long for well-designed dies; a good die casting mold can produce hundreds of thousands to millions of parts before requiring refurbishment | Mold life depends heavily on material, usage, maintenance; prehardened or aluminum molds have lower life; high volume tool steel molds endure many cycles |
Complexity & features | Dies often include features for gating, vents, slides, ejectors, inserts; but the metal’s fluidity and solidification behavior constrain very thin walls or deep undercuts | Molds may contain side actions, lifters, slides, unscrewing mechanisms, inserts, cooling channels, variothermal systems (for complex molds) |
Cost (tooling & per part) | Tooling cost tends to be extremely high due to required hardness, precision, complexity; per-part cost becomes favorable at high volume | Tooling cost is also high, but in many plastic parts it tends to be lower than die casting molds for equivalent complexity; per-part cost is lower especially for plastics |
Surface finish / secondary operations | Good as-cast surfaces possible, minimal finishing may be needed; metal parts offer strength, rigidity, ability to machine or surface treat further | Injection molded parts can be made with textured or polished mold surfaces; plastics are more limited in post machining but usually need less machining |
Thick, Rigid Structure
Die casting molds must withstand very high pressure and repeated thermal cycling without deformation or cracking. They tend to be robust, thick structures.
Gating & Flow Control
The gating system (sprue, runner, gates) in die casting must carefully manage high fluid metal flow, avoid turbulence, and allow proper filling before solidification. Diverter cones or flow channels may be used to distribute molten metal and relieve pressure.
Vent & Gas Escape
Because metals can trap gasses, proper venting and degassing features (like vents, traps, vacuum assist) in the die are needed to prevent porosity or gas inclusion defects.
Cooling / Heat Management
Quick heat removal is important to reduce cycle times and reduce internal defects. Dies include cooling channels or heat transfer features. But because metals solidify from external toward internal, thermal gradient control is critical.
Ejection / Part Release
Once the metal solidifies, ejection must occur without damaging the part. Ejector pins, stripper plates, or ejector systems are integrated into the die.
Wear & Maintenance
Because molten metal is harsh, molds must resist erosion, thermal fatigue, and wear. Mold coatings (e.g. nitriding, PVD) or surface treatments are often applied. Also, replaceable inserts or localized hardening are used to extend life.
Precision & Thin Walls
Plastic parts often demand thin walls, tight tolerances, and complex geometries. The mold design must ensure uniform filling and minimize warpage, with features like balanced gating, multiple gates, or hot runner systems.
Cooling Channels
The cooling system is often the biggest influence on cycle time—molds are designed with internal cooling channels, often near the cavity cores, sometimes conformal cooling or baffle inserts to maintain temperature uniformity.
Venting & Air Escape
Because plastic is viscous, trapped air can cause burns, short shots, or defects. Vents along parting lines, ejector pin clearances, or micro-vents are included.
Ejection / Demolding
Ejector pins, stripper plates, sleeves, pins, or air blasts are integrated to release the part without damage. A draft angle is essential to ease release.
Life & Maintenance
Mold maintenance is critical: regular cleaning, polishing, inspection of wear zones, and occasional reconditioning. Molds made from softer steels or aluminum are susceptible to wear sooner.
Every process has trade-offs. Below is a summary of pros and cons for each side in mold design and operation.

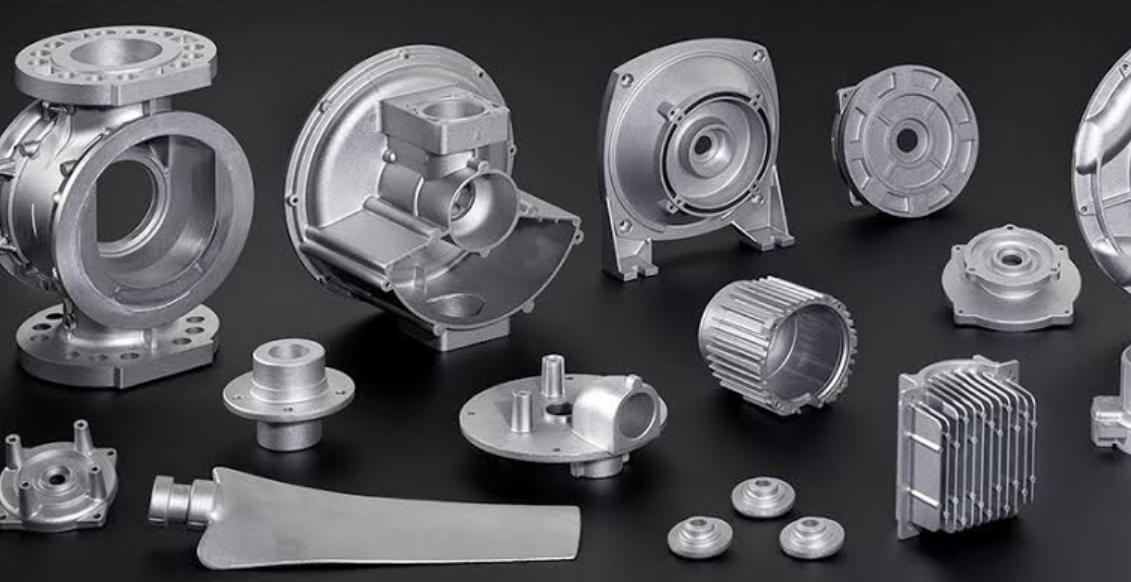

High Strength / Mechanical Properties
Metal parts produced by die casting are inherently stronger, heat resistant, and durable compared to plastic parts. They can withstand higher mechanical loads, temperature, wear, and structural demands.
Tight Tolerances & Good Dimensional Stability
Die cast parts can achieve fine tolerances and more stable dimensions, especially for metals that shrink predictably.
Good Surface Finish
Cast metal parts often come out with excellent surface quality, reducing need for machining or finishing.
Long Tool Life
Well-designed die casting molds endure many cycles, making them good investments for large production runs.
Part Consolidation
Metal allows combining multiple functions, threads or inserts can be integrated, potentially reducing assembly steps.
High Tooling Cost & Complexity
The cost of dies is very high due to material, machining precision, treatments, and complexity.
High Operating Conditions
Molds must sustain extreme pressure, temperature, and thermal fatigue, making design and maintenance demanding.
Material Limitations
Die casting is generally limited to non-ferrous, low to moderate melting point metals (aluminum, zinc, magnesium). High melting point metals (steel, titanium) are less practical.
Porosity & Defects
Improper gating, venting, or cooling can lead to porosity, shrinkage defects, cold shuts, or gas entrapment in metal parts.
Slower Cycle Times
Metal solidification and cooling can take time, especially for thick sections.

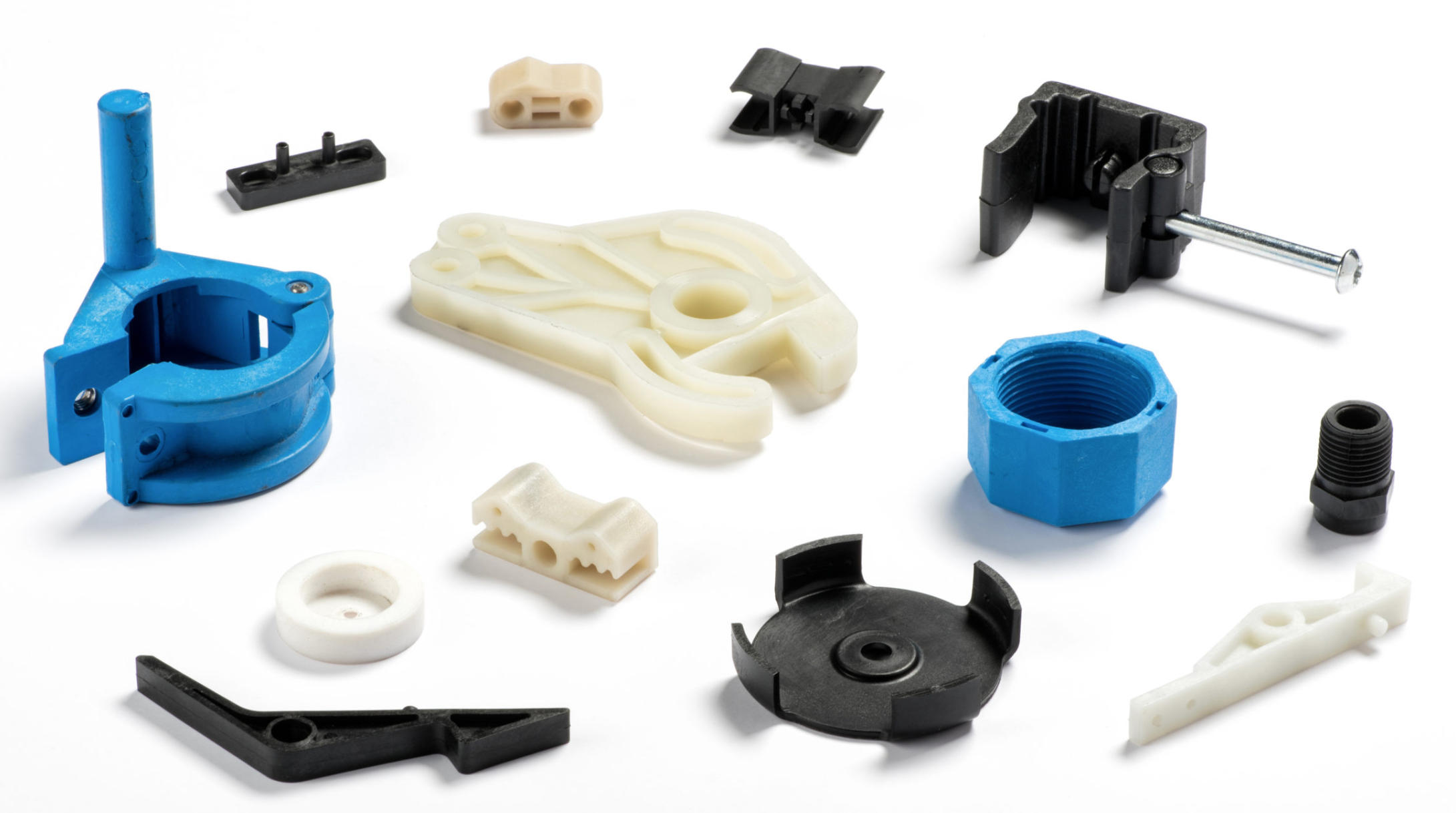

Lower Material Temperature, Easier Handling
Plastics melt at far lower temperatures, making molds less stressed by thermal extremes.
Lower Tooling Cost (in many cases)
Though still expensive, injection molds (especially for plastics) tend to cost less per cavity than equivalent die casting molds for metal. Molds can also use softer steels or aluminum for lower volume runs.
Faster Cycle Times
Plastic generally cools, solidifies, and can be demolded faster than metal, so cycle times are often shorter.
Greater Material Variety & Design Flexibility
Many polymer materials with different mechanical, thermal, electrical, chemical properties can be molded. Also, additives, fillers, colorants, overmolding, and multi-material injection molding are possible.
Lower Weight / Cost per Part
Plastic parts tend to be lighter and often cheaper to produce for many everyday applications.
Weaker Mechanical Properties
Plastics generally have lower strength, lower thermal stability, less wear resistance compared to metals.
Shrinkage, Warpage, Dimensional Variability
Plastic parts are susceptible to shrinkage, warpage, cooling stress, and dimensional variation due to process variation.
Tool Wear & Maintenance
Though less extreme than in metal molds, molds still wear over time; soft steels or inserts wear faster.
Surface & Finish Constraints
While molds can have texture or polish, plastics may show weld lines, flow marks, sink marks, or require secondary finishing in some cases.
Which process is right depends heavily on the requirements of the part, the production volume, the material properties needed, and the economics. Here are guidelines to help decide.
Use Die Casting When:
You need metal parts with strength, heat resistance, or stiffness (e.g. engine parts, housings, structural components).
You have high volume demand — so that the high initial tooling cost is amortized over many parts.
You require tight tolerances, complex geometry, fine features in metal.
The design demands metallic behavior (conductivity, thermal stability, hardness, wear resistance).
The buyer can accept or design around common metal casting issues (porosity, gating design, solidification control).
Use Injection Molding (Plastic) When:
The part can be made of plastic (or composite) and meets functional requirements (strength, thermal, chemical).
You need lighter parts, good chemical resistance, insulative properties, design flexibility.
You expect medium to high volume, but not so high that metal tooling becomes economical.
You want to exploit the broad materials palette (engineering plastics, flexible plastics, fillers, etc.).
You want shorter lead times and lower cost for prototyping or lower volume runs.
In some hybrid situations, one might use metal injection molding (MIM) or plastic + metal overmolding or insert molding — but that gets into a fringe domain beyond pure die casting vs injection molding.
To more concretely compare, let’s examine how mold (die) design differs in real operational detail:
Parting Line & Mold Structure
Die casting dies tend to have more robust clamping and thicker cross-sections to resist deformation under metal pressure. Injection molds may be more delicate in places, with finer features.
Cooling Channels
Injection molds often prioritize close cooling channels near cavity surfaces, sometimes with conformal cooling. Die casting molds’ cooling must manage large thermal load from molten metal and ensure directional solidification.
Gate Inserts & Control
Metal gates sometimes include sacrificial gate inserts or special designs to handle metal flow; plastic mold gates may use hot runner systems or valve gates.
Venting & Degassing
In die casting molds, vents must manage gas evolved from molten metal or trapped air; sometimes vacuum or pressure assist is used. In injection molds, vents are often micro-vents, parting line vents, or bleed grooves to allow trapped air out.
Insert, Slide & Action Mechanisms
Both mold types may need slides, lifters, or side cores for undercuts, but the force and thermal conditions differ.
Ejector Systems
In die casting molds, ejection of metal parts must be robust and account for shrinkage and contraction. In injection molds, ejection focuses on avoiding damage to plastic, using pins, sleeves, stripper plates.
Maintenance & Refurbishment
Die casting dies often require periodic maintenance: regrinding, recoating, repair of erosion, replacing inserts. Injection molds too require cleaning, polishing, micro repairs, but the severity is lower.
Let’s consider a product — say, an electronic housing. Suppose you want a metal housing vs plastic housing.
Metal die casting mold would allow a strong, thermally conductive, durable housing, ideal for shielding, heat dissipation, or structural integrity. But the tooling cost is high, and part complexity must be managed carefully.
Plastic injection mold could allow a lighter, cheaper housing, color options, design flexibility (snap fits, ribbing, inserts) and is often sufficient for consumer electronics. However, it won’t carry weight or mechanical loads as well as metal.
An interesting real case is a company (HLH Rapid) doing both metal die casting and plastic injection molding for parts in the same product (see their case study) — e.g. die casting for housing, injection molding for internal plastic parts. HLH Rapid This hybrid approach highlights each process’s strengths.
Even when one process looks superior on paper, real constraints often shape the final decision:
Design for Manufacturability (DFM)
A design may need to be altered depending on casting capability vs plastic molding constraints (e.g. undercuts, wall thickness, draft, gating).
Thermal & Structural Behavior
Metals shrink less variably than many plastics, but residual stresses, solidification direction, cooling gradients, and grain structure all influence final geometry or defects in die casting. Plastics risk warpage, sink, residual stress more severely.
Tooling Investment vs Volume
The higher the production volume, the more justified is a heavy die casting mold. For lower volumes, injection molding or even alternative methods may be more economical.
Part Weight & Cost
Metal parts are heavier and more expensive material cost, which can be a liability depending on application (transportation, weight constraints). Plastic parts often win in cost per unit at moderate volumes.
Finishing / Post Processing
Metal parts may need machining, surface treatments (coating, anodizing, plating) whereas plastics often come out cosmetically acceptable directly from the mold (if designed well).
Material Properties
Requirements for thermal conductivity, stiffness, wear, chemical resistance, electrical properties often push toward metal or particular engineering plastics.
Lead Time & Iteration Speed
Plastic molds may be built and iterated faster; changes to metal dies are more costly, so design must be more mature before committing.
Maintenance Risk
Metal molds endure harsher wear; downtime or repair can be expensive. If your product life or demand is uncertain, a more flexible, lower-investment mold may be safer.
“Die casting mold vs injection mold” is a vital comparison for engineers, product designers, and manufacturers. Though superficially similar in concept (fill a mold with material, cool, eject), the underlying realities diverge because of how metals and plastics behave.
Die casting molds are heavy duty, expensive, and built to handle molten metal under extreme pressure and heat, delivering strong, precise metal parts for high volume production.
Injection molds are typically less severe in mechanical demands, optimized for plastics, often lower cost per cavity, faster cycles, and more versatility in materials and design.
The right choice often comes down to:
What material your part must be (metal vs plastic)
What mechanical, thermal, or electrical properties are required
How many parts you’ll produce (to amortize tooling cost)
The complexity, tolerances, and finish demands of your part
Your acceptable risk, lead time, and iteration flexibility
In some products or systems, designers use both processes in tandem: metal structural parts via die casting, plastic internal or enclosure parts via injection molding. That way, each part is made by the process best suited to its role.
