Injection molding is one of the most widely used manufacturing processes for producing plastic parts. From automotive components and medical devices to consumer goods and electronics, this method allows manufacturers to produce high volumes of precise, durable, and cost-effective parts. At the heart of the process lies the injection mold, a carefully engineered tool that shapes molten plastic into the desired form.
But how exactly are injection molds designed? Designing a mold is a multidisciplinary task that combines knowledge of materials, mechanical engineering, computer-aided design (CAD), fluid dynamics, and manufacturing processes. In this article, we’ll explore the full journey of injection mold design, covering principles, considerations, steps, tools, and industry practices.

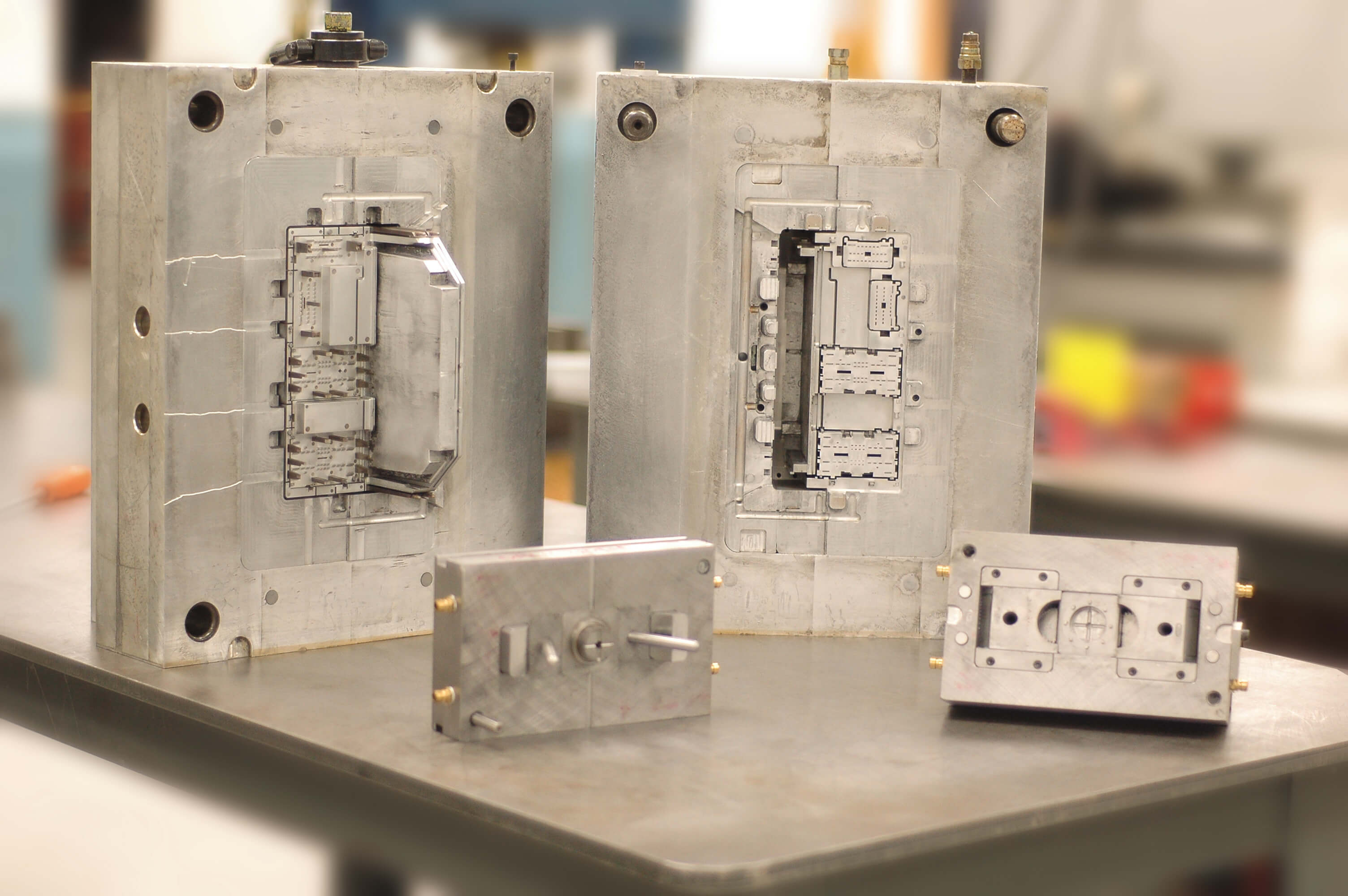

An injection mold is a custom-made tool, usually constructed from hardened steel, stainless steel, or aluminum, that is used in the injection molding process to shape plastic materials. The mold consists of two halves (the cavity and the core) that come together to form a cavity where molten thermoplastic or thermoset material is injected under high pressure. Once the material cools and solidifies, the mold opens, and the finished part is ejected.
The design of the mold directly affects:
Product quality and precision
Manufacturing efficiency
Cost of production
Mold durability and lifespan
This makes mold design one of the most critical stages in the injection molding process.
Before diving into the design steps, it’s important to understand the fundamental principles that guide mold design:
I. Part Geometry and Functionality
The design of the mold must reflect the shape, dimensions, and functional requirements of the final part. Complex geometries may require multiple cavities, sliders, or lifters.
II. Material Flow
The mold must allow molten plastic to flow smoothly and evenly into all areas of the cavity. Poor flow leads to defects like short shots, sink marks, or warpage.
III. Cooling Efficiency
Cooling is one of the most time-consuming stages of injection molding. A well-designed cooling system reduces cycle times and improves part consistency.
IV. Ejection System
Parts must be ejected without damage. The mold must incorporate ejector pins, sleeves, or other mechanisms to remove the part safely.
V. Durability and Cost Balance
A mold must withstand thousands (sometimes millions) of cycles. The choice of materials and surface treatments must balance durability with cost efficiency.
Designing an injection mold is not a single action but a structured process involving multiple stages. Let’s go step by step:
Step 1: Understanding the Product Requirements
The process begins with a clear understanding of the part to be manufactured. The product design team provides detailed information, such as:
3D CAD models of the part
Dimensional tolerances
Mechanical and thermal performance requirements
Aesthetic considerations (surface finish, texture)
Production volume and expected mold life
This data is essential to determine mold complexity, cavity numbers, and materials.
Step 2: Design for Manufacturability (DFM) Analysis
Before the mold design begins, engineers conduct a DFM analysis to identify potential issues in the product design. Typical points assessed include:
Wall thickness: Uniform wall thickness prevents warping.
Draft angles: Sloped walls allow easier ejection.
Undercuts: These may require side actions or lifters.
Ribs and bosses: Must be designed to avoid sink marks and maintain strength.
Material choice: Different plastics shrink differently, affecting mold dimensions.
DFM analysis helps optimize the product design for efficient molding.
Step 3: Mold Flow Simulation
Modern mold design heavily relies on computer-aided engineering (CAE) tools. Mold flow analysis software simulates the injection process and predicts:
Flow patterns of molten plastic
Potential air traps or weld lines
Filling time and pressure
Cooling efficiency and cycle time
Likely defects such as voids or warpage
This stage saves time and money by addressing potential issues before physical mold fabrication.
Step 4: Choosing the Mold Type
Molds can vary greatly depending on the product and production requirements. Key types include:
Two-plate mold: The most common, simple mold type with cavity and core halves.
Three-plate mold: Includes an additional plate to separate runners and gates, ideal for multi-cavity production.
Hot runner mold: Uses heated channels to deliver plastic directly to the cavities, reducing waste.
Cold runner mold: Simpler but produces runner waste that must be recycled.
Family mold: Produces multiple different parts in the same cycle.
The choice depends on product design, material, and cost considerations.
Step 5: Designing the Mold Layout
At this stage, engineers create the mold base layout and integrate the following systems:

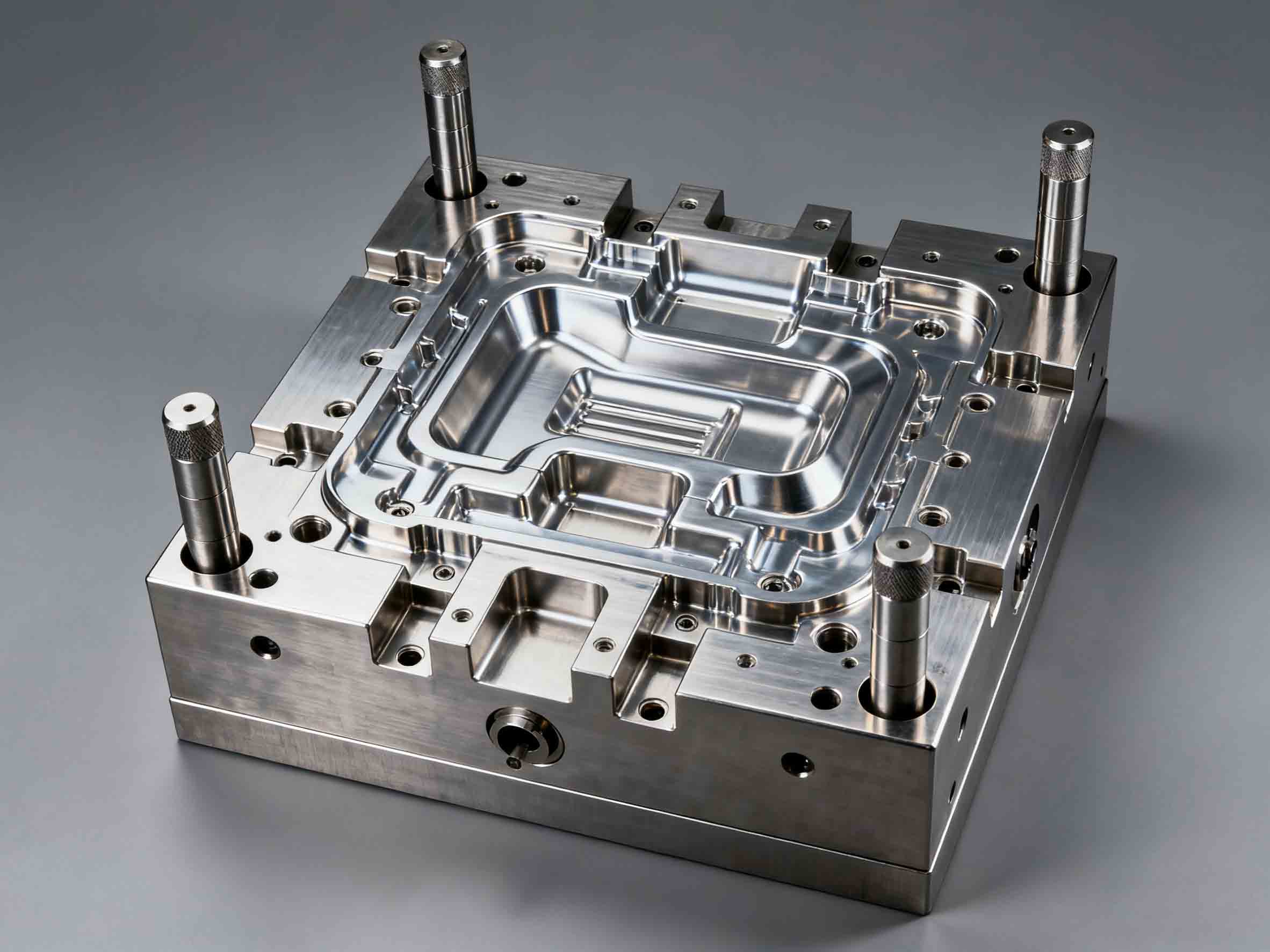

1. Cavity and Core Design: Shapes the part with precise dimensions.
2. Gating System: Controls how plastic enters the cavity. Common gate types include edge gates, pin gates, and submarine gates.
3. Runner System: Channels that guide plastic from the sprue to the gates.

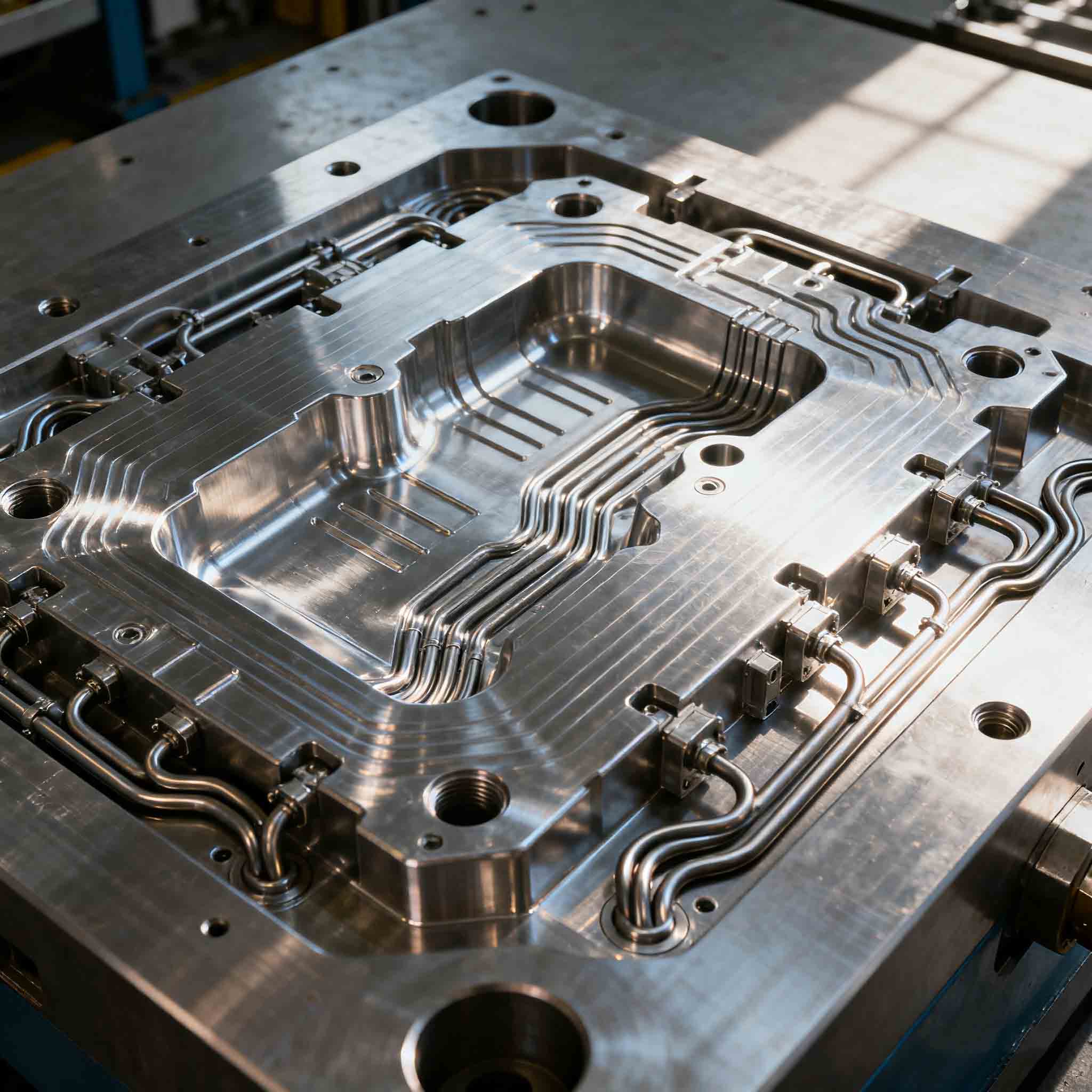

4. Cooling System: A network of water channels or conformal cooling lines to ensure uniform cooling.
5. Ejection System: Ejector pins, stripper plates, or sleeves to release the part.
6. Venting System: Allows trapped air and gases to escape during injection.
Step 6: Material Selection for the Mold
The choice of mold material depends on durability, production volume, and budget:
Hardened Steel: High strength, excellent wear resistance, long life (ideal for millions of cycles).
Pre-hardened Steel: Lower cost, shorter lifespan (suitable for medium-volume production).
Aluminum: Lightweight, easy to machine, faster lead times, but limited durability.
Beryllium-Copper Alloys: Excellent thermal conductivity, often used in cooling inserts.
Step 7: CAD Modeling and Mold Assembly
Using CAD software, designers create a detailed 3D model of the mold. This includes:
Complete mold assembly with all components
Movable parts like sliders, lifters, and ejectors
Clearances, tolerances, and alignment systems

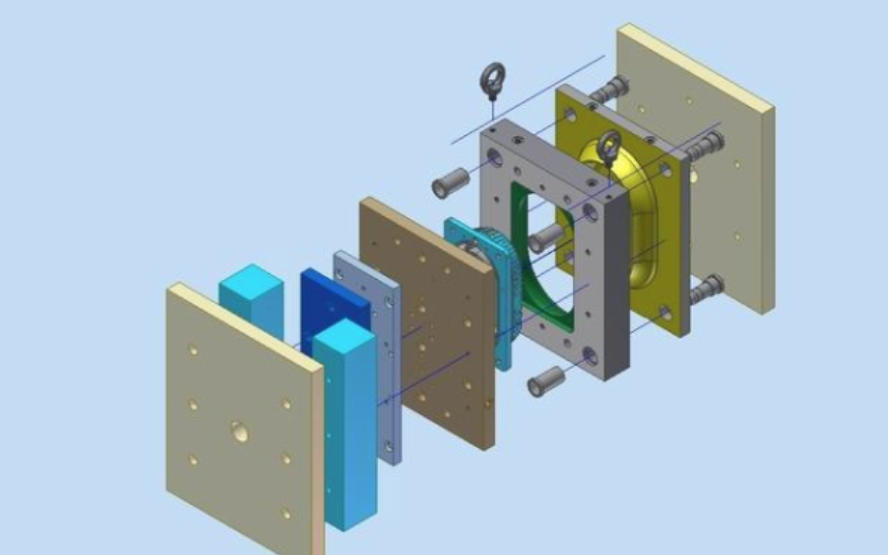

Exploded views for manufacturing instructions
CAD modeling ensures every detail is documented before machining begins.
Step 8: Validation and Prototyping
In many cases, manufacturers create prototype molds (soft tooling) using aluminum or even 3D printing. These allow limited production runs to test:
Part functionality
Surface quality
Cycle time efficiency
Potential design flaws
Validation ensures the final steel mold will perform correctly.
Step 9: Mold Fabrication
Once the design is approved, the mold is manufactured using advanced machining techniques:
CNC milling
EDM (Electrical Discharge Machining)
Grinding and polishing
Heat treatment
This process can take several weeks to months, depending on complexity.
Step 10: Testing and Trial Runs (T1, T2, T3)
When the mold is complete, it undergoes trial runs:
T1: First test to check filling, ejection, and part dimensions.
T2: Adjustments are made to fix issues like flashing, short shots, or warpage.
T3 and beyond: Final refinements ensure the mold meets quality standards.
Only after successful trials is the mold approved for full-scale production.
Modern mold design goes beyond the basics. Engineers also consider:
Conformal Cooling: Using additive manufacturing to create cooling channels that follow the part geometry, reducing cycle times.
Collapsible Cores: For complex internal geometries like threads without requiring unscrewing mechanisms.
Insert Molding and Overmolding: Designing molds to combine multiple materials or integrate metal inserts.
Automation Compatibility: Ensuring molds are compatible with robotic part handling for high-efficiency production.
Maintenance Accessibility: Designing molds for easy cleaning and repair, which extends lifespan.
Even with advanced tools, mold design faces challenges such as:
Warpage due to uneven cooling
Sink marks from improper rib design
Flashing caused by poor parting line sealing
Short shots from inadequate gating
High costs due to unnecessary complexity
Experienced designers use simulations, past knowledge, and industry standards to mitigate these risks.
Today, mold design is inseparable from CAD/CAE/CAM software. Popular tools include:
CAD Software: SolidWorks, CATIA, Siemens NX
CAE Software (Mold Flow Analysis): Autodesk Moldflow, Moldex3D
CAM Software: Mastercam, PowerMill for toolpath programming
These digital tools speed up design, improve accuracy, and reduce trial-and-error in production.
Mold costs can range from a few thousand to hundreds of thousands of dollars. Factors that influence cost include:
Complexity of geometry
Number of cavities
Mold material (steel vs aluminum)
Cooling system design
Surface finish requirements
Production volume (low vs high)
A well-designed mold may cost more upfront but saves money in the long run by reducing cycle times, maintenance, and scrap rates.
Injection molds are the backbone of modern plastic part production, and their design is both an art and a science. From understanding product requirements and running DFM analysis to detailed CAD modeling, material selection, and trial runs, the process involves a systematic blend of engineering and creativity.
A well-designed mold not only ensures high-quality parts but also lowers production costs, reduces defects, and extends tool life. With the rise of digital technologies, simulation software, and additive manufacturing, mold design is becoming faster, smarter, and more sustainable.
For manufacturers, investing in expert mold design is not just a step in production—it’s the key to achieving efficiency, precision, and competitive advantage.
