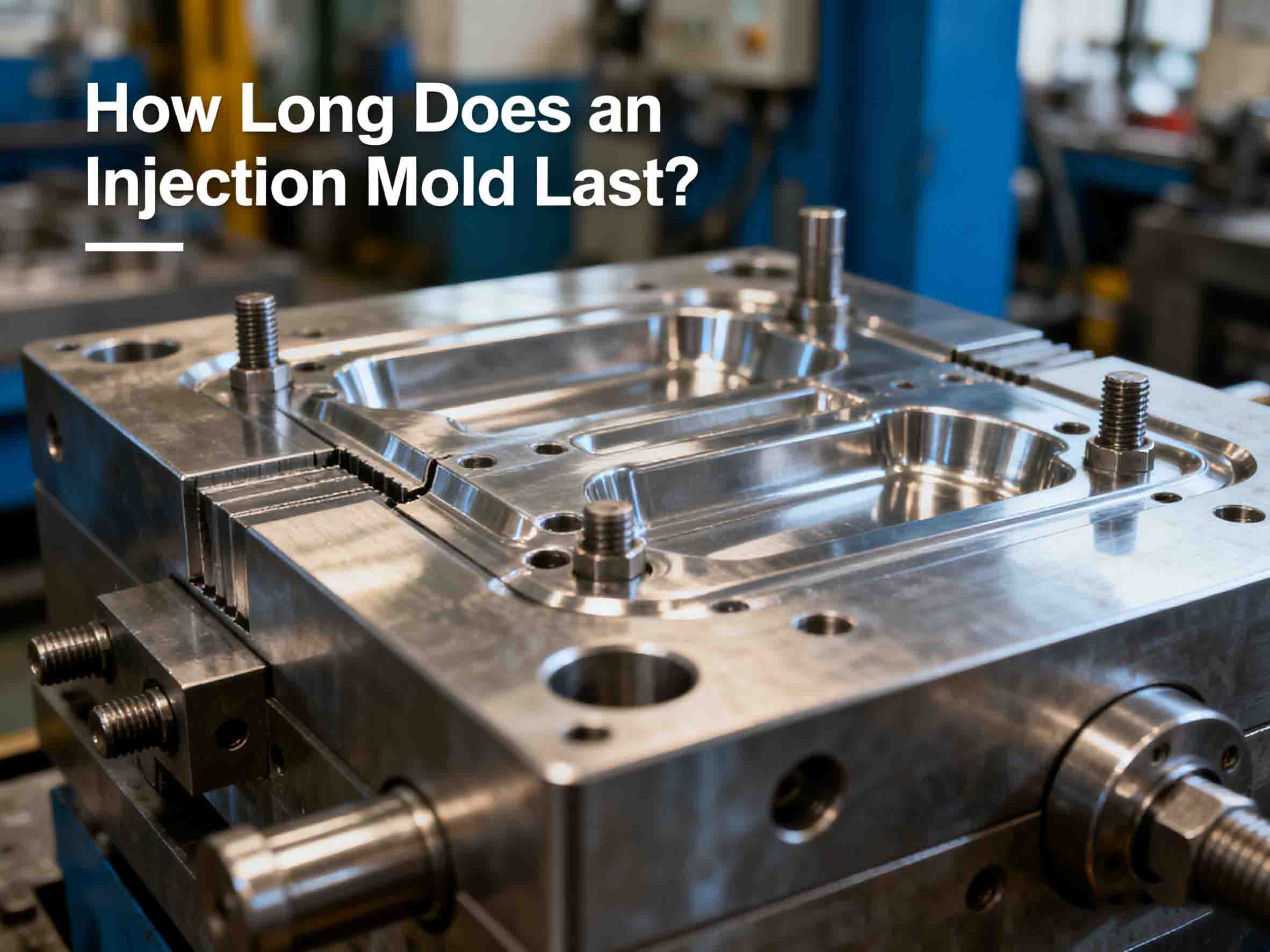

How Long Does an Injection Mold Last?

When it comes to plastic manufacturing, injection molding is one of the most widely used processes. Whether you’re producing car parts, medical components, toys, or packaging, injection molding delivers consistent quality and efficiency. But one common question manufacturers and product developers ask is: “How long does an injection mold last?”

This is a critical question because injection molds are expensive assets. Their lifespan directly impacts your production costs, product quality, and long-term ROI. The good news is that with the right design, materials, and maintenance, molds can last for many years and produce millions of parts. In this article, we’ll break down the factors that affect mold life, typical mold lifespans, tips to extend durability, and what you can expect from different mold grades.

What Is an Injection Mold?

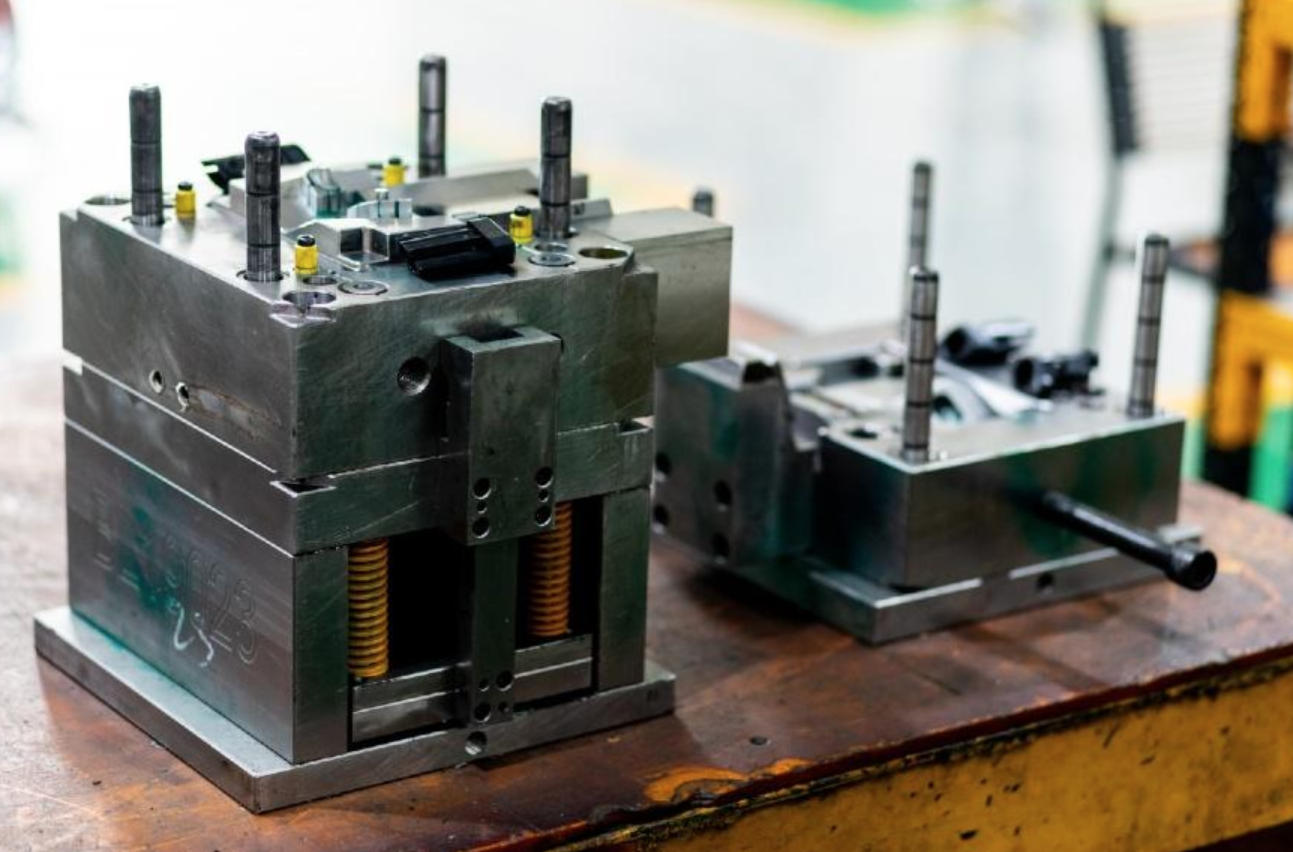

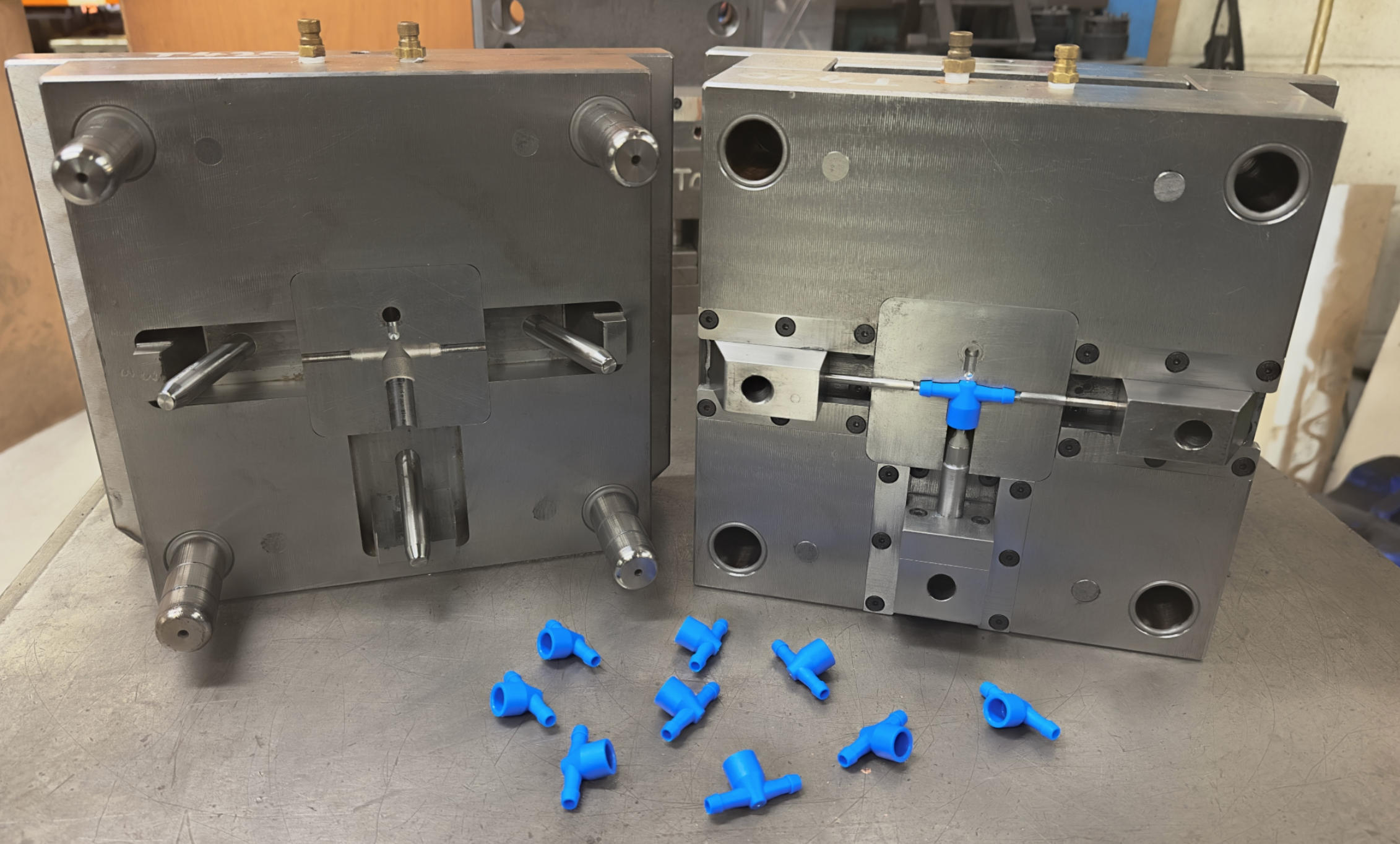

An injection mold is a precision tool made from steel or aluminum that shapes molten plastic into specific parts. The mold typically has two halves — the core and the cavity — that clamp together during the molding process. Molten plastic is injected into the mold, cooled, and then ejected as a finished product.

Because molds go through constant cycles of high pressure, heat, and stress, their durability is a major concern. Unlike cheaper tooling processes, injection molds are designed for long-term use — but how long they last depends on several factors.

Average Lifespan of an Injection Mold

The lifespan of an injection mold varies widely, depending on design quality, materials used, and how well it’s maintained. On average:

• Prototype Aluminum Molds: 500 – 10,000 cycles

• Low-Volume Production Molds: 10,000 – 100,000 cycles

• High-Volume Steel Molds: 500,000 – 1,000,000+ cycles

Some molds have been known to last for 5 million cycles or more when properly engineered and maintained.

Here’s a general breakdown:

Mold Type	Typical Lifespan	Usage Example
Aluminum Prototype Mold	500 – 10,000 shots	Testing parts, low-volume runs
Pre-Hardened Steel Mold (P20, 718)	100,000 – 500,000 shots	Mid-volume production
Hardened Steel Mold (H13, S7)	1,000,000+ shots	Automotive, packaging, electronics
High-Performance Steel with Surface   Treatments	5,000,000+ shots	Extremely high-volume production

Factors That Affect How Long an Injection Mold Lasts

Mold longevity isn’t just about material choice. Several key factors determine how long a mold will remain productive.

1. Mold Material

The type of metal used in mold construction is the most significant factor:

• Aluminum molds are inexpensive and faster to machine but wear out quickly under high pressure.

• Pre-hardened steel molds (like P20 steel) are more durable and commonly used for medium-volume production.

• Fully hardened tool steels (like H13, S7, or stainless steels) offer excellent resistance to wear, heat, and corrosion, making them ideal for millions of cycles.

2. Plastic Material Used

Not all plastics are equal. Some resins are abrasive, filled with glass fibers, or chemically corrosive. These materials cause faster wear and tear on molds. For example:

• Unfilled resins (like PP, PE) are easier on molds.

• Glass-filled nylon or polycarbonate can wear down cavities much faster.

• PVC or flame-retardant materials may cause chemical corrosion.

3. Part Design Complexity

The more complex the part, the more stress the mold endures. Thin walls, undercuts, deep ribs, and multiple moving components (like sliders and lifters) all increase wear.

4. Injection Molding Process Parameters

High injection pressures, extreme temperatures, and long cycle times accelerate mold wear. A mold run gently within recommended limits will last longer than one pushed to extremes.

5. Maintenance and Care

Routine maintenance is essential for mold longevity. Cleaning, lubrication, checking for wear, and replacing worn components (like ejector pins or seals) extend mold life significantly. Neglect, on the other hand, shortens it dramatically.

6. Mold Design Quality

A well-designed mold accounts for cooling, stress distribution, and wear-prone areas. Poor design leads to premature cracking, warping, or mechanical failures.

Mold Classifications and Expected Lifespan

The Society of the Plastics Industry (SPI) provides a mold classification system that helps define expected lifespan.

1. Class 101 Mold

• Highest quality, made from hardened steel

• Built for 1,000,000+ cycles

• Used in high-volume production (e.g., packaging, medical, automotive)

2. Class 102 Mold

• Durable, pre-hardened steel with some hardened inserts

• 500,000 – 1,000,000 cycles

• Ideal for medium-to-high volume

3. Class 103 Mold

• Pre-hardened steel or lower-grade materials

• Up to 500,000 cycles

• General-purpose, medium-volume molds

4. Class 104 Mold

• Lower-grade steel or aluminum

• Up to 100,000 cycles

• Low-volume production

5. Class 105 Mold

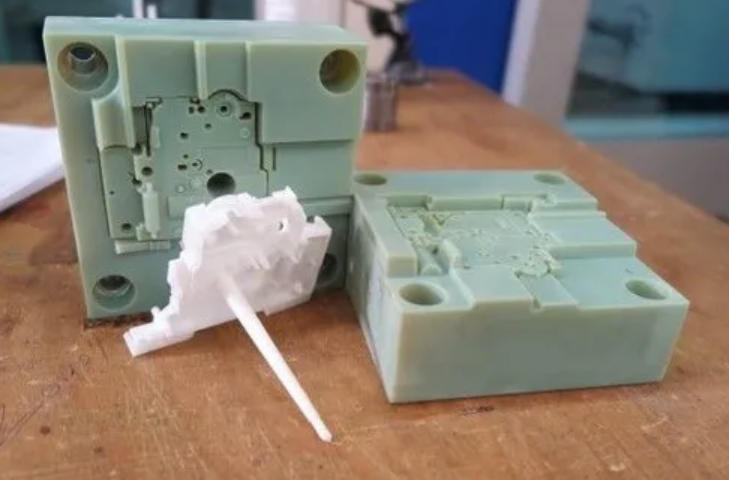

• Prototype molds, often aluminum or soft steel

• Less than 500 cycles

• Used for testing before mass production

How to Extend the Life of an Injection Mold

If you’re investing in an injection mold, you want it to last as long as possible. Here are proven strategies:

1. Choose the Right Mold Material

Don’t cut corners. If your project requires millions of parts, invest in hardened steel upfront instead of saving money with aluminum or soft steel.

2. Optimize the Part and Mold Design

• Reduce unnecessary complexity in part geometry.

• Avoid sharp corners and thin walls that increase mold stress.

• Ensure cooling channels are well-designed to prevent hotspots.

3. Use Protective Coatings

Surface treatments like nitriding, hard chrome plating, or PVD coatings improve resistance to wear and corrosion.

4. Maintain the Mold Regularly

• Clean cavities and runners after every production run.

• Lubricate moving parts.

• Inspect for cracks, wear, or misalignment.

• Store molds properly in a dry, climate-controlled environment.

5. Control Process Parameters

Operate within recommended injection pressures and temperatures. Avoid pushing the mold beyond its designed limits.

Cost vs. Lifespan: Finding the Balance

The decision about which mold type to use often comes down to cost vs. expected lifespan.

• Prototype molds are cheap but wear out quickly.

• Steel molds are expensive but provide decades of service with proper care.

If you only need 5,000 parts, investing in a million-cycle hardened steel mold may not make sense. On the other hand, if you’re planning to produce millions of units over several years, investing in a Class 101 hardened steel mold is the most cost-effective choice in the long run.

Real-World Example

• An automotive manufacturer investing in a hardened H13 steel mold may spend $100,000 upfront. But this mold could last for 10 years and produce 5 million+ parts, making the cost per part extremely low.

• A startup producing 2,000 prototypes might use an aluminum mold costing only $5,000. Even though it wears out quickly, it saves significant upfront investment.

FAQs: Injection Mold Lifespan

Q1: Can a mold last forever?
No. Even the best steel molds eventually wear out due to constant pressure, heat, and abrasion.

Q2: What usually wears out first in a mold?
Common failure points include ejector pins, gates, runners, and cavity surfaces.

Q3: Can molds be repaired?
Yes. Worn areas can be polished, welded, or recoated, which extends mold life.

Q4: How do I know when to replace a mold?
Signs include flashing (plastic leaking from mold edges), part defects, frequent downtime, or cracks in the mold.

Final Thoughts

So, how long does an injection mold last? The answer depends on your needs, the type of mold, the materials processed, and how well you maintain it. Prototype molds might last just a few hundred cycles, while hardened steel molds can produce millions of parts over decades.

The key is finding the right balance between upfront cost and long-term production requirements. With proper design, materials, and maintenance, your injection mold can deliver exceptional performance and value for years to come.
