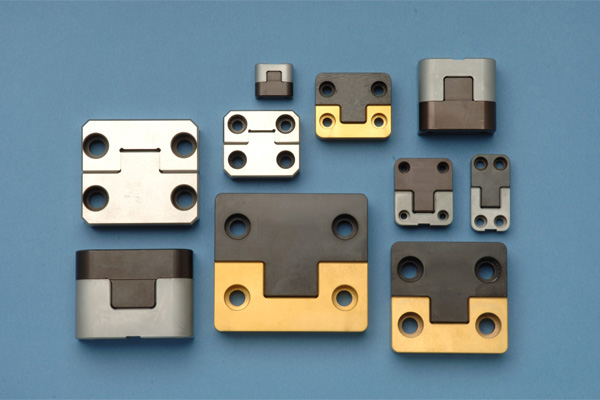

What Is The Parting Line in Injection Molding?

Understanding Its Importance in Mold Design and Product Quality

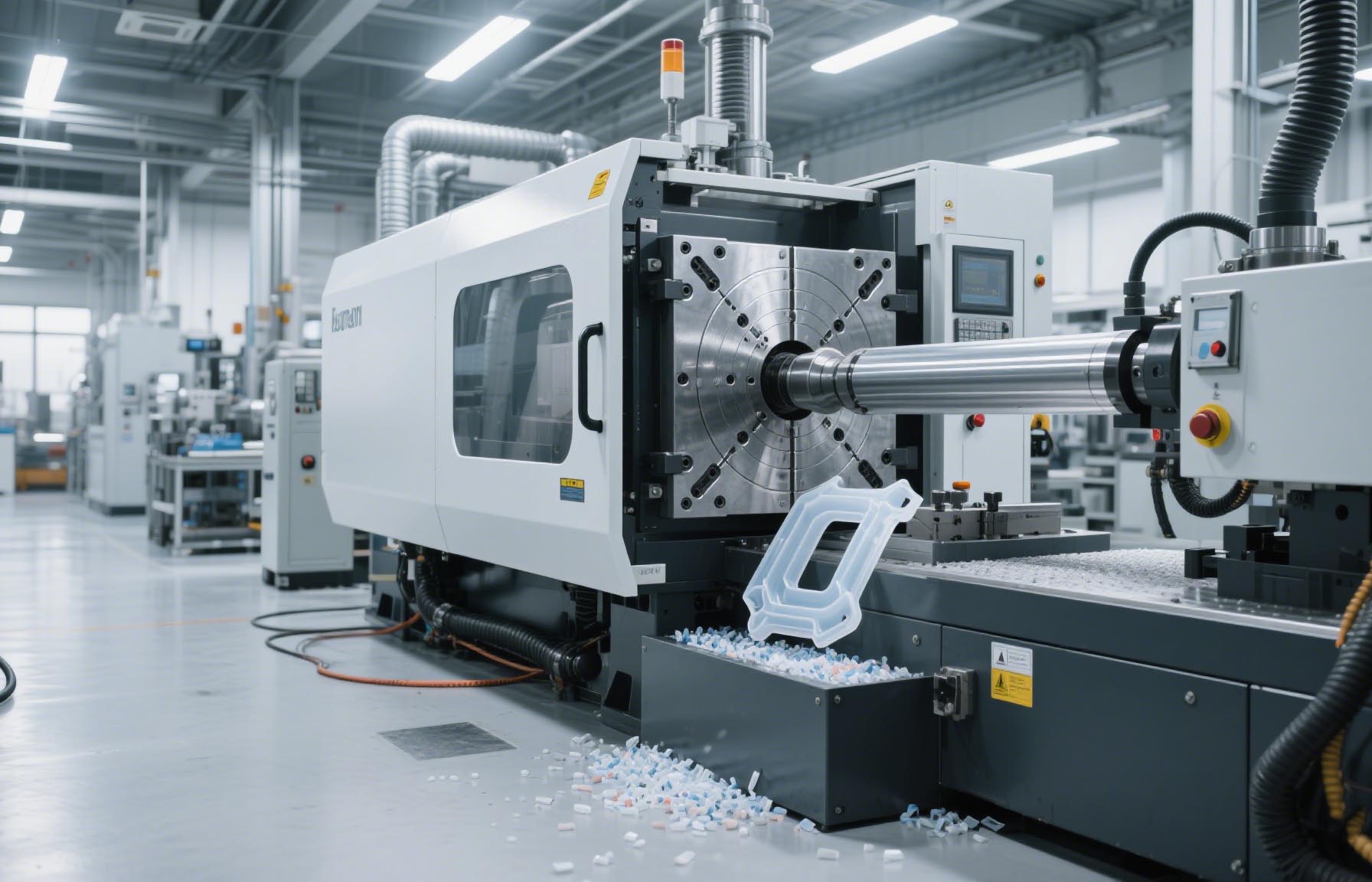

Injection molding is one of the most widely used manufacturing processes for producing plastic components in large volumes. Its ability to deliver high precision, repeatability, and efficiency makes it ideal for countless industries—automotive, electronics, medical, consumer goods, and more. Within this complex process, one critical but often overlooked detail plays a significant role in product aesthetics, function, and manufacturability: the parting line.

In this article, we’ll explore what the parting line is, why it matters, how it's formed, and what designers and engineers need to consider to optimize it.

1. What Is the Parting Line?

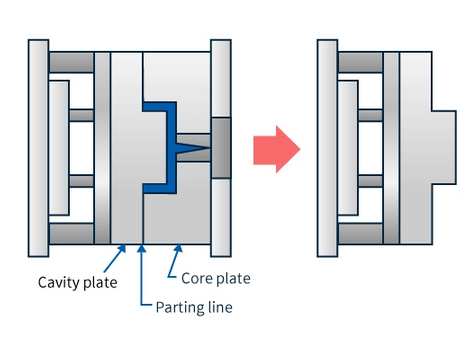

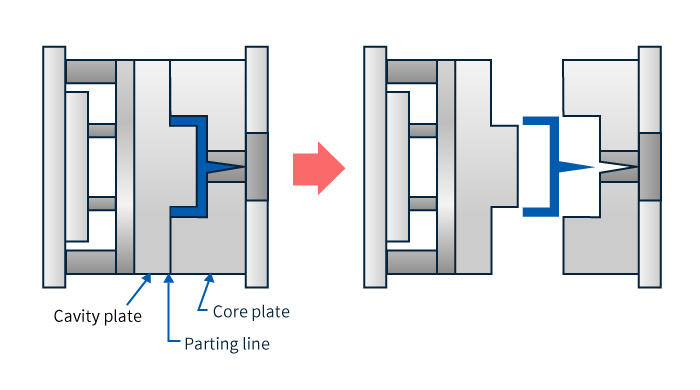

In injection molding, the parting line is the location on a molded part where the two halves of the mold meet and separate. These two halves are known as the core and cavity. When the molten plastic is injected into the mold, it fills the cavity created between these two halves. Once the plastic cools and solidifies, the mold opens along the parting line to eject the finished part.

Because it’s the line where the two sides of the mold come together, the parting line often leaves a visible mark or seam on the surface of the molded part. This line can vary from almost invisible on precision-molded components to very prominent on large or less-precise items.

2. Why the Parting Line Matters

Though it may seem like a minor feature, the parting line has a big impact on:

✦ Aesthetics

A visible parting line can affect the visual appeal of a product. In consumer-facing products like toys, electronics, or automotive interiors, visible seams may be undesirable and require post-processing or polishing.

✦ Functionality

If the parting line appears in a functional area (e.g., sealing surfaces, threads, hinges), it can compromise the integrity or operation of the part. For example, an uneven parting line on a medical device could interfere with assembly or sealing.

✦ Dimensional Accuracy

Flash (excess plastic that seeps between the mold halves at the parting line) can distort the geometry of a part, leading to poor fit or functionality.

✦ Ease of Manufacturing

A strategically placed parting line simplifies mold design, part ejection, and even maintenance. Poorly placed lines can complicate the mold or increase costs due to additional machining or finishing.

3. How the Parting Line Forms

The parting line forms due to the very nature of how injection molds work. A mold must open and close to allow parts to be formed and removed. This necessitates a “split” in the mold—which becomes the parting line.

There are three primary factors that define how and where a parting line appears:

• Mold Design Geometry: The shape of the part and how it is oriented in the mold heavily influence the line’s location.

• Draft Angles: Parts typically require draft angles to help with ejection from the mold. The direction of the draft often determines where the mold will split.

• Core and Cavity Orientation: Designers must decide which side of the mold will have the core and which will have the cavity. This decision impacts the visibility and placement of the parting line.

4. Types of Parting Lines

Different part geometries and mold designs result in different kinds of parting lines. Some common types include:

Flat Parting Line

This is the most basic and easy-to-machine type. It lies along a single flat plane, usually around the widest part of a component. Common in simple boxy shapes or cylindrical parts.

Stepped Parting Line

Used when a part cannot be cleanly divided along a single plane. The line "steps" up or down across the part geometry. More complex to manufacture.

Curved or Irregular Parting Line

These follow complex contours of a part. Often used in highly detailed or decorative components (e.g., toys or intricate housings). Designing and machining these molds is more complex and costly.

Shutoff Parting Line

Used where moving mold sections (such as sliders or lifters) must seal off parts of the mold cavity to prevent flash. Common in undercuts and snap-fit features.

5. Best Practices for Parting Line Placement

Designers and mold engineers must collaborate early in the design phase to ensure the parting line is optimized. Here are some best practices:

✓ Place It Where It’s Less Noticeable

Try to position the line on the underside or back of parts, where it won’t be seen in normal use. For cosmetic parts, hiding it in a shadow line or along a natural feature is best.

✓ Avoid Functional Areas

Do not place parting lines on sealing faces, critical tolerances, or mating surfaces. These areas need to be clean and uniform.

✓ Simplify the Mold

A straight and flat parting line is easier and cheaper to manufacture. If the line must be complex, evaluate if it adds functional or visual value to the product.

✓ Consider Ejection Direction

Ensure the parting line allows for the best ejection direction with minimal force or potential damage to the part.

✓ Think Ahead to Secondary Processes

If painting, plating, or printing will be done on the part, ensure the parting line won't interfere or require excessive post-processing.

6. Common Issues Related to Parting Lines

Despite best efforts, parting lines can sometimes create defects or challenges. Here are a few to watch for:

Flash Formation

If the mold halves don’t close properly or there’s wear along the mating surfaces, molten plastic can leak out, forming thin “flashes.” This usually requires trimming or refinishing.

Misalignment

Over time, molds can become misaligned, causing uneven parting lines that affect product appearance and function.

Wear and Tear

The parting surfaces endure significant stress. If not properly maintained, this can result in worn parting lines, leaks, or inconsistent part quality.

7. Real-World Examples

Let’s look at a few real-world applications where parting lines are especially important:

• Medical Syringes: A clean and accurate parting line is essential to ensure proper sealing and patient safety.

• Automotive Panels: Interior plastic parts must align perfectly, and visible parting lines can affect luxury perception.

• Consumer Electronics: Phone cases or remote controls often have parting lines carefully hidden along design elements.

8. Parting Line in CAD and Simulation

Modern CAD tools and simulation software allow engineers to visualize and evaluate the parting line during the design phase. These tools help:

• Automatically suggest optimal parting line placement

• Identify areas where flash or defects are likely

• Visualize mold opening directions and draft requirements

Using these tools early in the design process saves time and avoids costly mold modifications later.

Conclusion

While the parting line in injection molding may seem like a small detail, it plays a critical role in the function, aesthetics, and manufacturability of plastic parts. Understanding its purpose and optimizing its placement is essential for delivering high-quality products.

Engineers, designers, and mold makers must work together to balance function, form, and cost—ensuring that the parting line serves the product rather than hinders it. With the right planning and tools, you can create molded parts that not only perform flawlessly but also look seamless and professional.
