What Materials Are Used for Aluminum Die Casting Molds?

Aluminum die casting is one of the cornerstones of modern manufacturing, responsible for producing millions of lightweight, high-precision components for industries such as automotive, aerospace, electronics, and telecommunications. At the heart of this process lies the die casting mold — a tool that must endure extreme heat, pressure, and repeated thermal cycling as molten aluminum (around 660°C / 1220°F) is injected again and again.

Choosing the right mold material is therefore critical. It directly affects die life, casting quality, and overall production cost.

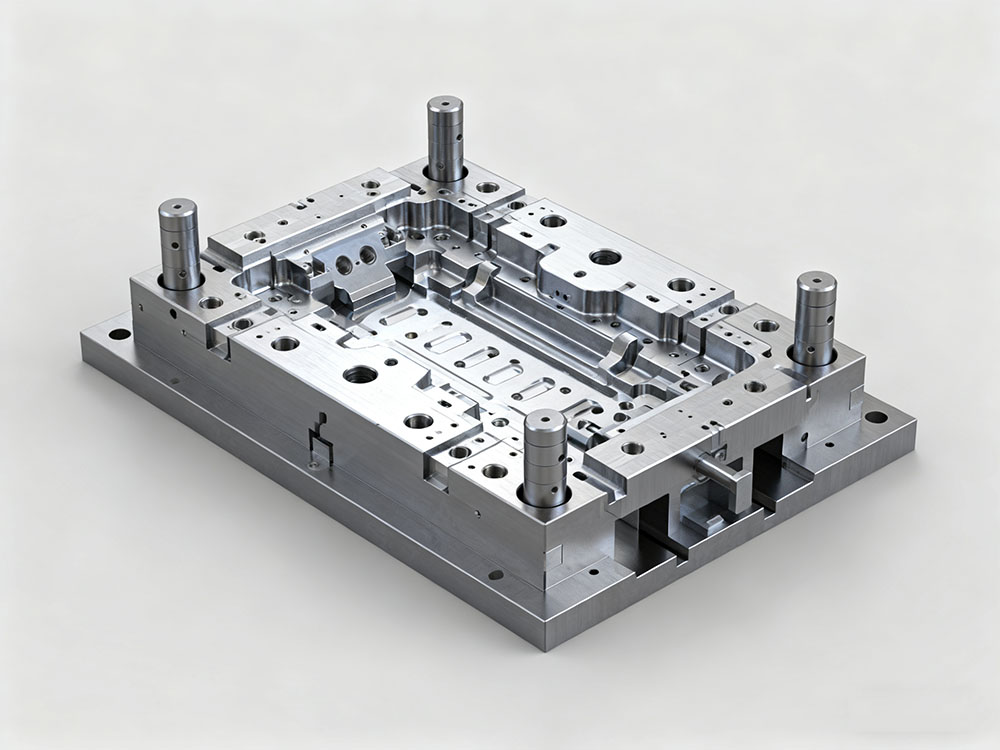

The Industry Standard: Hot-Work Tool Steels

Nearly all aluminum die casting molds are made from hot-work tool steels, a class of materials specifically engineered to retain strength, hardness, and dimensional stability under high temperatures. These steels resist the main causes of die failure — thermal fatigue (heat checking), erosion, and soldering (where molten aluminum sticks to the die surface).

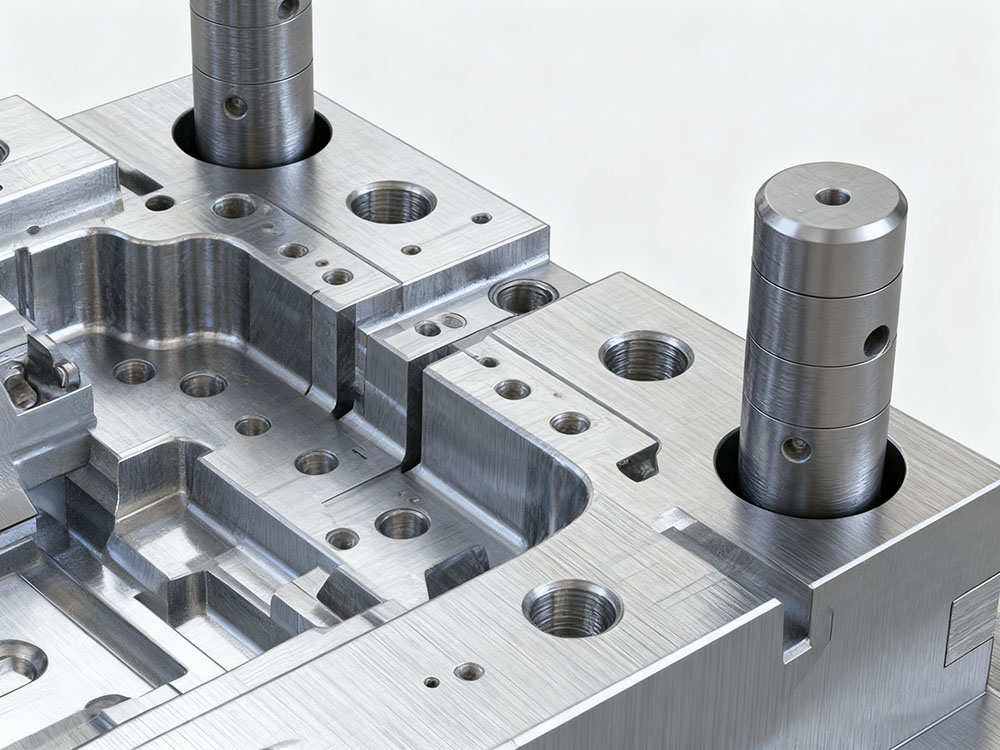

H13 Tool Steel: The Benchmark Material

Among hot-work tool steels, AISI H13 (also known as DIN 1.2344 or JIS SKD61) stands as the industry’s go-to material for aluminum die casting molds. Its widespread use stems from an ideal balance of essential properties:

• Outstanding Thermal Fatigue Resistance:
  During casting, dies undergo repeated heating from molten aluminum and cooling from spray or water channels. These thermal cycles cause surface      stress that can lead to fine cracking (heat checking). H13’s alloying elements — chromium, molybdenum, and vanadium — give it remarkable      resistance to these thermal stresses.

• Excellent Hot Strength and Hardness:
   Even at high temperatures, H13 retains its mechanical integrity, typically operating within the 42–52 HRC hardness range. This prevents deformation      under high injection pressures.

• Good Toughness and Ductility:
   These properties ensure the die can absorb impact and thermal stress without fracturing — a key to preventing catastrophic failure.

• Satisfactory Machinability and Polishability:
   Though not the easiest to machine, H13 allows precise mold geometry and a high-quality surface finish suitable for demanding casting applications.

When properly heat-treated and cooled, H13 molds can achieve lifespans ranging from 50,000 to over 200,000 shots, making it the dependable workhorse of die casting.

Beyond H13: Premium and Modified Tool Steels

While H13 serves most purposes, high-volume or highly demanding applications — such as large automotive structural castings (Giga Castings) — require steels with enhanced properties. Premium tool steels are often derived from H13 chemistry but refined through advanced manufacturing processes like Electro-Slag Remelting (ESR) to improve purity, consistency, and fatigue resistance.

High-Performance H13 Variants

Proprietary grades such as DAC P, ExELL™ H13 PREMIUM, or DAC Magic represent improved versions of standard H13. These variants provide:

• Higher Cleanliness and Structural Uniformity:
  The ESR process minimizes impurities and inclusions, increasing both toughness and thermal fatigue life.

• Improved Thermal Conductivity:
  Some grades are engineered to dissipate heat more efficiently, reducing temperature gradients that contribute to surface cracking.

• Superior Temper Resistance:
  Enhanced stability at elevated operating temperatures prolongs surface hardness and extends die life.

Other Hot-Work Steels

Besides H13, several related steels are occasionally used in aluminum die casting:

• H11: Similar to H13 but with slightly reduced vanadium, offering good toughness but slightly lower thermal fatigue resistance.

• H10, H19, H21: Contain higher tungsten or molybdenum levels for increased hot hardness, though usually at the expense of machinability or toughness. These are less common in mainstream aluminum applications.

Specialized Materials for Extreme Conditions

As manufacturers push for higher output and longer mold life, more specialized materials are used for particularly stressed die components.

Maraging Steels

Maraging steels (such as Grade 300 or 350) are nickel-cobalt-molybdenum alloys known for their ultra-high strength, achieved through age hardening.

• Advantages: Exceptional strength, heat resistance, and fatigue life — sometimes exceeding 500,000 casting cycles. Their high yield strength can also reduce mold mass.

• Disadvantages: High material and heat-treatment costs limit their use to long-run or complex, high-stress dies where durability offsets expense.

Inserts and Secondary Materials: Tungsten Carbide & Copper Alloys

Not every mold component needs to be steel. Critical wear or heat zones are often reinforced with inserts made from other materials:

• Tungsten Carbide:
  Used for high-wear areas like gates, runners, and corners exposed to aggressive metal flow. Offers unmatched hardness and erosion resistance.

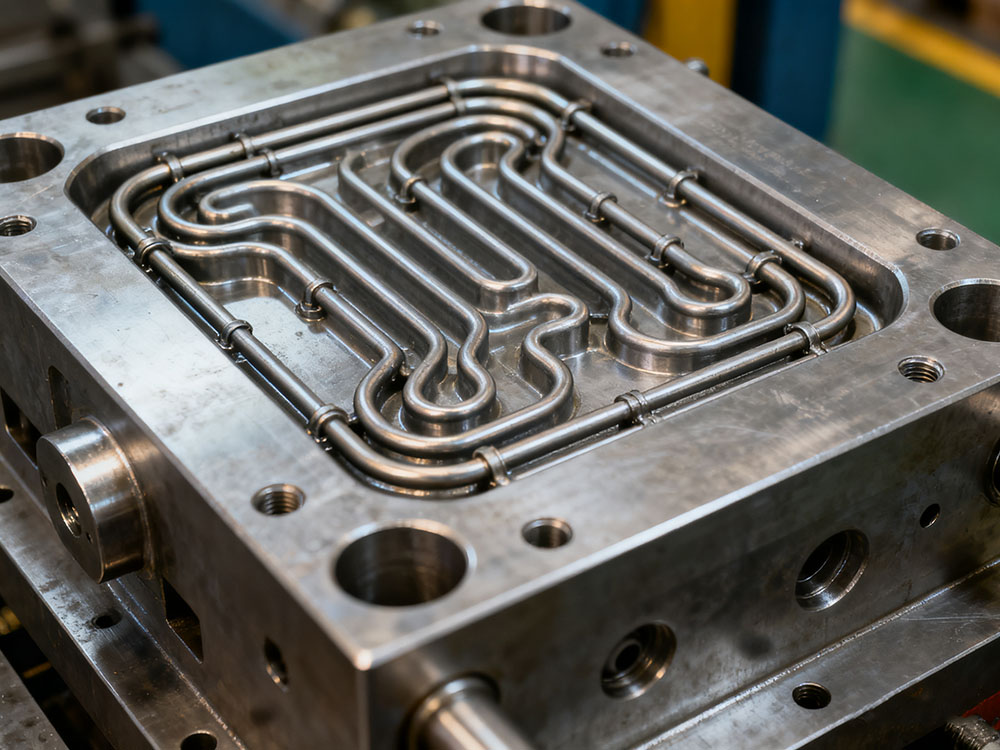

• Copper Alloys:
  Alloys like CuBe (Copper-Beryllium) or CuNiSiCr (Copper-Nickel-Silicon-Chromium) are prized for their exceptional thermal conductivity. They are ideal for core pins or inserts where rapid, localized cooling is needed to improve cycle time and minimize heat checking.

Surface Treatments: Extending Die Life

Even premium steels benefit greatly from surface treatments designed to harden and protect the mold surface from thermal and chemical attack.

• Nitriding:
  Introduces nitrogen into the die surface to form a hard, wear-resistant layer. It enhances erosion and soldering resistance but must be carefully      controlled to avoid brittleness that can worsen heat checking.

• PVD Coatings (Physical Vapor Deposition):
  Thin coatings like TiN, TiAlN, or CrN create an ultra-hard, inert surface that resists sticking and erosion.

• Controlled Oxidation:
  A fine oxide layer can serve as a barrier and natural release agent, improving durability and surface quality.

The Vital Role of Heat Treatment

Regardless of the chosen steel, heat treatment is what truly determines its final performance. The process involves multiple carefully controlled stages — preheating, austenitizing, quenching, and tempering — to achieve the optimal balance of hardness, strength, and toughness.
Improper heat treatment can drastically shorten die life, causing early cracking or deformation, even in the best steels.

Conclusion

Choosing the right material for an aluminum die casting mold is not a one-size-fits-all decision. It’s a careful balance among performance, cost, and production needs.

Key factors include:

• Production Volume: Higher output justifies premium steels or maraging materials.

• Part Geometry and Complexity: Complex dies may require high-conductivity copper inserts.

• Budget Constraints: Upfront material cost must be weighed against expected mold longevity and downtime costs.

• Process Conditions: Molten aluminum temperature, injection pressure, and cycle time all influence material stress and selection.

As metallurgical science and surface engineering continue to advance, manufacturers can now achieve longer-lasting, higher-performing molds than ever before — ensuring aluminum die casting remains one of the most efficient and precise mass-production methods in the modern manufacturing world.
