What is a Hot Runner in Injection Molding?

Injection molding is one of the most widely used manufacturing processes for producing plastic parts with high precision and efficiency. At the heart of this process lies the mold system, which shapes the molten plastic into the desired product. Within the mold, one of the most critical components that influences cycle time, product quality, and overall cost-efficiency is the runner system.

A runner system is responsible for delivering molten plastic from the injection molding machine nozzle to the cavities of the mold. Traditionally, this has been achieved using cold runners, which allow the molten plastic to solidify in channels before being ejected as waste or regrind. However, modern manufacturing often favors hot runner systems, which maintain the plastic in a molten state within heated channels, eliminating or minimizing waste while enabling faster and more consistent production.

This article explores hot runner systems in detail—what they are, how they work, their components, benefits, drawbacks, and applications in today’s manufacturing landscape.

1. The Basics: Runner Systems in Injection Molding

Before diving into hot runners, it is useful to understand the role of runner systems in injection molding.

• Cold Runner System: In a cold runner system, the molten plastic travels through unheated channels cut into the mold, and these channels solidify along with the molded part. After each cycle, the solidified runners are ejected along with the part, creating waste material. While these can sometimes be recycled, it adds extra handling and energy use.

• Hot Runner System: In contrast, a hot runner system keeps the plastic inside the runner channels heated at all times, preventing it from solidifying. This allows continuous delivery of molten plastic to the mold cavities without creating runner waste.

Hot runner technology eliminates material waste, improves part quality, and increases cycle efficiency—making it the preferred option for many high-volume, precision molding applications.

2. What is a Hot Runner?

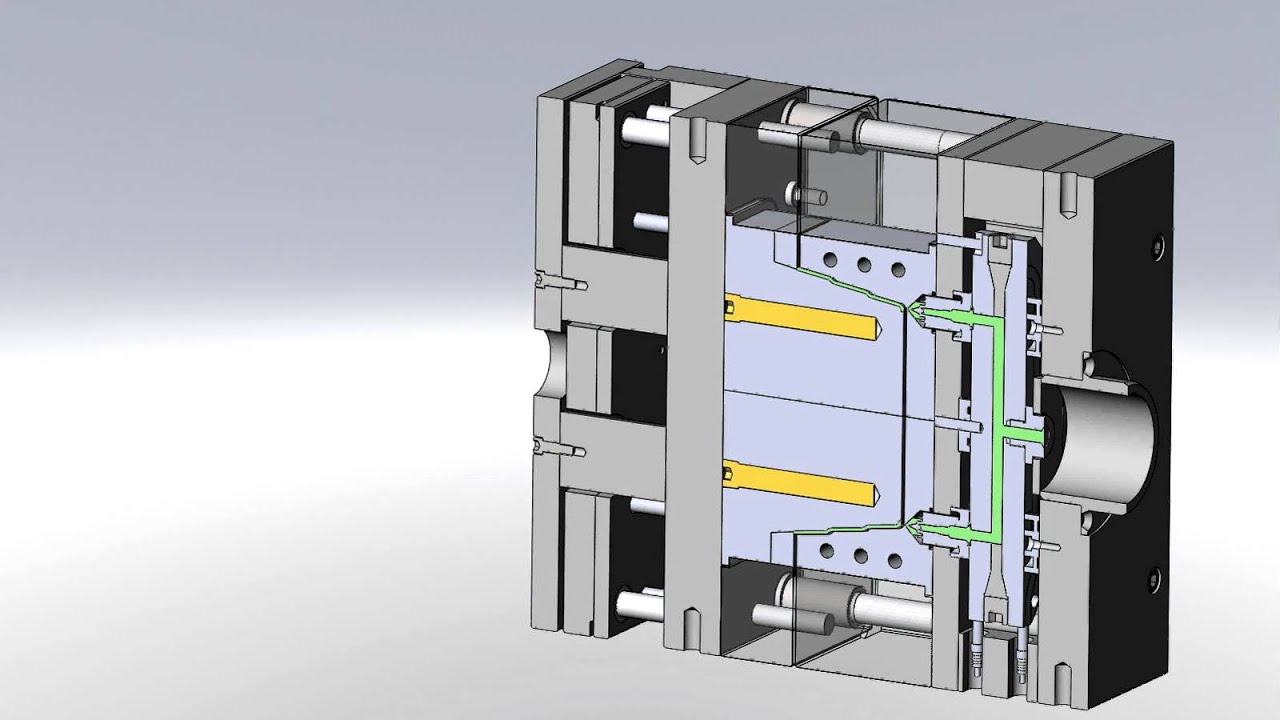

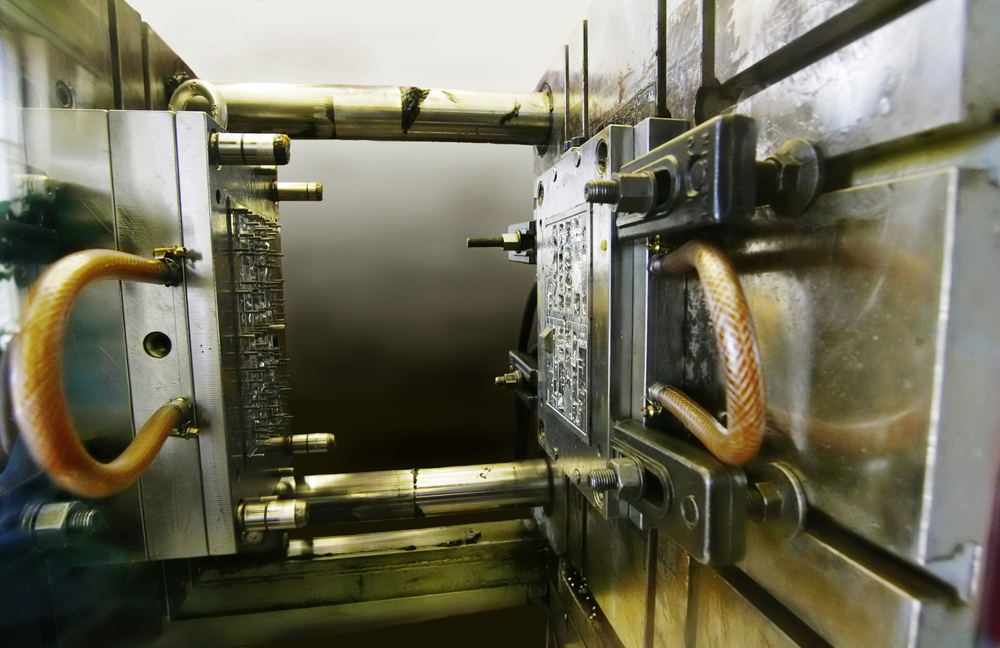

A hot runner in injection molding is a heated manifold and nozzle system that delivers molten plastic directly from the injection unit to the mold cavities while maintaining the resin at the desired melt temperature.

Unlike cold runners, which solidify and must be discarded or recycled, hot runners keep the polymer flowing, enabling:

• Consistent temperature control throughout the runner system.

• No waste material from runner channels.

• Faster cycle times due to reduced cooling and ejection requirements.

Hot runners are installed inside the mold itself and are controlled by external temperature controllers to ensure precise heating.

3. Components of a Hot Runner System

A hot runner system typically includes the following key components:

3.1 Manifold

• The manifold is a heated steel plate that distributes molten plastic from the injection molding machine nozzle to the various nozzles leading to the cavities.

• It maintains uniform melt temperature and pressure balance across all flow channels.

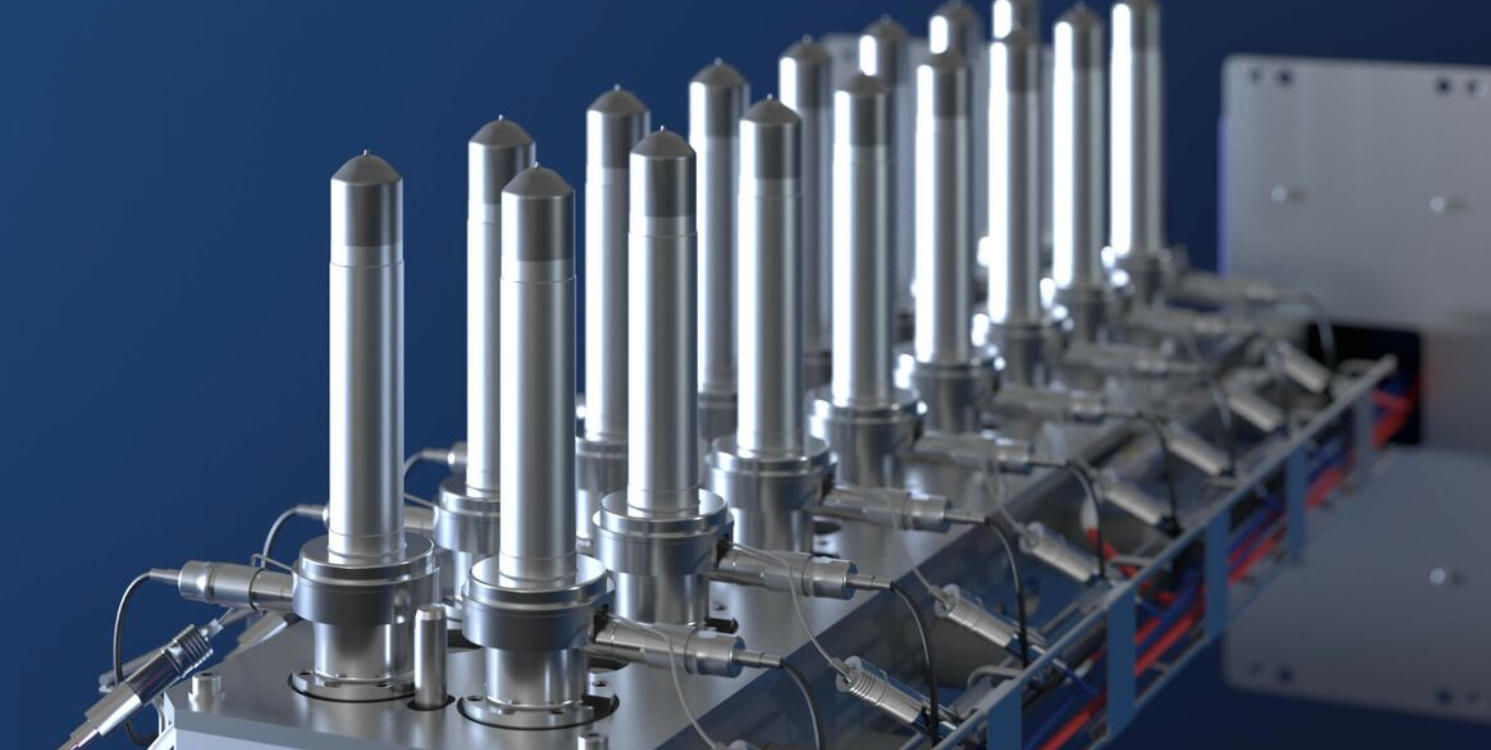

3.2 Nozzles

• Hot runner nozzles deliver molten resin directly into the mold cavities.

• Different nozzle types exist, including open nozzles and valve gate nozzles:

• Open Nozzle: Keeps an open flow path for resin, suitable for less demanding applications.

• Valve Gate Nozzle: Uses a pin or valve to precisely control flow, reducing defects such as drooling, stringing, or gate vestige.

3.3 Heaters and Temperature Sensors

• Cartridge or coil heaters keep the manifold and nozzles at precise operating temperatures.

• Thermocouples monitor and regulate temperature to avoid overheating, degradation, or cold spots.

3.4 Hot Runner Controller

• An external controller that manages the heaters and sensors, ensuring each zone of the hot runner system stays within tight temperature tolerances.

• Advanced controllers allow fine-tuning of individual zones for optimal performance.

4. Types of Hot Runner Systems

Hot runner systems can be broadly divided into two categories:

4.1 Open Hot Runner System

• In an open system, the molten resin flows freely through the nozzle into the cavity.

• Advantages: Simpler, less expensive, and easier to maintain.

• Disadvantages: Less precise, higher risk of stringing, drooling, or visible gate marks.

4.2 Valve Gate Hot Runner System

• In a valve gate system, each nozzle is equipped with a valve pin that opens and closes during injection.

• Advantages: Precise control of resin flow, excellent surface finish, minimal gate marks, and ability to mold larger or more complex parts.

• Disadvantages: More expensive, more complex, and requires advanced control systems.

5. Advantages of Hot Runner Systems

Hot runners have transformed injection molding by providing numerous benefits:

5.1 Material Savings

• No solidified runners mean no scrap material.

• Especially valuable for expensive engineering resins (e.g., PEEK, PC, or specialty nylons).

5.2 Faster Cycle Times

• No runners to cool and eject.

• Molded parts can be produced more quickly, increasing output efficiency.

5.3 Improved Part Quality

• More consistent resin temperature and flow reduces defects like warping, sink marks, or short shots.

• Valve gate systems can also eliminate visible gate vestiges.

5.4 Design Flexibility

• Ability to mold larger parts or multi-cavity molds without worrying about runner balancing.

• Suitable for family molds that produce different part geometries simultaneously.

5.5 Automation-Friendly

• Eliminates the need to separate runners from parts.

• Easier integration with automated systems and robotic handling.

6. Disadvantages and Challenges of Hot Runners

Despite their benefits, hot runner systems also have limitations:

6.1 High Initial Cost

• Hot runner systems are significantly more expensive to design and manufacture compared to cold runners.

• Upfront investment is justified mainly for medium to high production volumes.

6.2 Maintenance Complexity

• Heaters, sensors, and valves require careful maintenance.

• Any malfunction in a hot runner system can lead to costly downtime.

6.3 Sensitivity to Processing Parameters

• Improper temperature control can lead to resin degradation, burn marks, or uneven flow.

• Requires skilled operators and advanced control systems.

6.4 Longer Setup Times

• More complex installation and startup procedures compared to cold runners.

7. Applications of Hot Runner Systems

Hot runners are widely used across industries where high-quality, high-volume plastic parts are needed:

7.1 Automotive

• Bumpers, dashboards, and interior trims.

• Reduces weight and improves dimensional accuracy for large parts.

7.2 Consumer Electronics

• Housings for smartphones, laptops, and appliances.

• Delivers precision and superior surface finishes.

7.3 Packaging

• Caps, closures, and thin-wall containers.

• High-speed production with minimal waste.

7.4 Medical Devices

• Syringes, diagnostic devices, and precision components.

• High-quality standards and reduced contamination risk.

7.5 Household Goods and Toys

• Everyday consumer products requiring efficient, cost-effective production.

8. Hot Runners vs. Cold Runners

Feature	Cold Runner	Hot Runner
Material Waste	Generates solid runners (scrap)	No runner scrap
Initial Cost	Low	High
Cycle Time	Longer (cooling of runners required)	Faster
Part Quality	Gate marks, possible defects	Superior consistency, better finish
Maintenance	Easier	More complex
Best for	Low-volume, simple parts	High-volume, complex or large parts

9. Future Trends in Hot Runner Technology

As injection molding evolves, hot runner technology is also advancing:

9.1 Energy Efficiency

• Development of better insulation and energy-efficient heaters reduces operating costs.

9.2 Smart Monitoring

• Integration of IoT and Industry 4.0 for real-time temperature, pressure, and flow monitoring.

• Predictive maintenance to minimize downtime.

9.3 Sustainable Manufacturing

• Hot runners help reduce material waste, making them environmentally friendly.

• Growing focus on bio-resins and recyclables is pushing hot runner manufacturers to adapt to new materials.

9.4 Miniaturization

• Hot runners are being designed for micro-injection molding applications, especially in electronics and medical devices.

Conclusion

A hot runner system in injection molding is a heated manifold and nozzle system designed to keep plastic molten as it travels from the injection unit to the mold cavity. By eliminating cold runners, hot runners provide significant advantages such as material savings, faster cycle times, better part quality, and improved design flexibility.

Although they come with higher upfront costs and require more maintenance expertise, hot runners are the go-to choice for industries demanding high-volume, precise, and efficient plastic production.

From automotive to medical devices, hot runner systems are shaping the future of injection molding by making it faster, cleaner, and more sustainable. As technology continues to advance, hot runners will become even more sophisticated, ensuring their place as a cornerstone of modern plastic manufacturing.
