How to Choose the Right Material for Your Injection Molding Project?

Injection molding is one of the most widely used manufacturing processes for producing plastic parts. From consumer goods to automotive components, the versatility of injection molding has made it a popular choice for a range of industries. However, selecting the right material for an injection molding project is one of the most critical decisions that can influence product performance, manufacturing costs, and overall project success.

Choosing the best material requires careful consideration of various factors, including mechanical properties, cost, ease of processing, and the intended application of the part. This article will guide you through the factors to consider when selecting a material for your injection molding project.

Table of Contents

1. Why Material Selection is Crucial in Injection Molding

2. Key Factors to Consider When Choosing an Injection Molding Material

3. Common Injection Molding Materials

4. Step-by-Step Guide to Choosing the Right Material

5. Common Mistakes to Avoid in Material Selection

Why Material Selection is Crucial in Injection Molding

The right material can significantly impact the success of an injection molding project. A well-chosen material ensures that the part meets performance requirements while maintaining cost-effectiveness and manufacturability. On the other hand, selecting the wrong material can lead to performance failures, excessive production costs, delays, and even part rejection.

When selecting the material for your injection molding project, the properties of the material must align with the specific requirements of the end-use application. A material that works for one project may not be suitable for another, depending on factors like strength, temperature resistance, environmental exposure, and more.

Key Factors to Consider When Choosing an Injection Molding Material

1. Mechanical Properties

The mechanical properties of a material play a significant role in how well it will perform under stress. Common mechanical properties to consider include:

• Tensile Strength: The ability of a material to resist stretching or pulling forces. Materials with high tensile strength are ideal for parts that will undergo tension or deformation.

• Impact Resistance: The ability of the material to withstand sudden forces or impacts without breaking. This is crucial for parts exposed to rough handling or environmental stresses.

• Flexural Strength: The material's ability to resist deformation when a bending force is applied. Important for parts that will experience bending or flexing during use.

• Hardness: The resistance of a material to surface indentation, which is essential for products exposed to wear and tear.

2. Thermal Properties

Thermal properties are another critical aspect of material selection, particularly for parts that will be exposed to high or fluctuating temperatures. Key thermal properties include:

• Heat Deflection Temperature (HDT): The temperature at which the material will deform under a specified load. This is crucial for parts exposed to high temperatures.

• Melting Temperature: For thermoplastic materials, this is the temperature at which the material transitions from solid to liquid. It impacts the processing temperature during injection molding.

• Coefficient of Thermal Expansion (CTE): The rate at which a material expands with temperature changes. Materials with a low CTE are ideal for parts that need to maintain dimensional accuracy across a wide temperature range.

3. Chemical Resistance

Chemical resistance is an essential factor to consider for parts exposed to harsh chemicals, oils, solvents, or acids. The material should be compatible with the environment it will operate in. Consider the following:

• Resistance to Corrosion: Materials used in environments with exposure to corrosive substances need to be highly resistant to degradation.

• Resistance to Solvents: In some applications, parts may come into contact with various solvents or fuels. Choosing materials resistant to these chemicals is essential to ensure durability.

• Water Absorption: Materials that absorb water can undergo dimensional changes and weaken over time, so low water absorption is an important property for many applications.

4. Environmental Resistance

Environmental factors such as UV exposure, humidity, and outdoor conditions can cause materials to degrade over time. To ensure that your parts maintain their integrity, consider:

• UV Resistance: For parts exposed to sunlight, choosing a material that resists UV degradation (such as UV stabilizers) is important for longevity.

• Weatherability: Materials should be able to withstand a range of environmental conditions, including changes in temperature, moisture, and salt exposure.

• Flame Retardance: In some industries, flame-resistant materials are required, particularly for automotive, aerospace, and electrical applications.

5. Aesthetic and Surface Finishing

Sometimes, the visual appearance of the molded part is just as important as its performance. Materials that allow for good surface finishing and colorability are essential for parts that require high-quality aesthetics. Consider the following:

• Colorability: Some materials allow for easier dyeing or pigment inclusion than others. If color is important, choose a material that can easily be colored during or after molding.

• Surface Texture: Certain materials provide better molding surface finishes, including glossy or matte textures. This is important in consumer goods, automotive interior parts, and appliances.

• Scratch Resistance: The ability of a material to resist scratching and scuffing is crucial for parts exposed to frequent handling.

6. Cost and Availability

While selecting the ideal material based on performance characteristics is important, the cost and availability of the material must also be considered. Factors to consider include:

• Material Cost: Different materials come with varying price tags. High-performance materials might be more expensive, so you must balance material cost against the project budget.

• Availability: Some materials may be less readily available or harder to source, leading to potential delays or higher costs.

• Supply Chain Stability: Materials with volatile prices or limited sources can increase the risk of project delays and cost overruns.

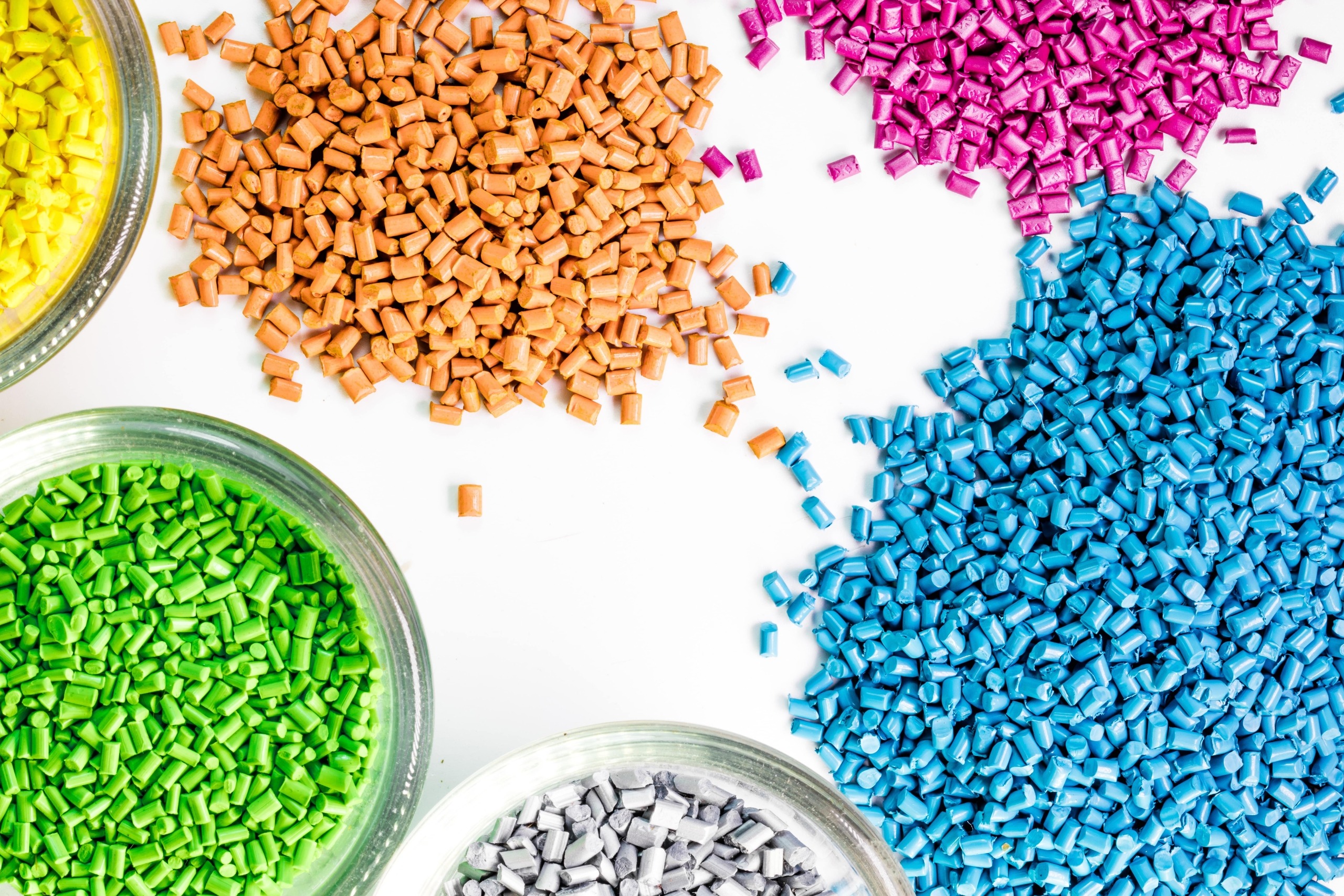

Common Injection Molding Materials

There are three main categories of materials used in injection molding: thermoplastics, thermosets, and elastomers. Each material category has distinct characteristics and applications.

1. Thermoplastics

Thermoplastics are the most common materials used in injection molding. They become soft when heated and solidify when cooled, making them ideal for injection molding. Some of the most commonly used thermoplastics include:

• Polypropylene (PP): Known for its chemical resistance, lightweight properties, and low cost.

• Acrylonitrile Butadiene Styrene (ABS): Popular in automotive and consumer electronics due to its strength and impact resistance.

• Polyethylene (PE): Known for its low friction and chemical resistance, making it ideal for packaging and containers.

• Polycarbonate (PC): Offers high impact strength and heat resistance, used in applications like eyewear lenses and automotive parts.

• Nylon (PA): Strong, durable, and resistant to wear and tear, used for mechanical and automotive parts.

2. Thermosets

Thermosetting plastics undergo a chemical change when heated and molded, making them permanently hard and resistant to further melting. Common thermoset materials include:

• Epoxy: Used for applications requiring high strength and adhesion.

• Phenolic: Offers heat resistance and durability, commonly used in electrical components and automotive parts.

• Melamine: Used in the manufacturing of dinnerware and laminated materials.

3. Elastomers

Elastomers are flexible, rubber-like materials with the ability to return to their original shape after stretching. They are ideal for parts requiring flexibility and resilience, such as seals and gaskets. Some elastomers used in injection molding include:

• Thermoplastic Elastomer (TPE): A versatile material combining the characteristics of rubber and thermoplastics.

• Silicone: Highly flexible, heat-resistant, and often used in medical and food applications.

Step-by-Step Guide to Choosing the Right Material

Selecting the ideal material for your injection molding project can be simplified into a step-by-step process:

Step 1: Define the Part's Functional Requirements

• What performance characteristics are needed? (Strength, flexibility, chemical resistance)

• Will the part be exposed to high temperatures or harsh chemicals?

• Does the part need to maintain dimensional stability under stress?

Step 2: Evaluate Material Properties

• Review the mechanical, thermal, and chemical properties of  potential materials. Choose one that meets or exceeds the required performance standards for the application.

Step 3: Consider Manufacturing Constraints

• Ensure the material is compatible with the injection molding process.

• Consider factors such as material availability, processing temperature, and moldability.

Step 4: Analyze Cost and Budget Constraints

• Balance performance characteristics with material cost.

• Consider long-term costs, such as maintenance, durability, and potential failure costs.

Common Mistakes to Avoid in Material Selection

• Ignoring long-term performance: Focusing only on initial cost rather than performance over time can lead to failure or higher maintenance costs.

• Overlooking processing challenges: Ensure that the selected material is easy to process with existing equipment.

• Inadequate testing: Always test the material in prototype runs before full-scale production to ensure it meets all requirements.

Conclusion

Choosing the right material for your injection molding project is a critical step in ensuring that the final product performs well and meets all design specifications. By considering factors such as mechanical properties, thermal resistance, chemical compatibility, and cost, manufacturers can make informed decisions that optimize both the quality and profitability of their products.

Remember, no material is perfect for every application, so a careful evaluation of your project’s requirements, combined with expert advice, will guide you to the most suitable choice.

If you have any questions or need further clarification on material selection for injection molding, feel free to reach out to us for more insights.
