What Is Compression Injection Molding?

In the manufacturing world, innovation often comes from combining the best features of existing technologies. Compression injection molding is a prime example of this principle. By merging the strengths of both injection molding and compression molding, this hybrid process delivers unique benefits for producing high-quality, dimensionally accurate, and mechanically strong parts.

If you work in automotive, aerospace, electronics, or consumer goods manufacturing—or simply want to understand advanced molding techniques—compression injection molding is worth exploring.

This article will explain what compression injection molding is, how it works, its benefits and limitations, common applications, materials used, and factors to consider when choosing this process.

1. Understanding Compression Injection Molding

Compression injection molding (CIM) is a hybrid molding process that combines the high-speed, high-precision material delivery of injection molding with the part-quality advantages of compression molding.

In traditional injection molding, molten plastic is injected into a fully closed mold under high pressure, filling the cavity completely before cooling. In compression molding, a pre-measured amount of material is placed in an open mold, and then the mold is closed to compress the material into shape.

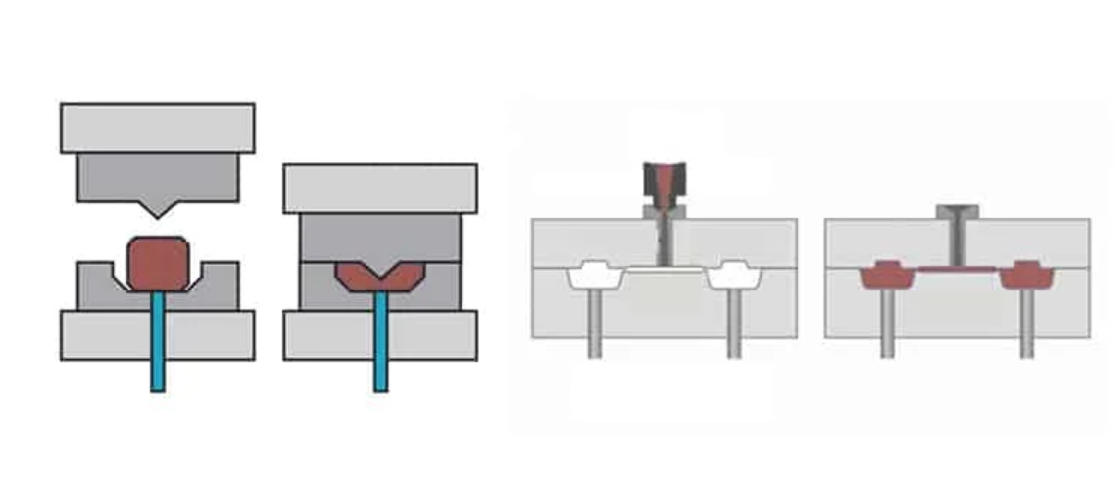

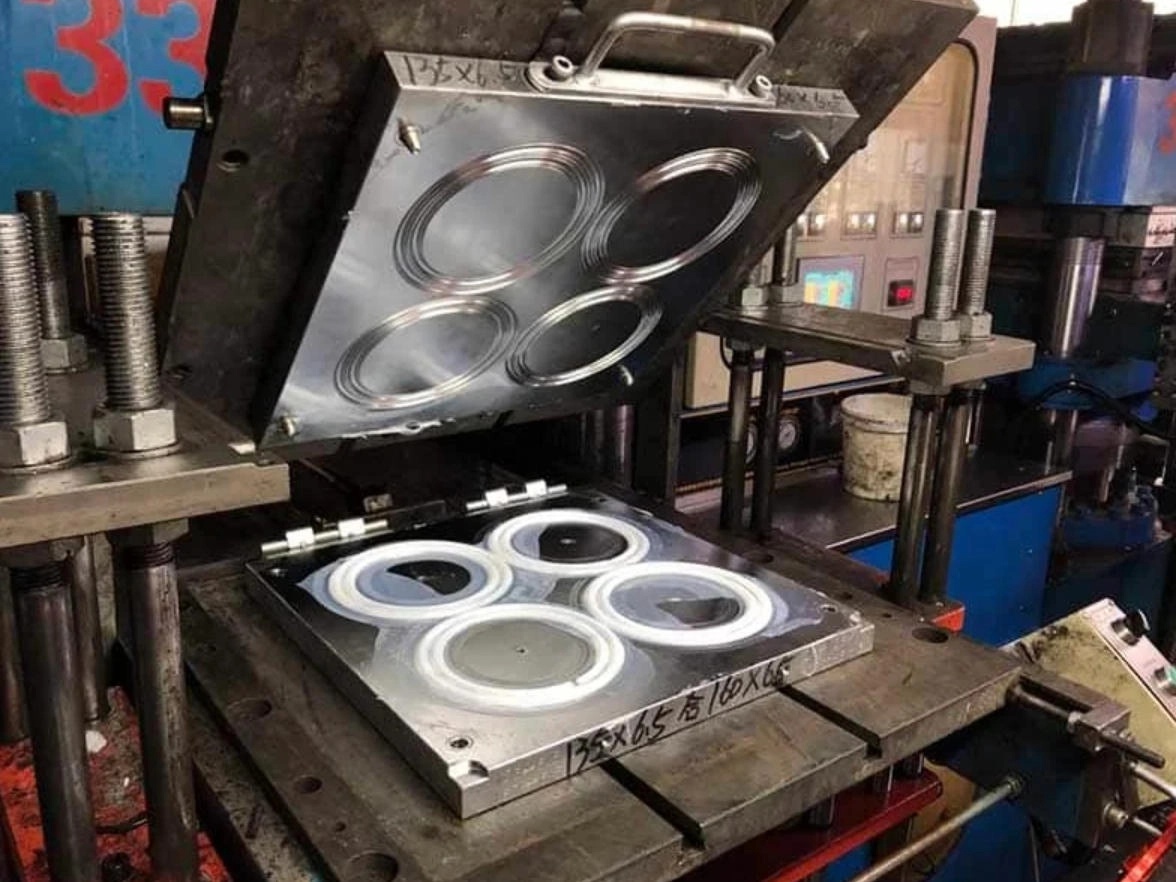

Compression injection molding merges these steps:

• The mold is partially open during injection, allowing material to enter with less resistance and stress.

• Once the material is injected, the mold closes fully, compressing the material to achieve the final shape and tolerances.

This two-stage molding action allows manufacturers to produce parts with:

• Reduced internal stresses

• Improved fiber alignment (in composites)

• More consistent thickness

• Better surface finish

It is widely used when high structural integrity and dimensional precision are needed, especially for fiber-reinforced composites.

2. How the Compression Injection Molding Process Works

While variations exist depending on the machine and material, the general CIM process follows these steps:

Step 1: Mold Preparation

The mold is pre-heated if necessary (especially for thermosets or composite materials) to improve flow and curing. The mold is positioned slightly open—this is sometimes called the “compression gap.”

Step 2: Material Injection

Molten material (thermoplastic or thermoset) is injected into the cavity through the sprue and runner system, but since the mold is partially open, the material enters with lower injection pressure than in conventional injection molding.

Step 3: Mold Compression

Once the initial charge of material is inside, the mold closes to its final position, compressing the material and ensuring complete cavity filling. This compression step also helps:

• Eliminate voids or weld lines

• Improve surface finish

• Ensure uniform fiber distribution (for reinforced materials)

Step 4: Cooling or Curing

For thermoplastics, the mold is cooled to solidify the part. For thermosets or composites, heat is applied to cure the resin. This stage ensures the part reaches its final mechanical strength.

Step 5: Part Ejection

Once solidified or cured, the mold opens fully, and ejector pins (or a manual system) remove the part.

3. Materials Used in Compression Injection Molding

The process works with a range of materials, but it is particularly suited for fiber-reinforced materials and thermosets.

Common Materials:

• Thermoplastics

• Polypropylene (PP)

• Polyamide (Nylon, PA6, PA66)

• Polycarbonate (PC)

• ABS

• Thermosets

• Epoxy resins

• Phenolic resins

• Unsaturated polyester resins

• Fiber-Reinforced Composites

• Glass fiber reinforced thermoplastics (GF-TP)

• Carbon fiber reinforced thermoplastics (CF-TP)

• Sheet molding compound (SMC)

• Bulk molding compound (BMC)

The choice of material depends on the part's strength, thermal resistance, chemical resistance, and dimensional stability requirements.

4. Key Advantages of Compression Injection Molding

Manufacturers choose compression injection molding for its ability to combine speed, quality, and structural performance.

4.1 Reduced Internal Stress

Because the mold is partially open during injection, the molten material experiences lower shear and injection pressure. This reduces residual stress, improving part strength and dimensional stability.

4.2 Enhanced Fiber Orientation

In fiber-reinforced materials, the compression stage helps fibers align more uniformly, improving mechanical properties and reducing weak points.

4.3 Improved Surface Finish

The compression action can push the material into fine mold details and eliminate visible defects such as weld lines, sink marks, and voids.

4.4 Uniform Wall Thickness

The combination of injection and compression ensures that even complex, large-area parts have consistent thickness, reducing warpage and improving fit.

4.5 Lower Clamp Force Requirement

Since injection happens with the mold partially open, peak clamping force requirements are reduced—this allows for smaller, less expensive molding machines.

5. Limitations of Compression Injection Molding

While CIM offers many benefits, it's not ideal for every application.

5.1 Equipment Complexity

Machines capable of precise partial-opening control and synchronized injection/compression cycles are more complex and expensive than standard injection molding machines.

5.2 Cycle Time Considerations

Although injection is fast, the compression and curing/cooling stage can extend cycle times compared to high-speed injection molding.

5.3 Material Limitations

Some very low-viscosity thermoplastics may not benefit significantly from the compression stage. Additionally, certain heat-sensitive materials may degrade if the mold heating stage is not controlled properly.

5.4 Design Constraints

Part designs that require extreme undercuts or highly complex geometries may still require secondary operations or alternative molding processes.

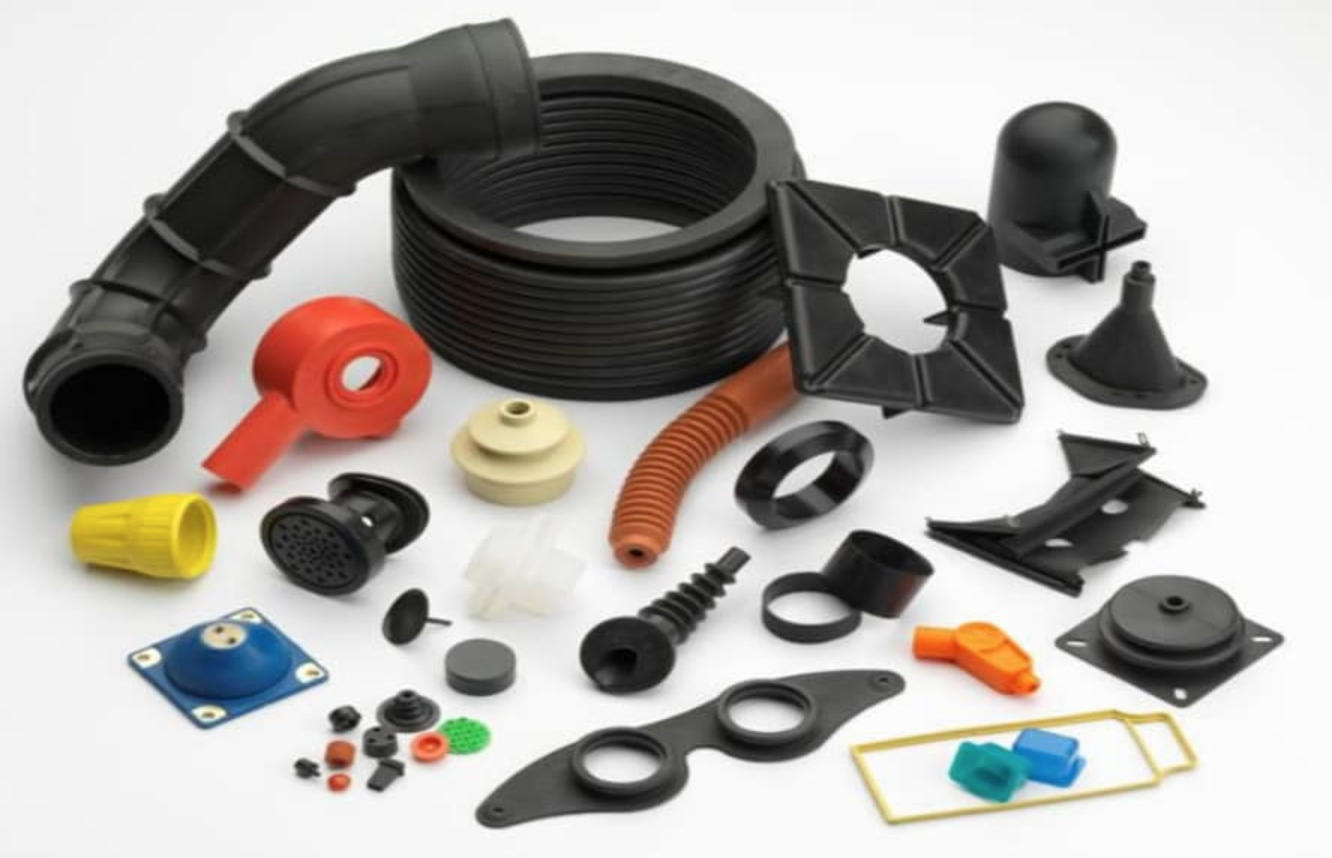

6. Applications of Compression Injection Molding

CIM's unique characteristics make it well-suited for industries where strength, dimensional accuracy, and surface finish are critical.

6.1 Automotive Industry

• Bumper beams

• Instrument panels

• Structural brackets

• Door panels,

Lightweight fiber-reinforced parts help reduce vehicle weight and improve fuel efficiency.

6.2 Aerospace and Defense

• Interior panels

• Structural supports

• Composite fairings

Here, CIM is used for high-performance composites that withstand  temperature and load variations.

6.3 Electronics and Electrical

• Circuit breaker housings

• Insulating covers

• Switchgear components

Thermoset materials molded via CIM offer excellent dielectric properties and heat resistance.

6.4 Consumer Products

• Sporting goods (e.g., tennis rackets, bicycle components)

• High-end luggage shells

These parts benefit from the process's ability to produce lightweight yet strong shells with excellent finishes.

7. Compression Injection Molding vs. Traditional Injection Molding

Feature	Traditional Injection Molding	Compression Injection Molding
Injection Pressure	High	Lower during initial injection
Mold Closure	Fully closed during injection	Partially open during injection, then compressed
Stress in Parts	Higher	Lower
Fiber Orientation	Less uniform	More uniform
Surface Finish	Good, but can show weld lines	Excellent, fewer weld lines
Equipment Cost	Lower	Higher due to specialized controls
Cycle Time	Usually shorter	Slightly longer

8. Process Optimization Tips

Manufacturers can improve CIM outcomes by focusing on process control and mold design:

• Precise Mold Gap Control
       The partial-open gap must be consistent to ensure repeatable quality.

• Optimized Injection Speed
       Too fast can cause flash; too slow may cause incomplete filling.

• Temperature Management
       Maintain stable mold and material temperatures to prevent defects.

• Compression Speed Control
       Smooth, controlled compression prevents trapped air and surface      imperfections.

• Material Conditioning
       Dry materials when required to avoid voids or bubbles.

9. The Future of Compression Injection Molding

With growing demand for lightweight composites in automotive, aerospace, and renewable energy industries, compression injection molding is expected to see wider adoption.

Advances in multi-material molding, automation, and real-time process monitoring are making CIM more cost-effective and precise. In addition, recycled fiber-reinforced materials could benefit from CIM’s ability to handle shorter fiber lengths while maintaining structural integrity.

Conclusion

Compression injection molding represents a powerful evolution in molding technology, combining the precision and speed of injection molding with the quality and strength advantages of compression molding. By carefully controlling both the injection and compression stages, manufacturers can produce parts that are lighter, stronger, and more dimensionally stable—qualities increasingly important in modern manufacturing.

While it requires specialized equipment and slightly longer cycle times, its ability to produce defect-free, high-performance parts makes it a compelling choice for industries ranging from automotive to aerospace.

In a manufacturing landscape that values efficiency, performance, and quality, compression injection molding stands as a prime example of how hybrid processes can push the boundaries of what’s possible.
