EPDM Injection Molding: A Complete Guide

• What Is EPDM?

• What Is EPDM Injection Molding?

• The EPDM Injection Molding Process

• Why Use Injection Molding for EPDM?

• Common Applications of EPDM Injection Molded Parts

• Design Considerations for EPDM Injection Molding

• Challenges in EPDM Injection Molding

• EPDM vs. Other Elastomers in Injection Molding

EPDM injection molding is a specialized technique used to produce durable and flexible rubber components from EPDM (Ethylene Propylene Diene Monomer) material. This process is widely used across various industries-automotive, construction, electrical, and consumer goods-thanks to EPDM’s outstanding resistance to weather, ozone, heat, and aging.

In this article, we’ll explore what EPDM is, why it’s used in injection molding, how the process works, and what advantages it offers over other rubber molding methods.

What Is EPDM?

EPDM is a type of synthetic rubber made primarily from ethylene, propylene, and a diene comonomer. It is known for its exceptional resistance to UV light, ozone, water, and extreme temperatures, making it ideal for outdoor and high-performance applications.

Key Properties of EPDM:

• Temperature resistance: -40°C to +150°C (short-term up to 180°C)

• Excellent weatherability and ozone resistance

• Good electrical insulation

• High flexibility and elasticity

• Resistant to polar substances (e.g., water, alcohol, ketones)

• Low density, making it lightweight

These properties make EPDM a top choice for parts exposed to harsh environmental conditions.

What Is EPDM Injection Molding?

EPDM injection molding is a manufacturing process where EPDM rubber is heated, pressurized, and injected into a mold cavity to form desired shapes and parts. It combines the material performance of EPDM with the efficiency and precision of injection molding.

The process is similar to plastic injection molding but adapted to accommodate the flow characteristics and curing requirements of rubber materials.

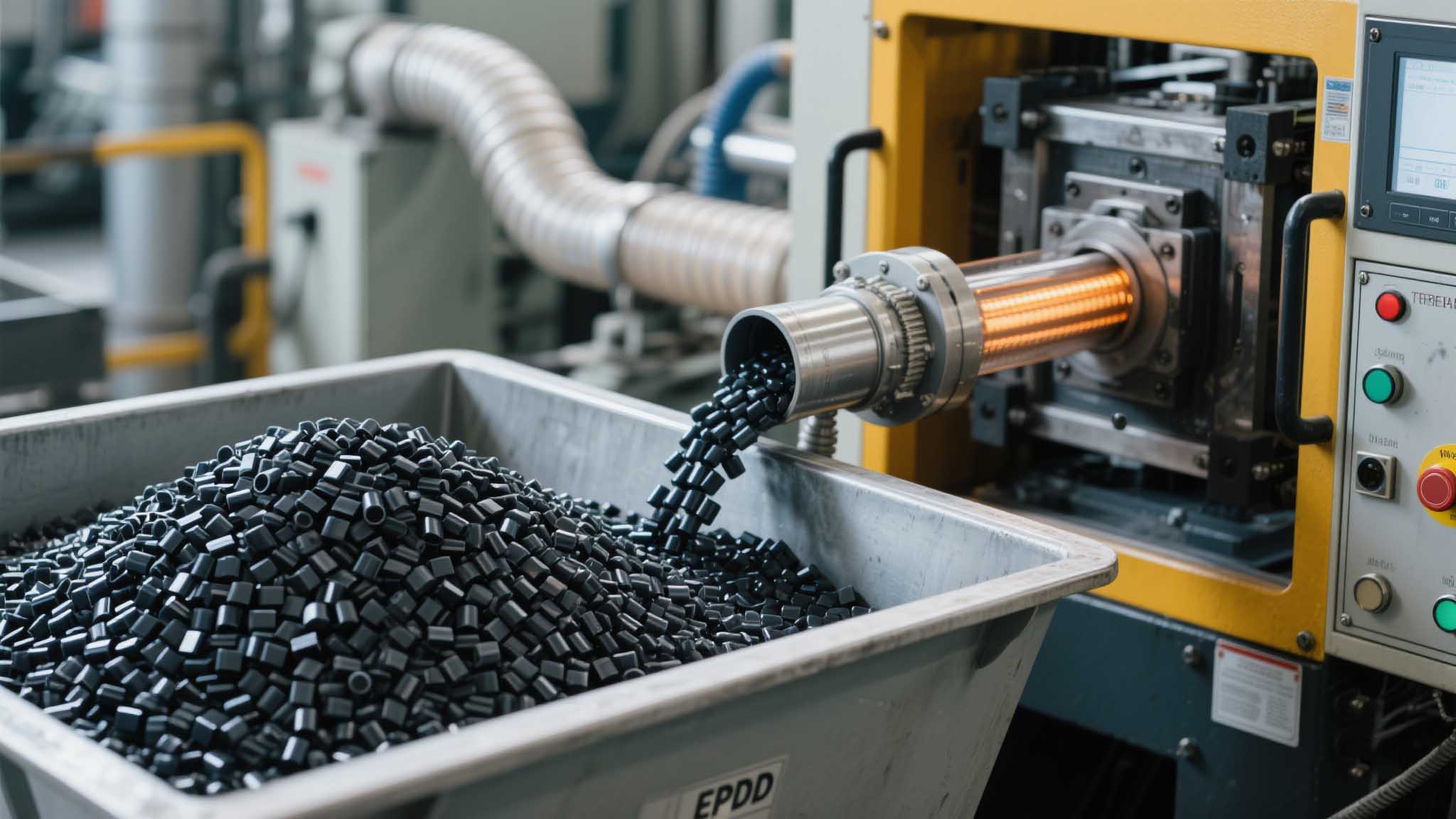

The EPDM Injection Molding Process

Here’s a step-by-step overview of how EPDM injection molding works:

1. Material Preparation

• EPDM rubber is typically compounded with additives (like carbon black, oils, curing agents, and stabilizers) and then formed into strips or pellets.

• The material is preheated in the injection barrel to soften it for molding.

2. Injection and Filling

• The heated EPDM rubber is injected under high pressure into a closed mold cavity.

• Unlike thermoplastics, rubber must fill the mold completely before vulcanization begins.

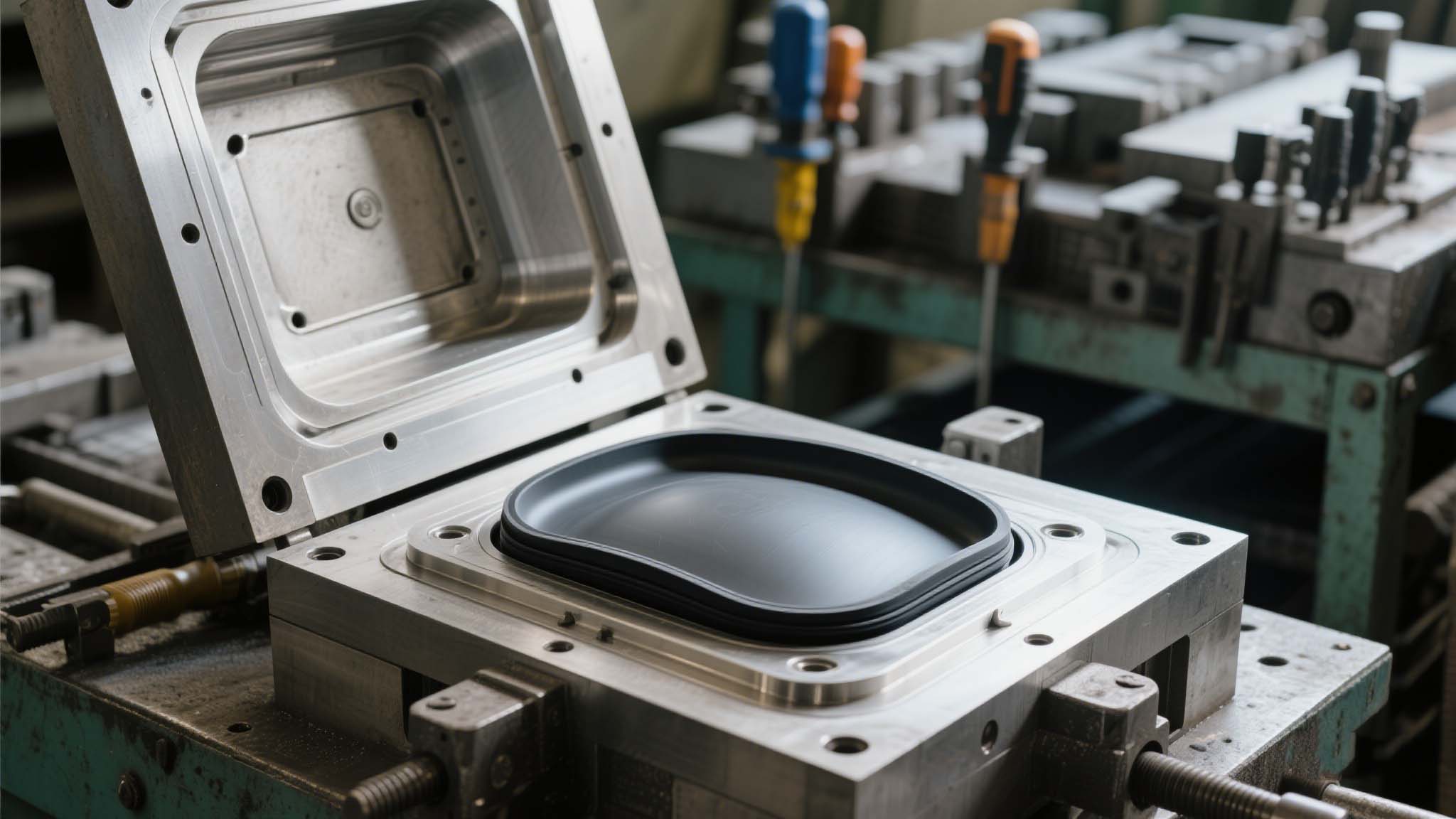

3. Curing (Vulcanization)

• Once in the mold, the EPDM is heated and chemically cured using vulcanization agents (typically sulfur or peroxides).

• This step cross-links the polymer chains, giving the rubber its final mechanical and chemical properties.

4. Cooling and Ejection

• After curing, the molded part is cooled and ejected from the mold.

• Excess flash or waste material is trimmed if necessary.

Why Use Injection Molding for EPDM?

While EPDM can also be processed using compression or transfer molding, injection molding offers key advantages, especially for medium-to-high volume production.

Advantages of EPDM Injection Molding:

• High production efficiency: Faster cycle times than compression molding.

• Tighter tolerances: Precise control of dimensions and repeatability.

• Lower labor cost: More automation-friendly.

• Reduced waste: Accurate shot sizing reduces material scrap.

• Complex shapes: Better suited for intricate or multi-cavity designs.

• Consistent quality: Controlled heating and curing yield uniform properties.

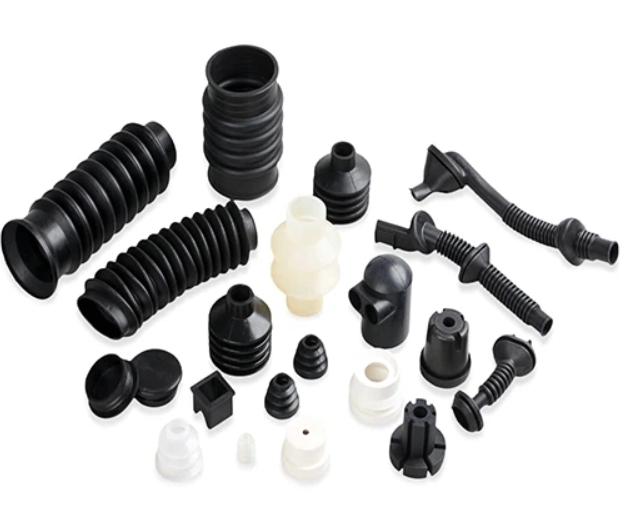

Common Applications of EPDM Injection Molded Parts

Thanks to its durability and flexibility, EPDM rubber is molded into a wide range of parts, especially where resistance to environmental stress is critical.

Automotive Industry:

- Door seals and weatherstrips

- Window and windshield gaskets

- Under-the-hood hoses and bumpers

- Brake system components

Construction and Infrastructure:

- Expansion joint seals

- Pipe gaskets

- Facade seals

- Roofing components

Electrical and Electronics:

- Cable insulation

- Weather-resistant enclosures

- Terminal boots

Consumer Products:

- Appliance seals

- Garden hose fittings

- Athletic goods

Design Considerations for EPDM Injection Molding

When designing parts for EPDM injection molding, it's important to consider the following factors:

1. Shrinkage: EPDM exhibits more shrinkage than thermoplastics due to vulcanization. Molds must be carefully dimensioned.

2. Flow Behavior: EPDM flows more slowly, requiring attention to gate size, runner design, and venting to avoid voids or incomplete fills.

3. Flash Control: Rubber tends to flash at mold parting lines. Mold clamping and precision are essential.

4. Cure Time: Cure time is longer than cooling time in thermoplastic molding. Cycle times must factor in full vulcanization.

5. Post-processing: Trimming or deflashing may be required depending on part geometry and mold precision.

Challenges in EPDM Injection Molding

Despite its advantages, EPDM molding presents some technical challenges:

• Material degradation if overheated

• Longer cycle times due to vulcanization

• Tooling complexity for flash control and temperature uniformity

• Odor and emissions during molding if not properly ventilated

These issues can be addressed with careful mold design, proper processing parameters, and experienced technical staff.

EPDM vs. Other Elastomers in Injection Molding

How does EPDM compare to other rubber types commonly used in injection molding?

Property	EPDM	Nitrile (NBR)	Silicone (VMQ)	Neoprene (CR)
Temp Resistance	Excellent	Moderate	Excellent	Good
Oil Resistance	Poor	Excellent	Poor	Good
Weather Resistance	Excellent	Poor	Excellent	Moderate
Cost	Cost-effective	Moderate	Higher	Moderate
Processability	Good	Good	More complex	Good

EPDM is the go-to choice when weather, temperature, and UV resistance are the top priorities, particularly for outdoor or automotive use.

Conclusion

EPDM injection molding is a powerful solution for producing durable, high-performance rubber components with excellent resistance to the elements. By combining the material advantages of EPDM with the efficiency of injection molding, manufacturers can achieve cost-effective production of complex parts with consistent quality.

Whether you're in the automotive, construction, or electrical industries, EPDM injection molding offers a reliable path to delivering long-lasting rubber parts that perform in harsh conditions.
