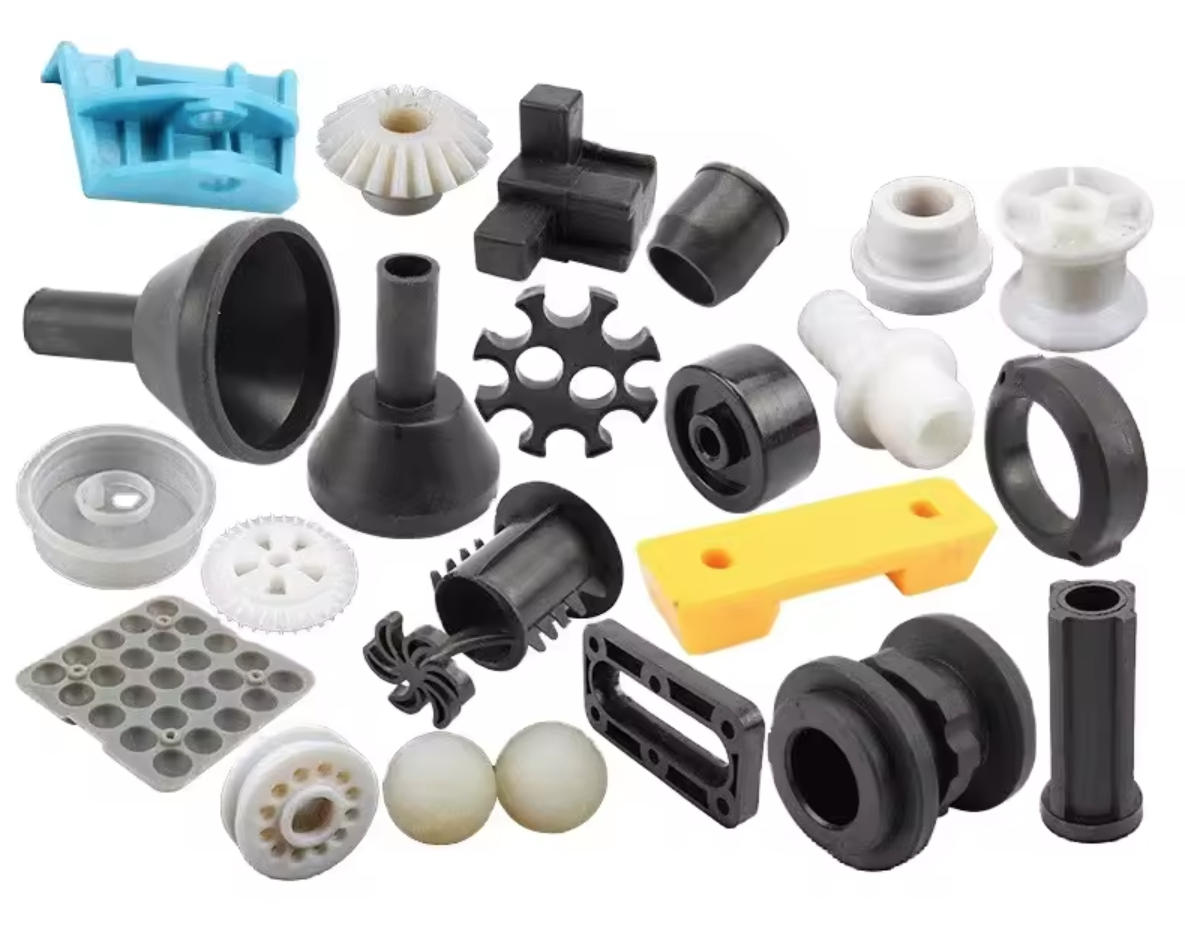

High precision plastic injection molding is a specialized manufacturing process designed to produce plastic components with extremely tight dimensional tolerances, complex geometries, and consistent quality. While standard injection molding focuses on producing parts in large quantities, high precision molding pushes the boundaries of accuracy, consistency, and repeatability — often to within a few microns.
This capability is crucial in industries such as medical devices, aerospace, automotive, and electronics, where even a deviation of 0.001 inch (0.025 mm) can lead to functional failure, safety risks, or assembly issues.
Injection molding has been around since the late 19th century, starting with simple celluloid billiard balls. For decades, it was mostly about producing large volumes of simple plastic shapes. However, by the late 20th century, industries began demanding miniaturized, complex, and highly reliable components.

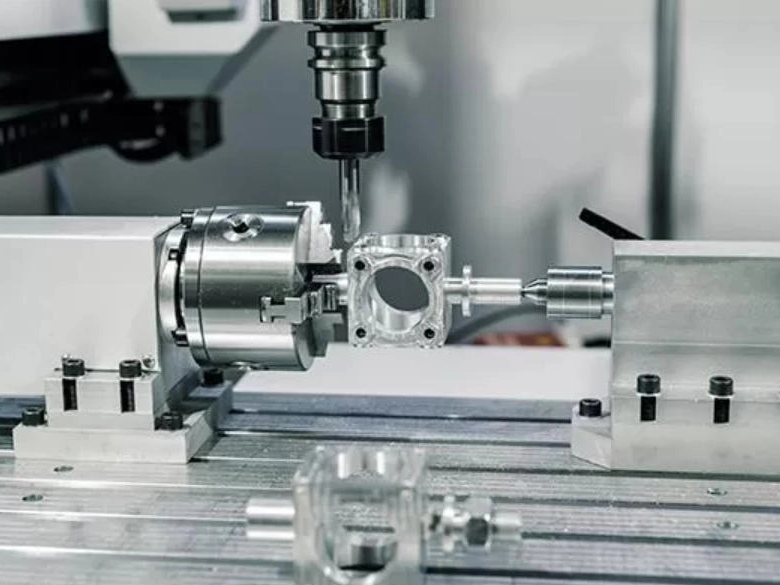

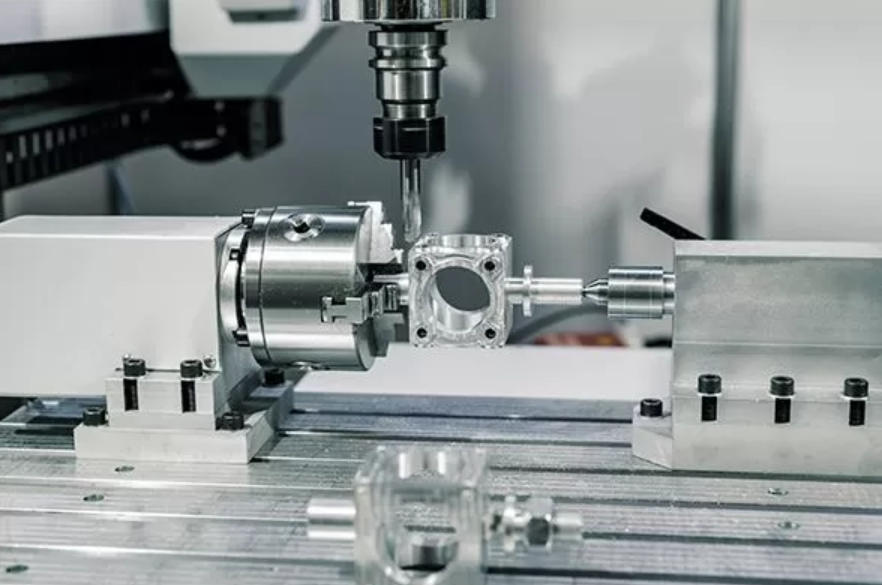

Advancements in CNC machining, EDM (Electrical Discharge Machining), and CAD/CAM software enabled mold makers to craft cavities with exceptional accuracy. At the same time, modern molding machines incorporated servo-electric drives, high-resolution sensors, and closed-loop control systems — making it possible to consistently produce parts that met tolerances once considered impossible for plastics.
Today, high precision plastic injection molding is a key enabler of modern manufacturing innovations, from medical implants smaller than a grain of rice to aerospace components that endure extreme stress.
Ultra-Tight Tolerances
Standard injection molding might hold tolerances of ±0.005 inches (±0.127 mm).
High precision molding can achieve ±0.001 inches (±0.025 mm) or even tighter, depending on part size, design, and material.
Complex Geometries
Capable of producing parts with micro-scale details, thin walls, undercuts, and integrated assembly features.
Allows for “design for function” instead of “design for manufacturability” limitations.
High Repeatability
Every piece matches specifications, even in multi-million-unit runs.
Essential for applications like electrical connectors or surgical devices where interchangeability is non-negotiable.
Advanced Materials
Uses engineering-grade and high-performance plastics like PEEK, LCP, Ultem, PPS for their mechanical strength, chemical resistance, and stability.
The core principle is similar to standard injection molding — molten plastic is injected into a mold cavity and cooled to form a solid part. But precision molding involves far greater control and planning at every stage.
Begins with CAD models designed with tolerance stack-up analysis to ensure perfect fit in assembly.
Simulation tools like Moldflow predict how the molten plastic will fill the cavity, identifying risks of air traps, sink marks, or incomplete fills.
Every design decision considers material shrinkage, cooling rates, and end-use environment.
High precision molds are typically made from hardened tool steel such as H13 or S136 stainless steel.
Molds are polished to mirror finish for optical parts or given micro-textures for functional performance.
Gate design (location and type) is optimized to ensure balanced flow and minimal shear stress.
Venting is incorporated to allow air to escape, preventing voids or burns.
In multi-cavity molds, runner balancing ensures identical fill times for every cavity.
Engineering resins must be dried to exact moisture content (often below 0.02% moisture) to prevent defects like splay or brittleness.
Pellets are stored in humidity-controlled silos or sealed containers to prevent contamination.
Machines are fitted with:
Servo-electric or hybrid drives for high responsiveness.
Precision temperature controllers for barrel zones and mold surfaces.
High-resolution linear transducers for injection stroke monitoring.
Clamping force is matched to part size — over- or under-clamping can distort parts.
Plasticizing: Resin pellets melt uniformly in the barrel.
Injection: Molten plastic is pushed into the cavity at a controlled rate to avoid turbulence and incomplete filling.
Packing & Holding: Additional material is packed in to counter shrinkage during cooling.
Cooling: Uniform cooling prevents warpage; advanced molds may use conformal cooling channels for efficiency.
Ejection: Parts are released carefully to avoid deformation.
Every batch undergoes dimensional inspection using:
CMM (Coordinate Measuring Machines) for 3D accuracy.
Optical measurement systems for micro-features.
CT scanning for internal defect analysis.
Statistical Process Control (SPC) is often applied to maintain zero-defect targets.
Unmatched Dimensional Accuracy：Critical for assembly parts that must fit seamlessly without adjustment.
Consistency Across Volumes：Ensures product quality in millions of parts without variation.
Design Flexibility：Complex geometries and integrated features reduce the number of separate components.
Material Performance：High-grade plastics offer strength, heat resistance, and electrical insulation.
Cost Efficiency in High Volumes：While initial tooling is expensive, per-part costs drop significantly for large runs.
Medical
Surgical tools, dental components, drug delivery devices, and microfluidic chips.
Requires compliance with ISO 13485 and biocompatibility standards.
Automotive

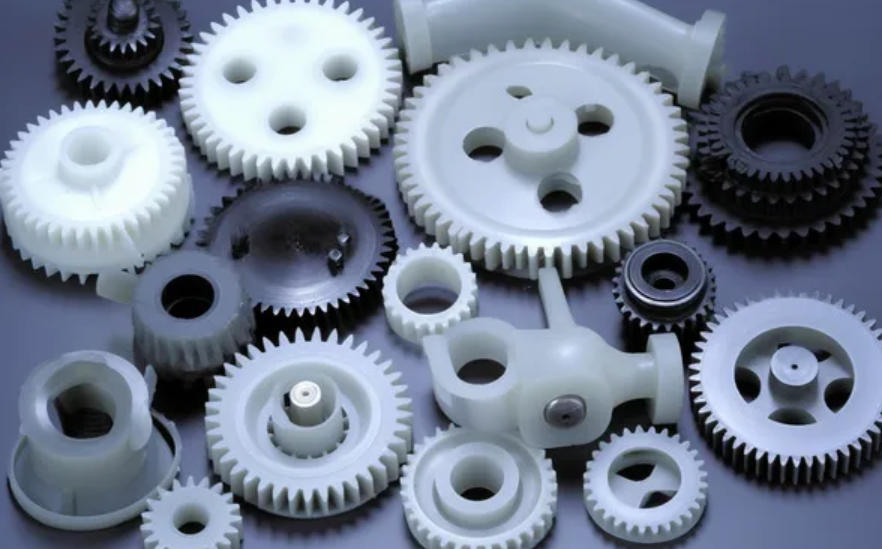

Precision gears, fuel system components, safety-critical sensor housings.
Demands temperature stability and chemical resistance.
Electronics
Micro connectors, smartphone components, fiber optic parts.
Requires ESD-safe materials and micron-level tolerances.
Aerospace
Lightweight, high-strength parts for interiors, control systems, and electronics housings.
Must withstand extreme environments.
Consumer Products
Premium appliance parts, high-end sporting goods, and wearable devices.
High Tooling Investment：Precision molds require advanced machining, polishing, and testing.
Process Sensitivity：Small fluctuations in temperature, humidity, or pressure can cause defects.
Tool Wear：Continuous production gradually wears molds, affecting tolerance if not maintained.
Thermal Expansion：Molds expand slightly during production; engineers must factor this into design.
Maintenance and Calibration：Regular cleaning, lubrication, and alignment checks are essential to avoid downtime.
PEEK (Polyether Ether Ketone) – Exceptional chemical resistance, high temperature tolerance.
LCP (Liquid Crystal Polymer) – Outstanding stability, perfect for micro parts.
PPS (Polyphenylene Sulfide) – Electrical insulation, chemical resistance.
Ultem (Polyetherimide) – High strength, transparent grades available.
Nylon (PA) – Tough, versatile, often glass-filled for rigidity.
Micro Molding：Producing parts smaller than 1 mm in size, used in medical implants and microelectronics.
Smart Factories & Industry 4.0：IoT sensors monitor every machine parameter in real time, allowing AI-based optimization.
Sustainable Engineering Plastics：Development of bio-based, recyclable high-performance polymers.
Hybrid Manufacturing：Combining injection molding with additive manufacturing to produce complex insert components.
Zero-Defect Manufacturing：Using predictive analytics to detect process drift before defects occur.
High precision plastic injection molding represents the pinnacle of accuracy, consistency, and complexity in plastic part manufacturing. It combines meticulous design, advanced materials, precision tooling, and state-of-the-art machinery to meet the most demanding standards.
From life-saving medical devices to high-reliability aerospace components, the process enables innovations that would not be possible with standard molding. As industries push for smaller, lighter, stronger, and more complex parts, high precision injection molding will remain a cornerstone of advanced manufacturing.
