Structural Reaction Injection Molding (SRIM): A Comprehensive Guide

Structural Reaction Injection Molding (SRIM) is a widely used composite manufacturing process that combines the benefits of lightweight materials, precision engineering, and cost-efficient production. It is an advanced version of reaction injection molding (RIM) designed to produce structural parts with enhanced mechanical strength and rigidity. SRIM technology has been instrumental in industries such as automotive, aerospace, construction, and energy, where strong yet lightweight components are essential.

In this article, we will explore the fundamentals of SRIM, how it works, its advantages, applications, challenges, and the future outlook of this process.

1. Understanding Reaction Injection Molding (RIM)

To grasp the concept of SRIM, it is important to first understand the parent process—Reaction Injection Molding (RIM).

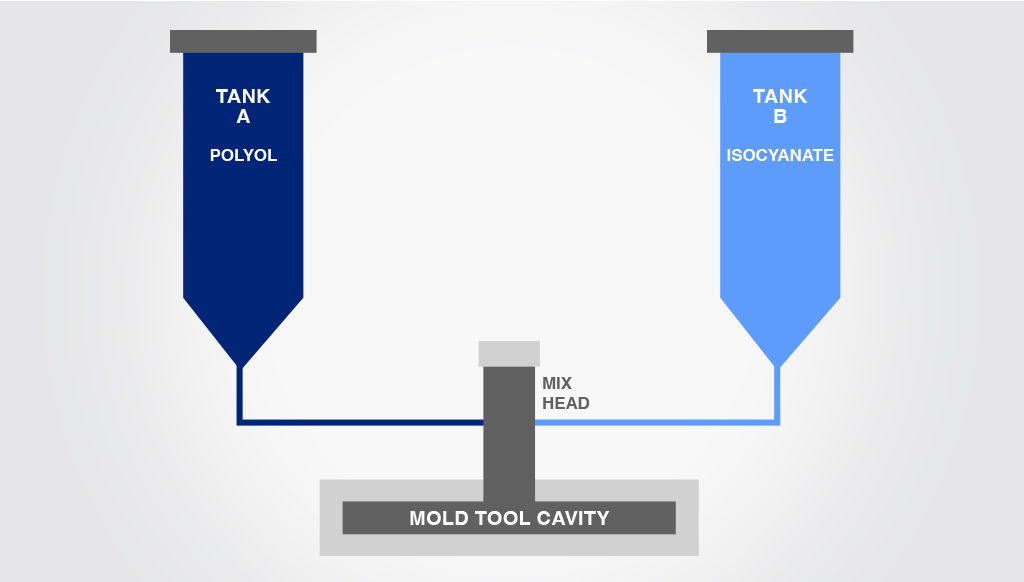

RIM involves the mixing of two or more low-viscosity liquid reactants, typically polyurethane or other thermosetting polymers, which are injected into a closed mold. The chemical reaction occurs inside the mold, producing a solid polymer part. Unlike traditional injection molding that melts and injects thermoplastic pellets, RIM depends on a chemical reaction that solidifies the material directly in the mold.

RIM is valued for its ability to produce lightweight, complex, and durable parts. However, the mechanical properties of conventional RIM parts may not always be sufficient for high-stress applications. This is where SRIM comes into play.

2. What is Structural Reaction Injection Molding (SRIM)?

Structural Reaction Injection Molding (SRIM) is an enhanced RIM process that incorporates reinforcing fibers—typically glass, carbon, or natural fibers—into the mold cavity before the polymer mixture is injected. The reinforcement dramatically improves the structural integrity, stiffness, and load-bearing capacity of the final part.

In other words, SRIM combines the advantages of fiber-reinforced composites with the cost-effectiveness and design freedom of reaction injection molding. This makes SRIM a preferred choice for producing large, strong, yet lightweight components in industries that demand high-performance materials.

3. The SRIM Process: Step-by-Step

The SRIM process is more complex than traditional RIM because of the inclusion of reinforcing fibers. Here's a step-by-step breakdown:

3.1 Mold Preparation

• The mold is designed to match the geometry of the desired part.

• A release agent is applied to facilitate easy part removal.

• Sometimes, decorative films or surface skins are placed inside the mold to achieve specific surface finishes.

3.2 Placement of Fiber Reinforcement

• Fiber mats, woven fabrics, or preforms made of glass, carbon, or aramid fibers are placed inside the mold cavity.

• The fibers are carefully arranged to optimize mechanical performance and minimize weak spots.

• Automated fiber placement systems are increasingly used to reduce labor intensity and improve consistency.

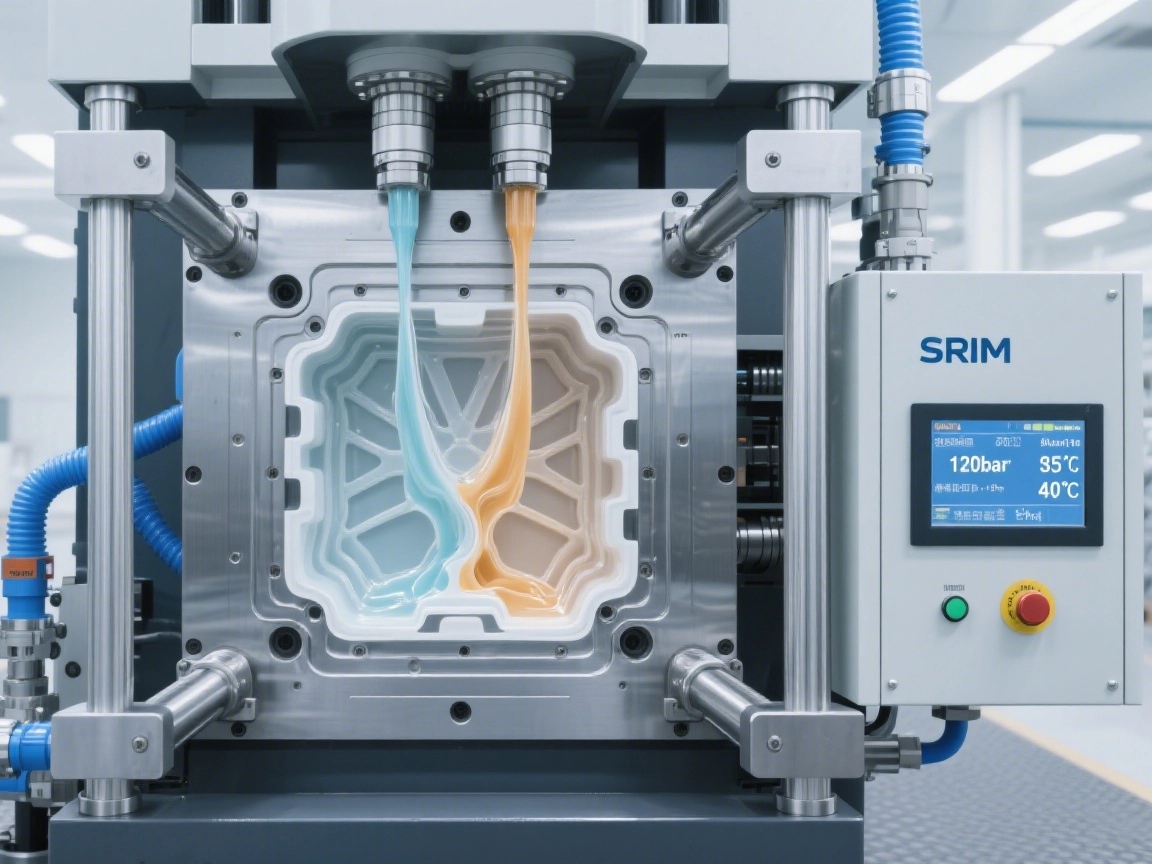

3.3 Injection of Resin

• A low-viscosity resin mixture (usually polyurethane, epoxy, or polyester) is prepared.

• The resin is injected into the closed mold under controlled pressure, penetrating and impregnating the fiber reinforcements.

3.4 Chemical Reaction and Curing

• The resin undergoes a rapid exothermic chemical reaction inside the mold.

• It bonds with the fiber reinforcement, forming a rigid, composite structure.

• Heating may be applied to accelerate curing.

3.5 Demolding and Finishing

• Once curing is complete, the part is removed from the mold.

• Minimal secondary processing is needed, although trimming or surface finishing may be applied.

The entire cycle time can vary from a few minutes to half an hour, depending on part size, resin formulation, and reinforcement design.

4. Materials Used in SRIM

The performance of SRIM parts largely depends on the choice of materials.

4.1 Matrix Resins

• Polyurethane: Most common resin due to excellent toughness, fast curing, and versatility.

• Epoxy: Used where superior mechanical and thermal properties are required.

• Polyester and Vinyl Ester: Cost-effective alternatives, though less durable than polyurethane or epoxy.

4.2 Reinforcements

• Glass Fibers: Widely used for their affordability, good strength, and durability.

• Carbon Fibers: Provide superior stiffness and lightweight properties but are more expensive.

• Aramid Fibers (Kevlar): Offer impact resistance and toughness, suitable for safety-critical parts.

• Natural Fibers (Flax, Hemp, Jute): Increasingly popular in sustainable manufacturing due to their eco-friendly properties.

4.3 Surface Layers

Decorative films, skins, or paints may be integrated into the molding process to improve aesthetics, durability, and UV resistance.

5. Advantages of SRIM

SRIM provides multiple benefits that make it attractive for manufacturers across various industries:

5.1 High Strength-to-Weight Ratio

Fiber reinforcement provides excellent stiffness and mechanical performance while keeping parts lightweight—ideal for automotive and aerospace applications.

5.2 Design Flexibility

Complex geometries, integrated ribs, and large panel designs can be achieved, reducing the need for multiple parts or assemblies.

5.3 Cost-Effective Production

Compared to traditional composite lay-up processes, SRIM offers lower cycle times and reduced labor costs. It is more scalable for medium- to high-volume production.

5.4 Dimensional Accuracy

The closed mold system ensures precision in dimensions and repeatability across multiple parts.

5.5 Surface Quality Options

SRIM can integrate surface films or coatings directly in the molding process, reducing finishing operations.

5.6 Energy Efficiency

Since the resins are injected in low-viscosity form, lower injection pressures and clamping forces are required compared to thermoplastic injection molding. This reduces energy consumption and equipment wear.

6. Limitations and Challenges of SRIM

Despite its advantages, SRIM is not without challenges:

6.1 High Tooling Costs

The molds and equipment for SRIM can be expensive, making it less suitable for low-volume production runs.

6.2 Fiber Placement Complexity

The placement of reinforcements requires precision and can be labor-intensive without automation.

6.3 Cycle Time Considerations

Although faster than hand lay-up methods, SRIM is slower compared to thermoplastic injection molding, which can limit ultra-high-volume applications.

6.4 Limited Recyclability

Most SRIM parts are thermoset composites, which cannot be remelted or reshaped, raising sustainability concerns.

6.5 Initial Material Costs

High-performance fibers like carbon or aramid significantly increase overall part costs.

7. Applications of SRIM

The versatility of SRIM has made it a go-to choice in several industries:

7.1 Automotive Industry

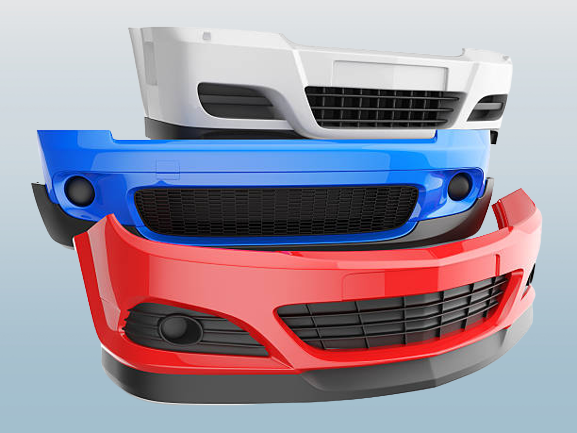

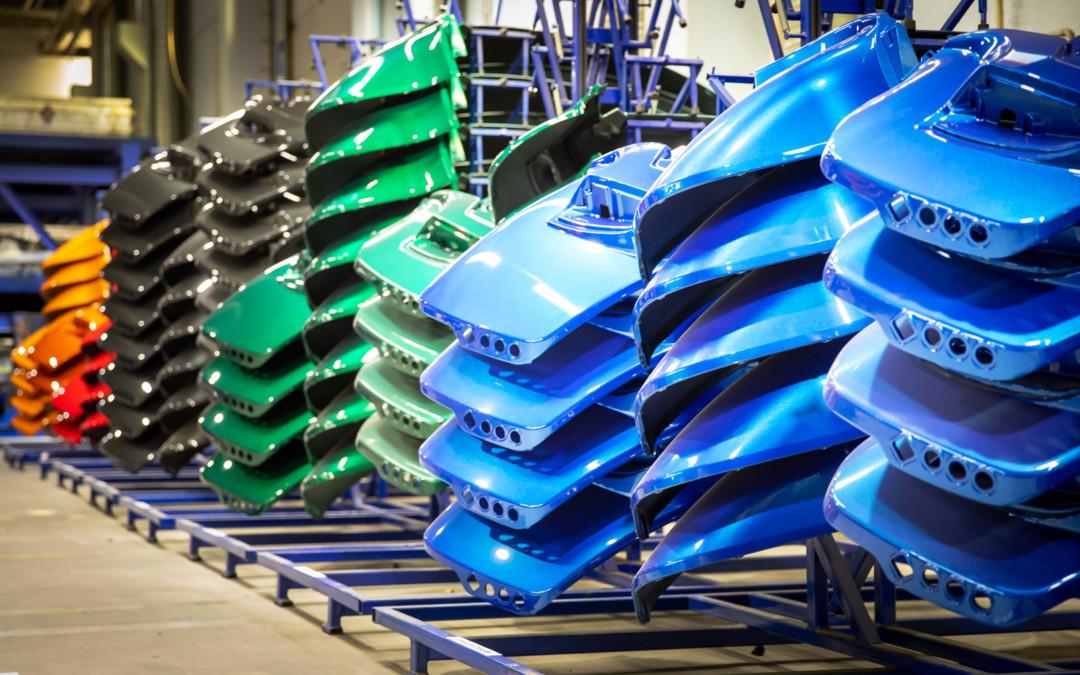

• Exterior Panels: Door panels, hoods, fenders, and roof modules.

• Structural Components: Bumper beams, load floors, and seat structures.

• Benefits: Weight reduction improves fuel efficiency and helps meet emission regulations.

7.2 Aerospace

• Lightweight interior panels, seat frames, and secondary structural components.

• Helps reduce aircraft weight while maintaining passenger safety.

7.3 Construction

• Architectural panels, cladding, and prefabricated structural elements.

• Provides durability and resistance to environmental factors.

7.4 Renewable Energy

• Wind turbine components, protective casings, and support structures.

• Combines durability with lightweight efficiency.

7.5 Consumer Goods

• High-performance sporting goods like helmets, bicycle frames, and protective gear.

• SRIM allows mass production of strong, lightweight equipment.

8. SRIM vs. Other Manufacturing Methods

8.1 SRIM vs. Traditional Injection Molding

• Injection Molding: Uses thermoplastics, higher cycle speed, suitable for very high volumes.

• SRIM: Uses thermosets with fiber reinforcement, producing stronger but slower-to-make parts.

8.2 SRIM vs. Compression Molding

• Compression Molding: Requires pre-impregnated sheets (SMC/BMC) and high pressures.

• SRIM: Uses liquid resin systems, enabling lower pressure, lighter tooling, and more design flexibility.

8.3 SRIM vs. Hand Lay-Up

• Hand Lay-Up: Labor-intensive, suitable for low volumes.

• SRIM: Automated or semi-automated, scalable for medium to high volumes.

9. Future Trends in SRIM

As industries demand stronger, lighter, and more sustainable materials, SRIM is evolving with new innovations:

9.1 Sustainable Fibers and Resins

Growing interest in bio-based resins and natural fibers is driving eco-friendly SRIM solutions.

9.2 Automation and Robotics

Automated fiber placement and resin injection systems are improving speed, accuracy, and consistency.

9.3 Hybrid Composites

Combining glass and carbon fibers within the same part to balance performance and cost.

9.4 Recycling and Reuse Technologies

Research into recyclable thermosets and resin recovery methods aims to overcome environmental challenges.

9.5 Digital Manufacturing Integration

Simulation and digital twin technologies allow engineers to predict resin flow, curing, and final properties more accurately, reducing trial-and-error in design.

Conclusion

Structural Reaction Injection Molding (SRIM) stands as a pivotal technology in the field of composite manufacturing. By reinforcing polymer matrices with fibers, SRIM achieves exceptional strength-to-weight ratios, dimensional accuracy, and design flexibility. From automotive panels to aerospace structures and renewable energy components, SRIM has proven its versatility and value.

While challenges such as high tooling costs, limited recyclability, and fiber placement complexity remain, innovations in materials, automation, and sustainability are paving the way for SRIM’s continued growth.

As industries move toward lighter, stronger, and greener solutions, SRIM will continue to play a central role in shaping the future of advanced manufacturing.
