3D printing has revolutionized the way we approach mechanical design and prototyping. One of the most captivating examples of this innovation is the 3D printed gear ball — a spherical mechanical puzzle that showcases rotating, interlocking gears integrated into a single structure. Not only does it serve as a fascinating desk toy, but it also acts as an educational tool for understanding motion, gear trains, and additive manufacturing challenges.


Designing a gear ball that is both functional and printable requires careful planning, geometric precision, and an understanding of mechanical movement. In this step-by-step guide, we'll walk through the design process — from concept to CAD modeling to print-ready files — for creating a gear ball that spins smoothly straight off the printer.


1. Understanding the Gear Ball Concept

What is a Gear Ball?

A gear ball is a spherical mechanical assembly where multiple gears are arranged on the surface of a sphere, and rotating one gear causes the others to rotate through meshing teeth. It's a mesmerizing blend of form, function, and geometry.

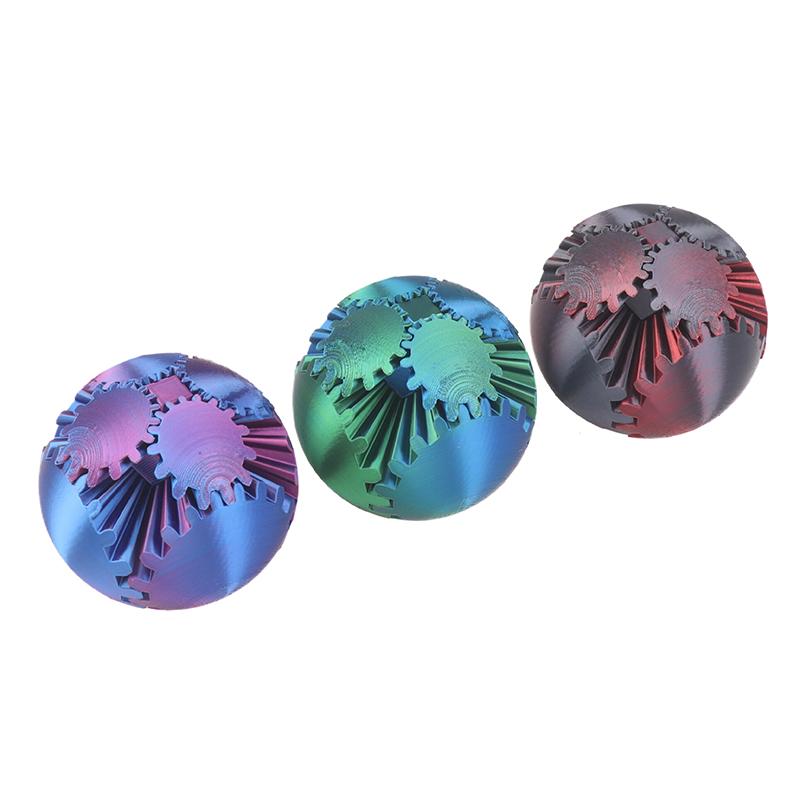

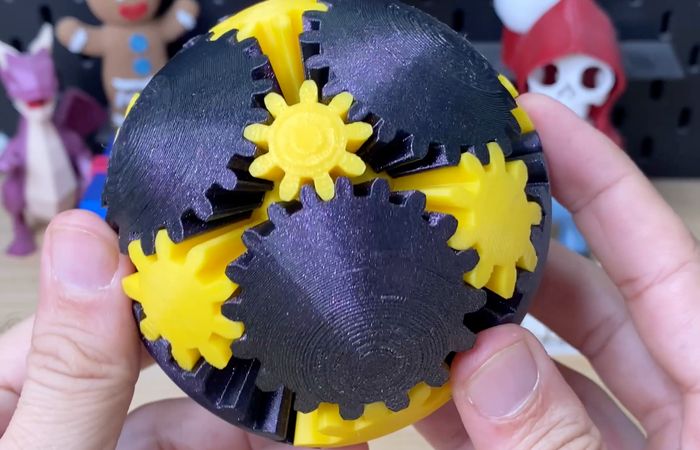

gear ball 3D print

Why is It Challenging to Design?

  • Spherical surface complicates gear alignment

  • Interlocking parts must be movable right off the printer

  • Clearances and tolerances must account for material shrinkage

  • Support structures can interfere with gear teeth

Designing a gear ball requires balancing aesthetic symmetry with mechanical performance.


2. Tools and Software Needed

To design a functional gear ball, you'll need:

CAD Software

  • Fusion 360 (recommended for parametric modeling)

  • SolidWorks, TinkerCAD, or FreeCAD (alternatives)


Slicer

  • Cura, PrusaSlicer, or Bambu Studio — for generating print files


3D Printer

  • FDM printers like Prusa i3, Creality Ender 3, or Bambu Lab X1C

  • Ensure your printer has good overhang and bridging capabilities


Optional

  • 3D mouse for better manipulation

  • Simulation tools for motion testing


3. Step-by-Step Gear Ball Design Guide

Step 1: Define Requirements

Before opening any software, clarify:

  • Size: Total diameter (e.g., 80–100 mm)

  • Number of gears: Typically 6–12 for a medium gear ball

  • Type of motion: Should all gears rotate together, or should they be independently actuated?

  • Clearances: Target gap of 0.3–0.5 mm for moving parts


Step 2: Model the Base Sphere

Start with a solid sphere in your CAD environment:

  • Use the "Create Sphere" function

  • Example size: 100 mm diameter

This sphere is your bounding surface. All gear placements and mechanisms will conform to it.


Step 3: Create the Gear Tooth Profile

For each gear, you need a consistent tooth profile:

  • Use involute gear calculations

  • Choose gear parameters:

    • Module or pitch (size of teeth)

    • Number of teeth (typically 12–20 per gear)

    • Pressure angle (usually 20°)

Use built-in gear generators (like the Spur Gear tool in Fusion 360) or online calculators to generate the 2D sketch of a gear.


Step 4: Wrap Gears Around the Sphere

This is where the challenge begins.

You'll need to:

  • Project or wrap flat gears onto a curved surface

  • Use a polar array or circular pattern to distribute gears evenly

  • Each gear face should be tangent to the sphere and point outward

Fusion 360 tip: Use Emboss” or “Project to Surface to wrap your 2D gear sketch onto the sphere.


If designing a 3-gear or 6-gear system:

  • Use Platonic solids (e.g., icosahedron or octahedron vertices) to position gears symmetrically.

gear ball 3D printing

Step 5: Design Interlocking Mechanisms

Once the gears are positioned:

  • Extrude each gear slightly into the sphere

  • Ensure the teeth of adjacent gears mesh correctly

  • Use Boolean operations to test overlap and refine fit

This step may require several iterations and simulation tests.


Step 6: Add Internal Axles or Connectors

The gears need to rotate freely. There are two common strategies:

Option A: Fixed Center Core

  • Keep a solid central sphere with gear shafts extending into it

  • Use cylindrical pins or axles connected to the internal core


Option B: Freely Floating Gears

  • Each gear rotates independently on a track or bearing-like structure

  • Requires designing gear housings and curved channels

Include clearance gaps (typically 0.3 mm) between gear and axle walls to ensure motion after printing.


Step 7: Add Locking or Retention Features

To prevent gears from falling off:

  • Add snap-fit features, clips, or retention rings

  • Consider integrating stoppers to limit gear rotation range


For a print-in-place model:

  • Include a thin bridging structure or tiny chamfered lip to keep parts together but mobile


4. Print Settings and Recommendations

Now that your model is complete, it's time to prepare for printing.

Slicer Tips:

  • Layer height: 0.1–0.2 mm for better gear detail

  • Wall count: 2–3 walls for strength

  • Infill: 20–40% for structural gears

  • Support: Try printing without supports if tolerances allow

  • Build plate adhesion: Use a brim if the gear ball wobbles during the first layer


Filament Recommendations:

  • PLA: Easy to print, low warp, ideal for prototypes

  • PETG: More durable, better layer adhesion

  • Nylon: Great wear resistance but harder to print

Avoid overly flexible filaments for gear balls, as they may cause gear slop or jamming.


5. Testing and Troubleshooting

Initial Motion Test

  • Gently rotate one gear: adjacent ones should rotate smoothly

  • Look for binding or excessive friction


Common Issues

Problem

Cause

Solution

Gears won’t turn

Too-tight tolerances

Increase clearance to 0.5 mm

Nozzle drags across print

Improper Z-hop or travel

Adjust slicer settings

Rough gear surfaces

Low resolution or overhangs

Decrease layer height, enable supports if   needed

Supports hard to remove

Poor support settings

Use custom support blockers or better   materials

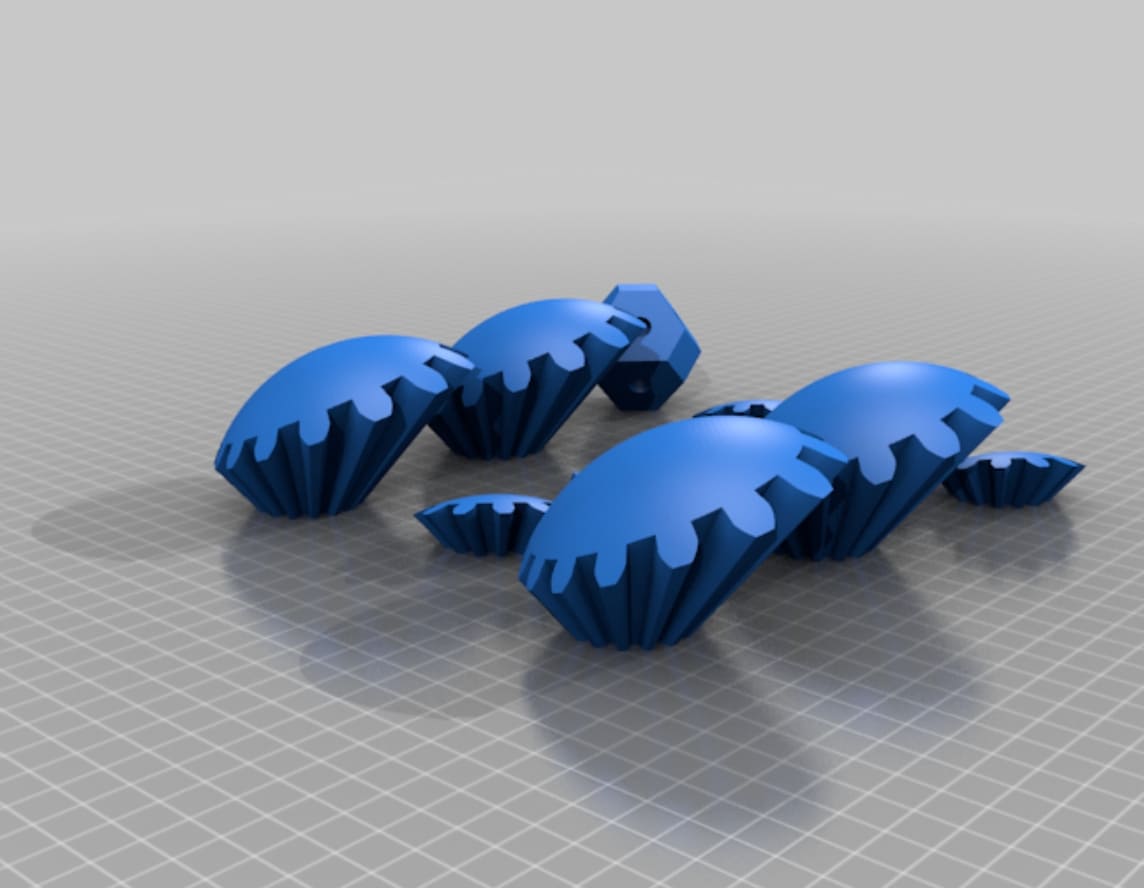

gear ball 3D print-1

6. Advanced Variations and Customization

Color and Material Options

  • Use dual extrusion printers to print gear teeth in a different color

  • Mix rigid and flexible materials for hybrid tactile designs


Functional Modifications

  • Add a central button to release or lock gear rotation

  • Use bearings for smoother gear motion

  • Integrate magnets to snap the ball into place or hold in a cradle


Themed Designs

  • Gear ball puzzle locks

  • Solar system gear ball (planetary gear design)

  • Logo-integrated gear balls for branding


7. Where to Share or Find Gear Ball Designs

If you're looking for inspiration or want to share your creation, check out:

Consider licensing your design under Creative Commons if you want others to remix and share it.


8. Real-World Applications of Gear Balls

While often considered a novelty or toy, gear balls demonstrate serious principles:

  • Mechanical engineering: gear meshing, tolerances, rotational motion

  • Education: physical visualization of gear trains

  • Design prototyping: test curved surfaces and motion constraints

  • Therapy tools: fidget toys with controlled resistance


In product development, creating printable mechanisms like a gear ball can accelerate rapid iteration and design validation.


Conclusion

Designing a functional 3D printed gear ball is an exciting challenge that pushes the boundaries of what's possible with additive manufacturing. It requires a careful balance between artistic creativity, mechanical precision, and practical printing constraints. With the right tools, techniques, and mindset, you can create a beautiful kinetic sculpture that turns heads and teaches valuable engineering concepts.


Whether you're designing for fun, education, or experimentation, gear balls are a fantastic way to learn more about 3D modeling, motion mechanics, and the power of 3D printing technology.
