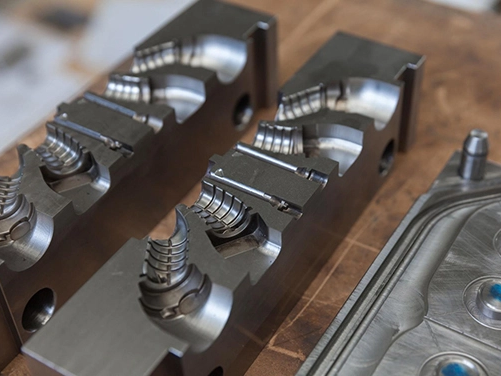

Injection Molding Inserts: A Complete Guide

Injection molding is renowned for its ability to mass-produce plastic components with high precision, repeatability, and efficiency. While it's predominantly used to manufacture all-plastic parts, many industries require plastic components that are reinforced with metal or other materials to meet specific strength, wear, or assembly requirements. This is where injection molding inserts come into play.

Inserts enable manufacturers to combine the versatility of plastic with the strength, conductivity, or wear resistance of metal—all within a single molding cycle. From threaded brass bushings in automotive parts to electrical terminals in consumer devices, inserts are integral to high-performance molded assemblies.

This article explores everything you need to know about injection molding inserts—what they are, how they work, types, materials, applications, advantages, challenges, and best practices.

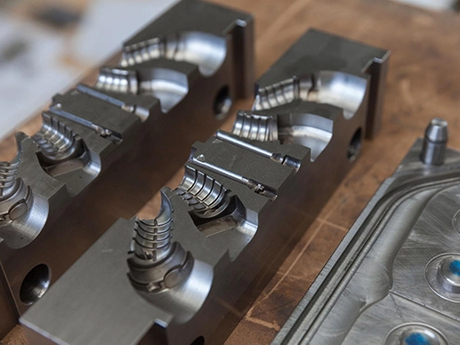

What Are Injection Molding Inserts?

Injection molding inserts are preformed components, usually made of metal or other non-plastic materials, that are placed into a mold cavity before the injection molding process begins. When molten plastic is injected into the mold, it flows around the insert, securing it in place as the plastic solidifies. The result is a hybrid part that combines both plastic and the insert in a single molded assembly.

These inserts are often used to:

• Provide stronger mechanical threads

• Add wear-resistant or load-bearing surfaces

• Create electrical pathways or heat conduction zones

• Enable mechanical joining or modular assemblies

Common Types of Inserts

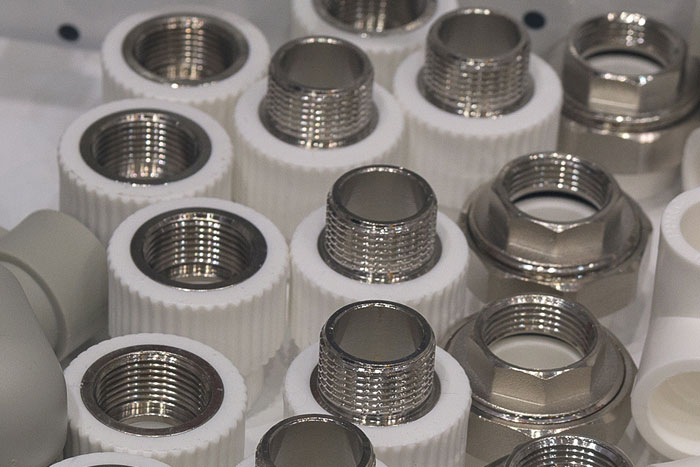

1. Threaded Inserts

Used to provide durable screw threads in plastic parts, especially for repeated assembly/disassembly.

• Materials: Brass, stainless steel, steel

• Shapes: Knurled, hexagonal, or slotted for torque resistance

• Applications: Electronics housings, automotive enclosures, consumer products

2. Electrical Inserts

Used for conducting electricity within a molded part, such as in connectors or switches.

• Materials: Copper, brass, plated metals

• Applications: Electrical terminals, PCB connectors, battery housings

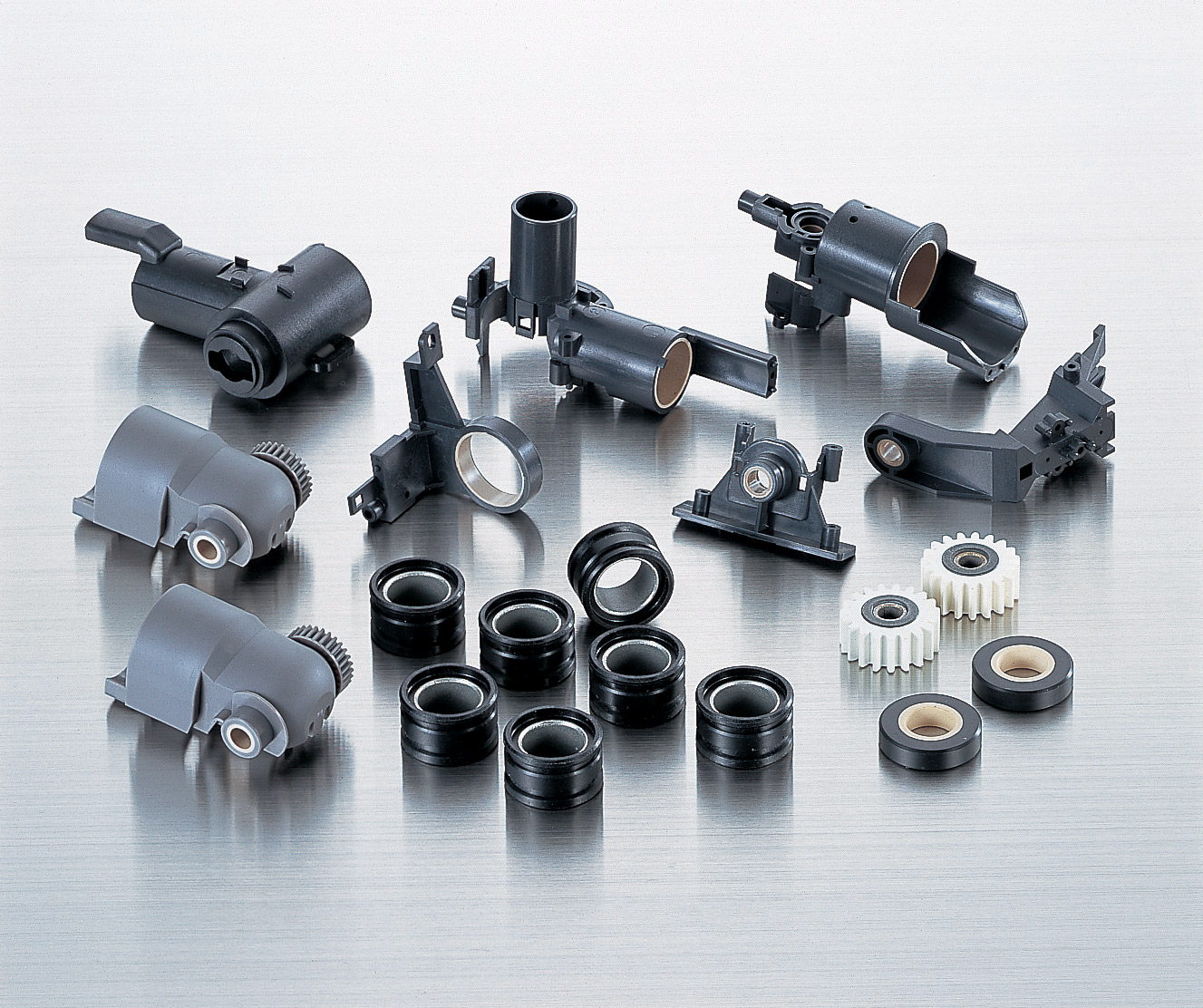

3. Structural Inserts

Used to enhance the structural integrity or load-bearing capability of a plastic part.

• Materials: Steel rods, bushings, brackets

• Applications: Automotive components, appliance parts, furniture brackets

4. Magnetic Inserts

Embedded magnets for functional or closure purposes.

• Applications: Enclosures, medical devices, consumer electronics

5. Custom Inserts

Designed for specific applications, such as identification tags, RFID chips, or sensors.

Insert Molding vs. Overmolding

• Insert Molding involves placing a solid insert into the mold, then molding plastic around it in a single cycle.

• Overmolding refers to molding plastic over a previously molded plastic or rubber part.

Both processes are multi-material molding techniques, but insert molding focuses on integrating non-plastic components, often metallic.

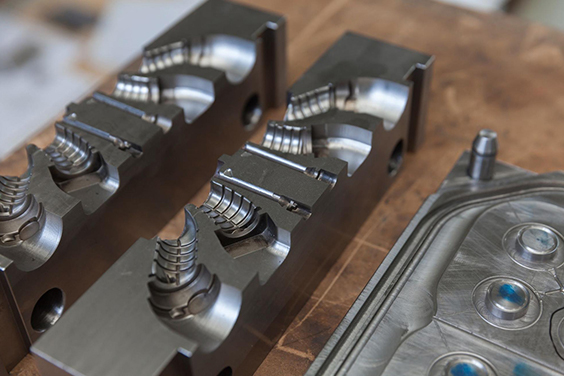

How the Insert Molding Process Works

1. Insert Preparation

• Inserts are cleaned (removal of oils or contaminants) to ensure proper bonding.

• Depending on design, inserts may be preheated to reduce thermal shock or warping.

2. Insert Placement

Inserts are placed into mold cavities:

• Manually, for low-volume production

• Robotically, for high-volume, automated lines

• Mold may have dedicated pockets or magnets to hold inserts in place

3. Injection Molding

• Plastic resin is injected into the cavity.

• It flows around the insert, encapsulating or anchoring it in place.

4. Cooling and Ejection

• Once solidified, the part (now including the embedded insert) is ejected.

• Inspection may follow to check alignment and bonding quality.

Materials Used for Inserts

Metals

• Brass: Corrosion-resistant, easy to machine, widely used for threaded inserts

• Stainless Steel: Strong, durable, used in structural or high-wear applications

• Copper: Excellent conductivity for electrical parts

• Aluminum: Lightweight, but may deform under pressure if not properly supported

Other Materials

• Ceramics: For thermal or electrical insulation

• Magnets: For closures or sensors

• Glass or RFID Chips: In smart or identification applications

Plastic Resins Compatible with Insert Molding

Most thermoplastics can be used in insert molding, but proper selection ensures better bonding and durability.

Common Choices:

• ABS: Easy to mold, good adhesion to metal

• Nylon (PA): Strong and wear-resistant, often used with brass inserts

• PBT: Good dimensional stability, electrical resistance

• Polycarbonate (PC): Tough, used in structural parts

• PEEK: For high-performance and high-temperature applications

Tip: The plastic's shrinkage rate, flow properties, and adhesion to metal must be considered when designing for inserts.

Advantages of Insert Molding

✅ 1. Enhanced Strength and Durability

• Inserts provide stronger threads and load-bearing features than molded plastic alone.

✅ 2. Material Efficiency

• Eliminates the need for all-metal parts, reducing weight and material cost.

✅ 3. Part Consolidation

• Combines multiple components into one molded piece, reducing post-processing and assembly steps.

✅ 4. Better Aesthetics

• Eliminates visible fasteners and creates a clean, integrated finish.

✅ 5. Electrical or Thermal Functionality

• Enables integration of conductive, heat-resistant, or signal-carrying components.

✅ 6. Improved Assembly and Repair

• Threaded inserts allow repeated screw insertion without damaging the part.

Challenges and Limitations

Despite its advantages, insert molding has some unique challenges:

⚠️ 1. Insert Placement Accuracy

• Misaligned inserts can lead to mold damage, defects, or scrap parts.

• Requires precise placement tools or automation.

⚠️ 2. Cycle Time

• Manual loading of inserts increases cycle time for low-volume production.

⚠️ 3. Material Compatibility

• Not all plastics bond well with all metals.

• Requires surface prep or use of adhesives in some cases.

⚠️ 4. Thermal Stress

• The temperature difference between hot plastic and metal inserts can cause cracking or deformation if not managed properly.

Design Guidelines for Insert Molding

1. Undercuts or Knurling

• Use knurled, grooved, or hexagonal inserts to resist pull-out or rotation.

• Avoid smooth cylindrical surfaces unless using adhesives.

2. Wall Thickness

• Maintain uniform wall thickness around the insert to avoid sink marks or voids.

• A minimum thickness of 1.5× the insert diameter is recommended.

3. Insert Location

• Place inserts in areas with good mold filling and venting.

• Avoid placing inserts near parting lines unless necessary.

4. Draft Angles

• Ensure proper draft angles on the molded part to facilitate easy ejection.

5. Thermal Management

• Preheat inserts to reduce thermal gradients and warping.

• Avoid sharp corners where thermal stress can concentrate.

Applications of Injection Molding Inserts

Injection molding inserts are widely used across industries that demand strength, precision, and multi-material integration.

Automotive

• Sensor housings, fastener mounts, seatbelt components

• Threaded bushings in dashboards or engine compartments

Electronics

• Terminal housings, connector blocks, switch components

• EMI shielding and grounding terminals

Industrial Equipment

• Wear-resistant bearings, gear housings, assembly guides

Consumer Goods

• Latches, snap-fit closures, durable screw threads

• Embedded magnets for cases or covers

Medical Devices

• Metal-reinforced components for surgical tools or instruments

• Sensor-mounting points or connectors

Best Practices for Insert Molding

1. Design for Automation

Use inserts with consistent geometry and orientation for robotic placement.

2. Keep Inserts Dry and Clean

Moisture or oils can prevent bonding and cause voids or burns.

3. Use Mold Flow Analysis

Simulate how plastic will flow around the insert to avoid air traps and voids.

4. Test Pull-Out and Torque Strength

Validate that insert retention meets mechanical load requirements.

5. Choose Inserts Designed for Molding

Avoid machining your own if possible; use inserts with designed undercuts and standardized geometry.

Conclusion

Injection molding inserts are a powerful solution for creating parts that need the lightweight, complex geometry of plastic combined with the strength, conductivity, or durability of metal. Whether you’re adding threads, structural reinforcement, or electrical pathways, insert molding is an efficient and cost-effective approach.

By carefully selecting insert materials, designing with molding in mind, and following best practices for placement and processing, manufacturers can produce high-performance, multi-functional molded parts that meet the most demanding specifications.
