Materials for Metal Injection Molding (MIM)

Metal injection molding (MIM) has become one of the most versatile manufacturing processes in modern industry, combining the design freedom of plastic injection molding with the strength of metals. But the true success of MIM depends heavily on the materials used.

Choosing the right material is not just about availability—it directly affects mechanical performance, corrosion resistance, biocompatibility, cost, and overall efficiency. In 2025, industries such as automotive, aerospace, medical devices, and consumer electronics rely on MIM materials to deliver complex parts that meet demanding requirements.

This guide explores the materials for metal injection molding in detail—highlighting their properties, applications, benefits, and challenges.

The Role of Materials in the MIM Process

Before diving into the specific alloys, it’s important to understand why material selection is so critical in metal injection molding:

1. Flowability of Powder – The particle size and shape influence how well the feedstock fills the mold.

2. Shrinkage Control – Different alloys shrink differently during sintering, affecting dimensional accuracy.

3. Mechanical Properties – The final performance (strength, toughness, hardness) depends on material choice.

4. Surface Finish – Certain metals achieve smoother finishes after sintering.

5. Cost Efficiency – Raw material cost and ease of processing impact overall project economics.

In short, the right material ensures high-quality parts, while the wrong choice may lead to poor density, weak performance, or excessive costs.

Major Categories of Materials for Metal Injection Molding

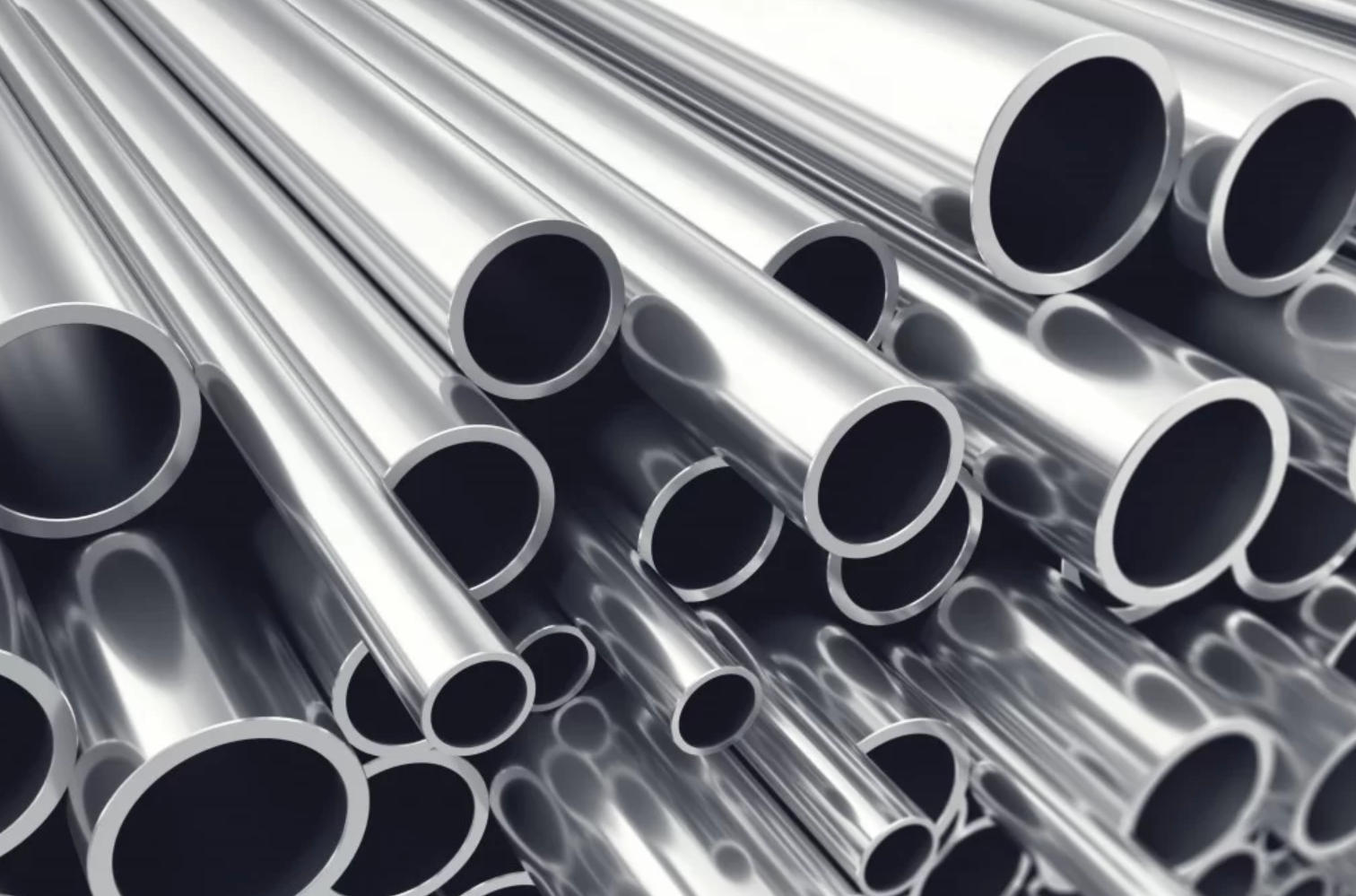

1. Stainless Steels

Stainless steels are the most widely used materials in MIM. They combine strength, corrosion resistance, and versatility, making them ideal for industries ranging from medical devices to consumer electronics.

Common Grades:

• 316L Stainless Steel – Known for excellent corrosion resistance, especially in medical and marine environments.

• 17-4 PH Stainless Steel – Precipitation-hardened alloy with high strength and wear resistance.

• 410/420 Stainless Steels – Martensitic steels offering hardness and durability.

Applications:

• Surgical instruments and dental brackets

• Watch cases and smartphone components

• Automotive fuel injectors and turbocharger parts

Advantages:

• Excellent balance of strength and corrosion resistance

• Wide availability of powders

• Cost-effective compared to exotic alloys

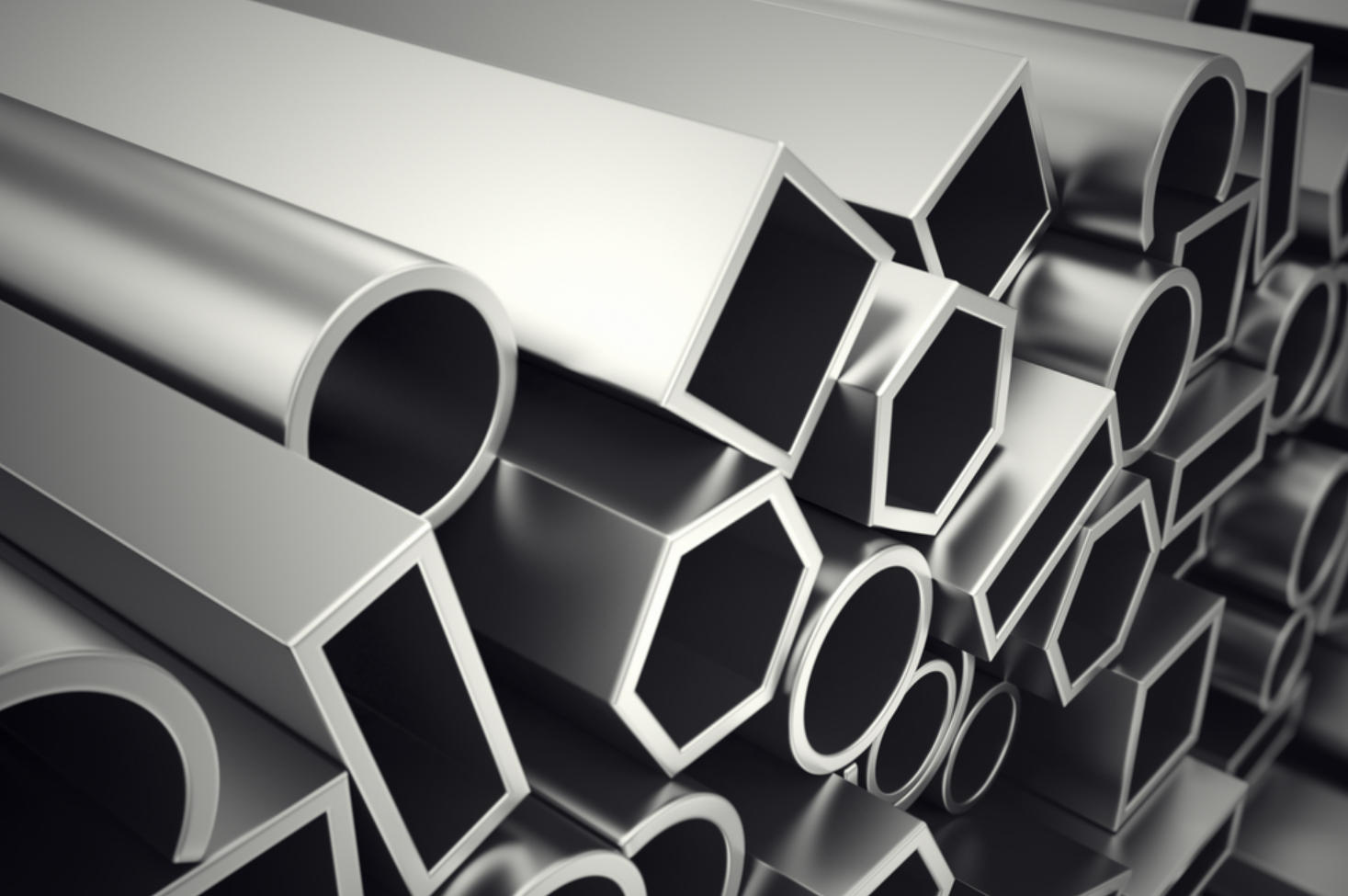

2. Low-Alloy Steels

Low-alloy steels are commonly used in MIM for structural applications requiring toughness and wear resistance.

Examples:

• Fe-2%Ni

• Fe-8%Ni

• Fe-Cr-Mo blends

Applications:

• Automotive gears and locking mechanisms

• Power tools and industrial machinery

• Weapon components (triggers, firing pins)

Advantages:

• High strength-to-cost ratio

• Good machinability and heat-treat response

• Reliable for medium-stress applications

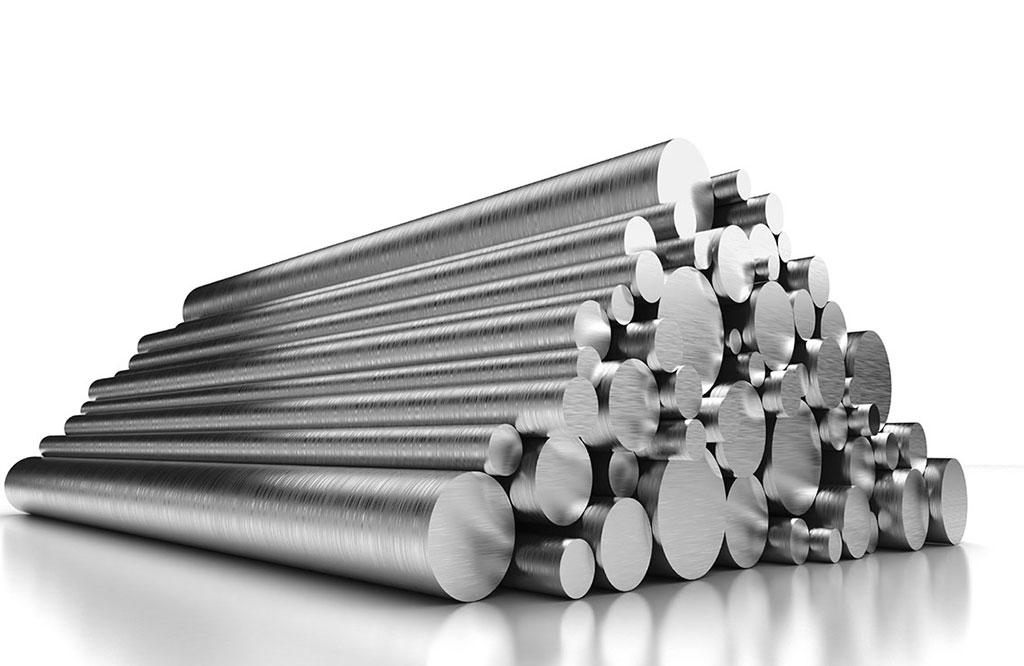

3. Tool Steels

When hardness and wear resistance are required, tool steels become the preferred choice.

Popular Types:

• M2 (High-Speed Tool Steel) – Excellent for cutting and machining tools.

• D2 (High Carbon Tool Steel) – High hardness and wear resistance.

Applications:

• Cutting blades

• Industrial tooling components

• Molds and dies

Advantages:

• High hardness after heat treatment

• Excellent wear resistance

• Ideal for high-performance tools

4. Titanium and Titanium Alloys

Titanium has gained tremendous popularity in MIM, especially for medical and aerospace applications.

Properties:

• Lightweight yet strong

• Biocompatible (safe for implants)

• Excellent corrosion resistance

Applications:

• Orthopedic implants and dental implants

• Aerospace brackets and lightweight housings

• High-end consumer goods (eyewear, luxury watches)

Advantages:

• Unmatched strength-to-weight ratio

• Long-term durability in demanding environments

• High value in German and European medical sectors

Challenges:

• More expensive powders

• Processing requires precise control during sintering

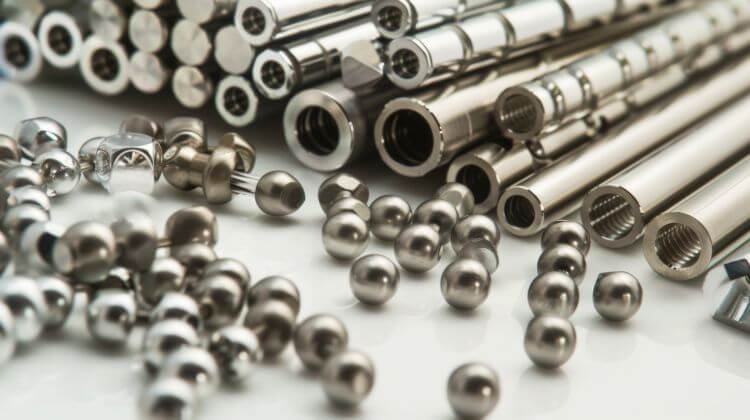

5. Nickel and Cobalt-Based Alloys

Nickel and cobalt alloys are essential for high-temperature and wear-resistant environments.

Examples:

• Inconel (Nickel-Based Superalloy) – Exceptional performance in aerospace turbines.

• Cobalt-Chrome (Co-Cr) – Biocompatible and wear-resistant, used in dental and orthopedic implants.

Applications:

• Jet engine components

• Medical implants and surgical instruments

• Energy and power generation systems

Advantages:

• Excellent performance at elevated temperatures

• High corrosion and wear resistance

• Essential for aerospace and medical industries

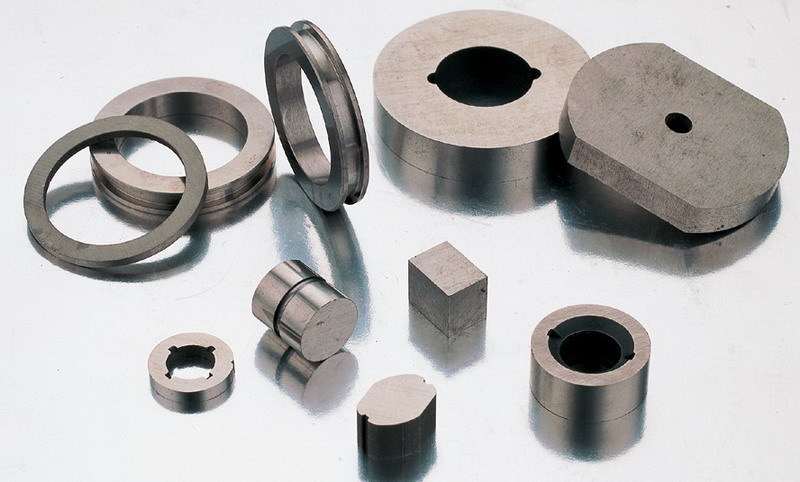

6. Magnetic Alloys

For electronics and sensor industries, magnetic materials are increasingly important in MIM.

Examples:

• Fe-Si alloys

• Soft magnetic stainless steels

Applications:

• Sensors and actuators

• Electric motor components

• Magnetic shielding in electronics

Advantages:

• High magnetic permeability

• Ability to form intricate shapes

• Essential for miniaturized electronics

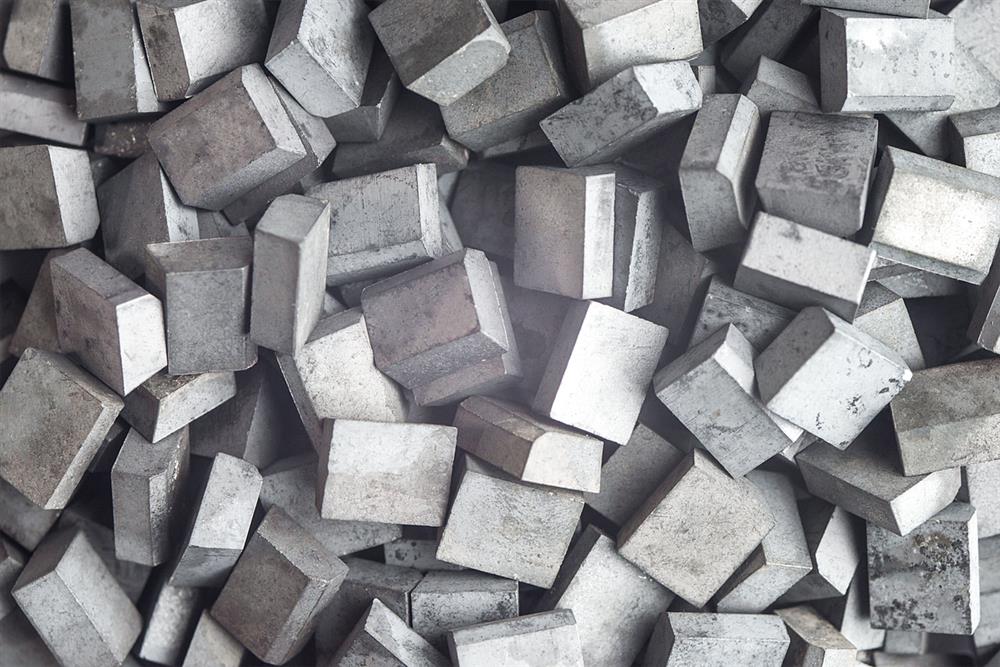

7. Tungsten and Carbide Materials

Tungsten and carbide-based alloys are used in ultra-demanding applications requiring density and hardness.

Examples:

• Tungsten heavy alloys

• Cemented carbides (WC-Co)

Applications:

• Radiation shielding components

• Cutting and drilling tools

• Military applications requiring high density

Advantages:

• Extremely high density

• Excellent wear resistance

• Withstands extreme conditions

Challenges:

• High processing difficulty

• More expensive compared to steels

Factors Influencing Material Selection in MIM

When selecting a material for metal injection molding, engineers must evaluate multiple factors:

1. Mechanical Requirements – Strength, toughness, fatigue resistance.

2. Corrosion Resistance – Especially critical in medical and marine industries.

3. Thermal Performance – High-temperature alloys for aerospace and automotive.

4. Biocompatibility – Titanium and cobalt alloys for implants.

5. Cost Considerations – Balance between performance and budget.

6. Production Volume – Economical scaling depends on material cost and powder availability.

Industry Applications of MIM Materials

Automotive Industry

• Stainless steels for fuel injection systems

• Low-alloy steels for gears and locks

• Magnetic alloys for EV sensors

Medical Industry

• Titanium for implants

• Cobalt-chrome for joint replacements

• Stainless steel for surgical tools

Aerospace & Defense

• Nickel alloys for turbines

• Titanium alloys for lightweight structures

• Tungsten alloys for defense systems

Consumer Electronics

• Stainless steel for watch cases

• Titanium for premium gadgets

• Magnetic alloys for smartphone sensors

Advantages and Limitations of Different MIM Materials

Material Category	Advantages	Limitations
Stainless Steel	Corrosion resistance, cost-effective,   versatile	Limited hardness
Low-Alloy Steel	Strong, economical	Needs surface treatment for corrosion
Tool Steel	High hardness, wear resistance	Brittle if not heat-treated correctly
Titanium	Lightweight, biocompatible	Expensive, difficult processing
Nickel/Cobalt Alloys	High temp resistance, biocompatibility	High cost
Magnetic Alloys	Functional for sensors, electronics	Lower mechanical strength
Tungsten/Carbides	Extreme hardness/density	Expensive, hard to process

Future Trends in MIM Materials

As we move deeper into 2025 and beyond, several trends are emerging in material development:

• Eco-friendly alloys – Focus on recyclability and sustainability.

• Customized powders – Tailored for specific flowability and shrinkage control.

• Hybrid materials – Combining MIM with additive manufacturing for unique alloys.

• Growth of titanium use – Driven by Germany’s medical and aerospace sectors.

• Magnetic innovations – Essential for electric mobility and sensor technology.

FAQs About Materials for Metal Injection Molding

1. What is the most commonly used MIM material?
Stainless steel (316L, 17-4 PH) is the most common due to its balance of performance and cost.

2. Are titanium MIM parts expensive?
Yes, titanium powders are costly, but their strength, lightweight nature, and biocompatibility justify the investment in medical and aerospace industries.

3. Can all metals be used in MIM?
Not all. The material must be available as fine powders with the right properties for injection and sintering.

4. How strong are MIM materials compared to wrought metals?
MIM parts can achieve 95–99% density, providing mechanical properties close to forged metals.

5. Which industries are driving new MIM material development?
Medical implants, aerospace components, and electric vehicle manufacturers are pushing the development of advanced alloys.

Conclusion

The materials for metal injection molding determine whether a project will succeed in terms of strength, cost, and performance. From cost-efficient stainless steels to advanced titanium and nickel alloys, the right choice allows manufacturers to meet the specific needs of automotive, aerospace, medical, and electronics industries.

As of 2025, the demand for high-performance, sustainable, and specialized MIM materials continues to grow—particularly in Germany, where precision engineering and sustainability remain top priorities.

Whether you need corrosion resistance, lightweight performance, or extreme hardness, there is a MIM material designed to meet your requirements. Selecting the right one will not only enhance product performance but also ensure cost efficiency and long-term success.
