Polyvinyl chloride (PVC) is one of the most commonly used thermoplastic polymers in modern manufacturing. It’s valued for its excellent durability, chemical resistance, and low cost. However, PVC is also known for being thermally sensitive — meaning its behavior under heat must be carefully managed.
Understanding the melting point of PVC is essential not only for achieving high-quality molded parts but also for preventing material degradation and equipment damage. Unlike other thermoplastics that have a sharp melting point, PVC behaves differently under heat. Let’s explore what makes its melting characteristics unique and how they influence injection molding operations.
PVC (Polyvinyl Chloride) is a semi-amorphous thermoplastic polymer. Its molecular structure consists of long chains of carbon atoms with chlorine atoms attached. This chlorine content — about 56% of the molecular weight — is what gives PVC many of its advantages, including flame resistance and chemical stability, but it also makes PVC more thermally unstable than other plastics.
Because of this structure, PVC does not behave like a crystalline polymer (such as polypropylene or nylon), which transitions sharply from solid to liquid. Instead, PVC softens gradually over a range of temperatures.
Unlike crystalline materials that have a single, well-defined melting point, PVC has a “melting range.” This is because its amorphous regions soften gradually as the temperature increases.
Typical Softening and Melting Temperatures
Softening point (onset of flow): around 75°C – 105°C (167°F – 221°F)
Glass transition temperature (Tg): approximately 80°C
Processing/melting range: 160°C – 210°C (320°F – 410°F)
At around 160°C, PVC begins to soften and flow, but it does not become fully molten like other plastics. At about 180°C – 200°C, it reaches a processable viscous state suitable for injection molding. However, once the temperature exceeds 200°C – 210°C, PVC begins to decompose, releasing hydrogen chloride (HCl) gas.
This means that the effective processing window for PVC is very narrow — typically just 20–30°C. Managing this small range is one of the key challenges in PVC injection molding.
The melting characteristics of PVC depend on several factors, including formulation, additives, and the type of PVC used.
The addition of plasticizers (such as phthalates or non-phthalate alternatives) can significantly lower PVC’s softening point. This is why flexible PVC melts at lower temperatures than rigid PVC.
Rigid PVC (uPVC): Melting range around 175°C – 200°C
Flexible PVC: Melting range around 160°C – 180°C
Plasticizers work by reducing the intermolecular forces between PVC chains, allowing them to slide past one another more easily when heated.
Thermal stabilizers, such as calcium-zinc or organotin compounds, don’t directly change the melting point but extend the stability window before decomposition occurs. They allow PVC to remain processable at higher temperatures for longer periods, which is vital for injection molding and extrusion.
PVC with a higher molecular weight typically has a higher softening point and greater melt viscosity. This means more energy is needed to achieve the same level of flow, so precise control of barrel temperatures and injection pressure is required.
Adding fillers like calcium carbonate or glass fibers can slightly raise or lower the apparent melting temperature, depending on their type and concentration. These additives affect the heat conduction and softening behavior of the PVC compound.
PVC’s behavior under heat can be divided into distinct stages:
Temperature Range (°C) | Behavior |
Below 80°C | Rigid solid state (below glass transition) |
80°C – 160°C | Softening and transition phase; molecular motion increases |
160°C – 200°C | Viscous flow begins; suitable for molding |
200°C – 210°C | Onset of degradation; HCl release starts |
Above 210°C | Rapid decomposition, color change, and polymer breakdown |
This sequence shows why precise temperature control is critical. Even small temperature overshoots can lead to material damage, surface burn marks, or yellowing.
In injection molding, molten PVC must flow into the mold cavity under controlled conditions. Because its melting and decomposition points are close, process engineers must carefully balance heating, shear, and cooling.

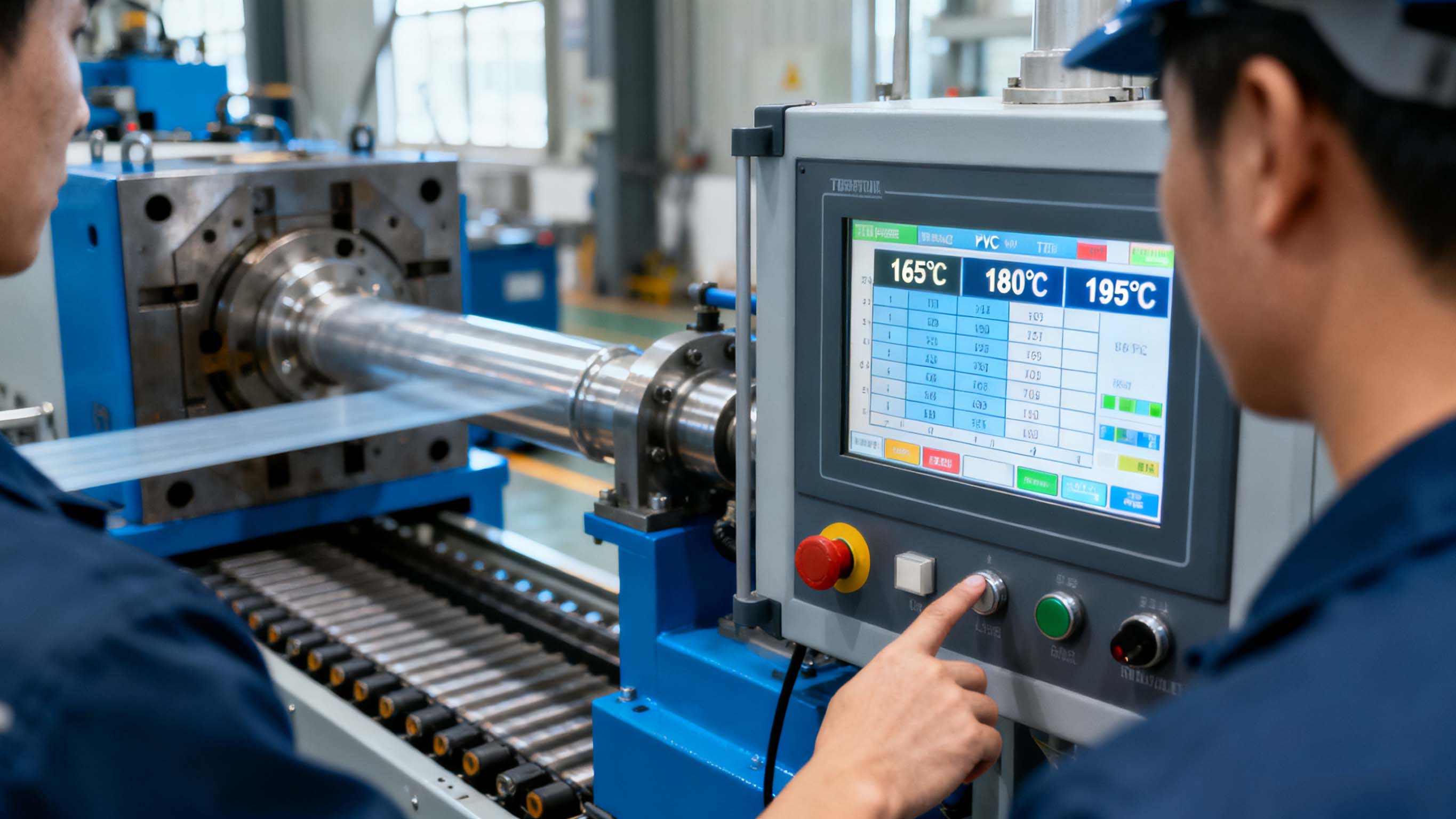

The barrel of the injection molding machine must maintain a gradual temperature profile, typically:
Feed zone: 160°C
Compression zone: 170°C – 180°C
Metering zone: 185°C – 190°C
If temperatures are uneven or too high, localized overheating can decompose the PVC, producing HCl gas and black streaks in the molded parts.
Shear from the screw movement also contributes to melting. A low-shear screw design (compression ratio around 2:1) helps minimize frictional heat, preventing premature decomposition. Unlike other polymers, PVC relies more on external heat than shear heat to melt.
High injection speeds can increase shear and raise the melt temperature above the safe range. A slow-to-moderate injection speed ensures consistent flow and reduces the risk of degradation.
Since PVC has low thermal conductivity, it cools slowly. Mold temperatures are usually kept between 30°C and 60°C to allow controlled solidification and reduce internal stresses.
During processing, operators can monitor several signs to detect when PVC is overheating or not properly melted:
Discoloration: Yellow or brown streaks indicate the start of decomposition.
Fumes or odor: HCl gas release has a sharp, irritating smell.
Surface defects: Rough or burned areas can result from uneven melting.
Brittleness: Degraded PVC parts become fragile and lose impact strength.
If any of these occur, temperatures or residence time should be adjusted immediately.
Use temperature controllers with high precision to maintain the narrow processing range.
Pre-test compound formulations to understand their specific softening and decomposition behavior.
Avoid long residence times — purge the barrel regularly.
Use corrosion-resistant materials in molds and barrels to withstand HCl release.
Employ stabilizer-rich compounds to enhance thermal stability.
Keep injection speed moderate to limit shear heating.
Understanding PVC’s melting characteristics is not just academic — it directly impacts production quality and equipment longevity.
Product quality: Precise control ensures smooth flow, strong welds, and glossy surfaces.
Process safety: Avoids toxic gas generation and mold corrosion.
Cost efficiency: Prevents material waste and reduces maintenance downtime.
Energy optimization: Knowing the exact processing range minimizes unnecessary heating.
In short, the melting point defines the boundaries between successful processing and material failure.
The melting point of PVC is not a single temperature but a controlled range between 160°C and 210°C, where the material transitions from solid to a workable viscous state before decomposition begins. This narrow thermal window demands precise control of heat, shear, and residence time during injection molding.

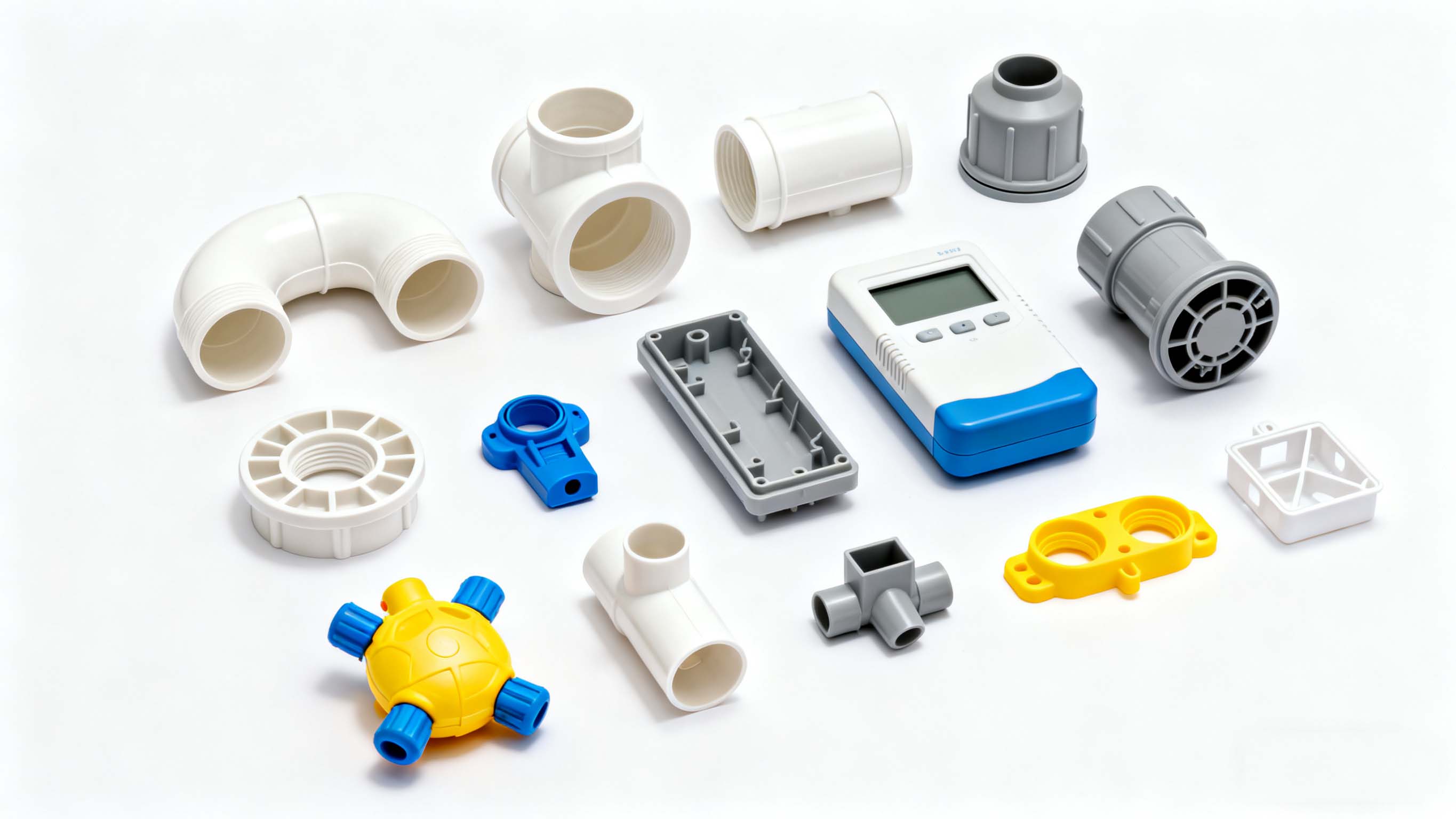

PVC’s unique melting behavior, influenced by additives, molecular structure, and processing conditions, is the key to its success in applications ranging from plumbing fittings to automotive parts.
For manufacturers and engineers, mastering PVC’s melting characteristics means achieving better quality, longer mold life, and safer, more efficient production.
