About The Core and Cavity Placement in Injection Molding

Injection molding is a versatile and widely used manufacturing process for producing parts from thermoplastic and thermosetting materials. The quality, precision, and efficiency of injection molding depend on a variety of factors, one of the most critical being the design and placement of the core and cavity within the mold. These two components are essential in shaping the final product and directly influence the overall performance of the injection molding process.

In this article, we will dive deep into the concept of core and cavity placement in injection molding, its significance, factors influencing placement, and how it impacts part quality and cycle time.

Table of Contents

1. What Are Core and Cavity in Injection Molding?

2. The Importance of Core and Cavity Placement

3. Factors Affecting Core and Cavity Placement

4. Core and Cavity Design Considerations

5. Types of Core and Cavity Placements

6. Challenges in Core and Cavity Placement

7. Techniques to Optimize Core and Cavity Placement

What Are Core and Cavity in Injection Molding?

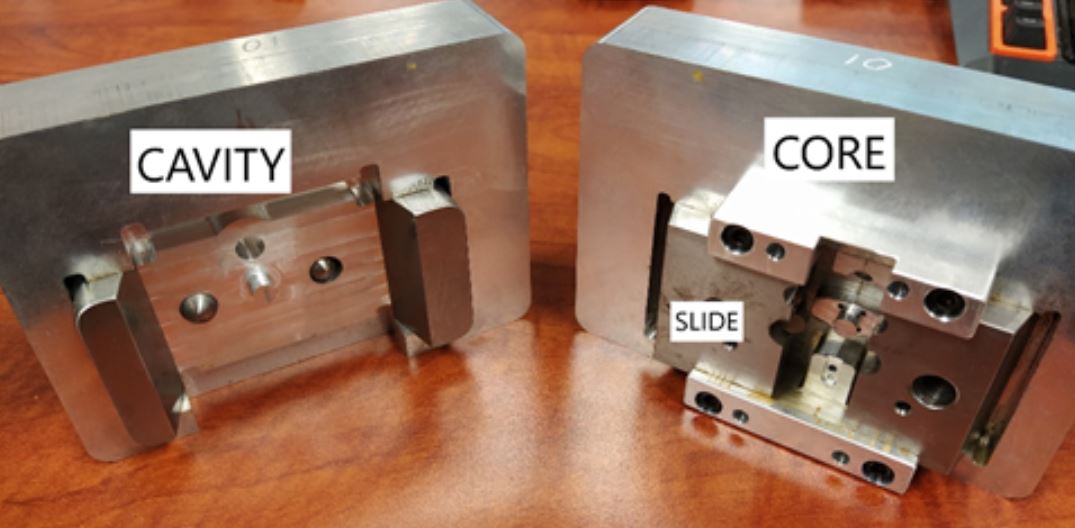

In injection molding, the mold is divided into two main components: the core and the cavity.

• Core: The core is the part of the mold that shapes the internal features of the molded part. It is typically located in the stationary half of the mold and forms the negative of the inner surface of the part. The core is essential for shaping holes, channels, or other internal geometries in the final product.

• Cavity: The cavity is the opposite part of the mold that forms the outer surface of the molded product. It is usually located in the movable half of the mold and provides the negative of the external shape of the part.

When molten plastic is injected into the mold, it fills the cavity around the core. Once cooled, the part solidifies and takes the shape defined by the core and cavity. Proper placement of the core and cavity is critical to ensuring that the part is accurately formed, defects are minimized, and production efficiency is maximized.

The Importance of Core and Cavity Placement

The placement of the core and cavity plays a pivotal role in the outcome of the injection molding process. Here are some reasons why proper core and cavity placement is crucial:

1. Accuracy of Part Design

Accurate core and cavity placement ensures that the part dimensions are correctly reproduced. Even slight errors in placement can lead to variations in the final product, which can affect its functionality, fit, and appearance.

2. Part Quality and Strength

The strength, durability, and performance of the molded part depend on the uniform distribution of material within the mold. Improper core and cavity placement may lead to uneven material thickness, which can cause weak spots in the molded part, reducing its mechanical properties.

3. Minimizing Defects

Core and cavity placement can have a significant impact on the occurrence of molding defects such as warping, sink marks, and air traps. Proper placement can reduce the likelihood of these defects and improve part quality.

4. Optimizing Cycle Time

Efficient core and cavity placement can help reduce cycle time by ensuring that the mold fills evenly and cools effectively. Improper placement can lead to uneven filling or cooling, resulting in longer cycle times.

5. Cost Efficiency

Efficient placement of the core and cavity helps optimize material flow, which can reduce material waste and lower overall production costs. It can also reduce machine downtime and maintenance costs associated with mold wear and tear.

Factors Affecting Core and Cavity Placement

Several factors need to be considered when deciding on the placement of the core and cavity within the mold. These include:

1. Part Geometry and Complexity

The complexity of the part design plays a significant role in determining the ideal location for the core and cavity. Parts with intricate internal features or complex geometries may require special consideration to ensure the core and cavity can be properly placed and accessed for cooling, injection, and ejection.

2. Mold Flow Analysis

Mold flow analysis is a computer-aided simulation used to predict how molten plastic will flow inside the mold. Analyzing the flow of material can help determine the optimal placement of the core and cavity to ensure even filling and avoid issues such as short shots or air traps.

3. Mold Cooling Efficiency

Effective cooling is essential for minimizing cycle time and achieving uniform material properties in the part. The placement of the core and cavity should take into account the design of the cooling system, as cooling channels need to be appropriately positioned to remove heat from the mold effectively.

4. Ejection System Design

The ejection system must be taken into account when placing the core and cavity. The design of the ejection system can influence the ease with which the part is ejected from the mold. Poor placement may lead to difficulties in part removal or part deformation during ejection.

5. Material Selection

Different materials have different flow characteristics, cooling times, and shrinkage rates. The type of material being used can influence how the core and cavity are positioned. For example, materials with high viscosity may require larger gates or specific placement of the core to ensure proper filling.

Core and Cavity Design Considerations

Designing the core and cavity requires careful planning and a deep understanding of both the part and mold characteristics. Some of the key design considerations include:

1. Gate Placement

Gates are the entry points where molten plastic is injected into the mold. The placement of the gate influences how the material fills the cavity. Proper gate placement is crucial for ensuring that the core and cavity are filled uniformly and that defects like weld lines or air traps are minimized.

2. Material Flow Paths

In complex molds, the flow path of the injected material must be carefully planned to avoid issues like material degradation, inadequate filling, or improper packing. The core and cavity placement should ensure that the material flows smoothly throughout the mold, especially in areas with varying wall thicknesses.

3. Uniform Wall Thickness

The core and cavity placement should promote uniform wall thickness throughout the molded part. Varying wall thickness can lead to problems like sink marks, warping, or inconsistent cooling. Proper placement can help achieve consistent wall thickness by optimizing the flow path and cooling efficiency.

4. Cooling Channel Placement

Cooling channels are essential for reducing cycle time and maintaining part quality. The core and cavity design must incorporate efficient cooling channels to remove heat from the mold. The placement of these channels must be strategically positioned to ensure even cooling and minimize cycle time.

Types of Core and Cavity Placements

There are several types of core and cavity placements in injection molding, depending on the part geometry, mold design, and manufacturing requirements:

1. Single Cavity Mold

In a single cavity mold, there is only one core and one cavity. This type of mold is suitable for low to medium-volume production and parts with relatively simple geometries. The core and cavity placement is typically straightforward.

2. Multi-Cavity Mold

A multi-cavity mold contains multiple cores and cavities, allowing for the simultaneous production of multiple parts in a single injection cycle. The core and cavity placement must be carefully planned to ensure uniform filling and cooling across all cavities.

3. Family Molds

Family molds are used for producing multiple parts of different shapes but similar sizes in one cycle. The core and cavity placement in family molds requires careful consideration to ensure that each part receives the correct amount of material and that the parts are ejected simultaneously.

4. Hot Runner Molds

Hot runner molds use a heated channel to deliver molten plastic to the cavity. The core and cavity placement in hot runner molds needs to account for the heated channels and ensure that the material flows evenly to each cavity without premature solidification.

Challenges in Core and Cavity Placement

While core and cavity placement is crucial to the success of injection molding, there are several challenges that manufacturers may face during this phase:

1. Material Flow Problems

Improper placement can lead to material flow issues such as incomplete filling or overpacking. This can result in defective parts that may need to be scrapped.

2. Cooling Issues

If the core and cavity placement doesn't allow for efficient cooling, the mold may experience uneven cooling, leading to warping, sink marks, or other defects in the final part.

3. Ejection Difficulties

If the core and cavity placement is not aligned with the ejection system, the part may become stuck in the mold, or the ejection system may cause part deformation.

4. Mold Wear and Tear

Improper placement of the core and cavity can lead to increased wear on the mold, particularly at the gates or in areas of high material flow. This can reduce the mold's lifespan and lead to increased maintenance costs.

Techniques to Optimize Core and Cavity Placement

There are several strategies and techniques that can be used to optimize core and cavity placement in injection molding:

1. Advanced Mold Flow Simulation

Using mold flow simulation software helps predict how the molten material will flow inside the mold, enabling manufacturers to optimize core and cavity placement for even filling and minimal defects.

2. Hot Runner Technology

Incorporating hot runner technology into the mold design can help optimize material flow, reduce cycle times, and minimize waste. This can also improve core and cavity placement by ensuring consistent material distribution.

3. Multiple Gate Designs

Using multiple gates or strategically placing gates in different locations can help improve material flow and reduce filling issues, particularly in complex parts.

4. Optimized Cooling Channel Placement

Using computer-aided design (CAD) software to simulate cooling efficiency and optimize cooling channel placement can help reduce cycle time and improve part quality.

Conclusion

The core and cavity placement in injection molding is a critical element in ensuring the production of high-quality, defect-free parts. By understanding the importance of core and cavity placement, considering the factors that influence placement, and utilizing advanced techniques such as mold flow analysis and optimized cooling systems, manufacturers can significantly improve the efficiency and quality of the injection molding process.

Proper design and placement of the core and cavity not only contribute to better part quality but also help reduce cycle times, improve energy efficiency, and lower production costs. As technology advances, manufacturers will continue to refine their techniques for core and cavity placement, ensuring that injection molding remains a versatile and cost-effective manufacturing solution.
