Injection molding is a highly versatile and widely used manufacturing process for producing plastic parts in high volumes with excellent repeatability and precision. At the heart of this process lies a critical component known as the mold base. While the mold cavity and core often receive the most attention due to their direct influence on part geometry, the mold base is the structural and functional foundation that holds everything together.
In this article, we'll explore what a mold base is, its key components, functions, materials, types, and how it contributes to the performance and efficiency of the injection molding process.

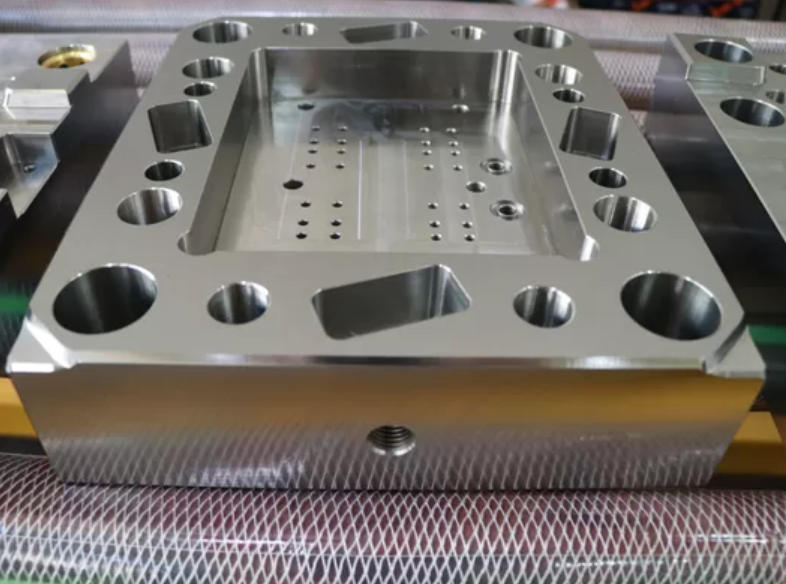

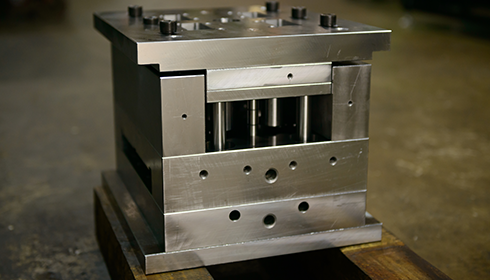

The mold base is the supporting structure of an injection mold. It houses and aligns all of the critical tooling components such as the cavity, core, ejector system, cooling channels, and guiding mechanisms. Simply put, the mold base is the framework that enables the molding process to happen efficiently and accurately.
Without a properly designed mold base, even the most sophisticated mold cavities cannot function effectively. It ensures the correct alignment of mold plates, accommodates moving parts, and handles the mechanical and thermal stresses involved in high-pressure plastic injection.

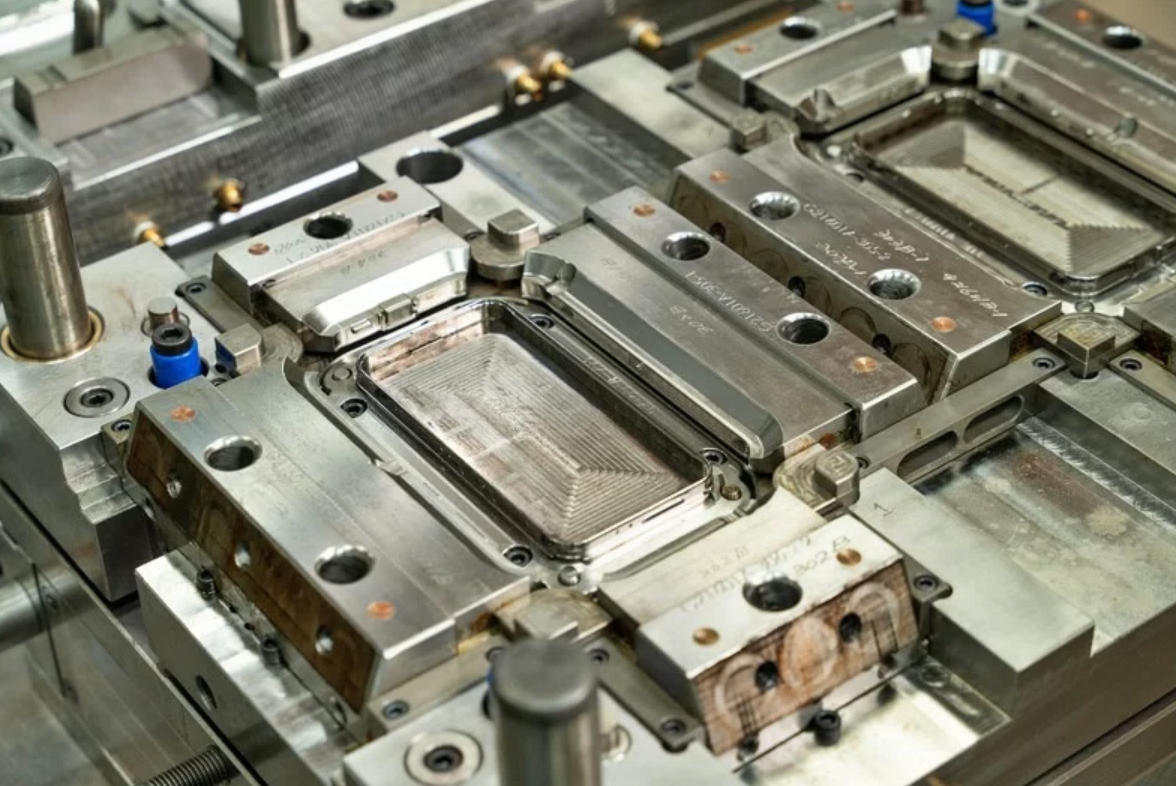

A mold base typically consists of multiple precision-machined steel plates and hardware components. Each of these parts serves a specific purpose in the overall mold assembly.
Main Plates and Components:
Component | Function |
Top Clamping Plate | Attaches the mold to the injection molding machine (stationary platen) |
Cavity Plate (A Plate) | Holds the cavity side of the mold (visible part surface) |
Core Plate (B Plate) | Contains the core side of the mold (inner part geometry) |
Bottom Clamping Plate | Secures the mold to the moving platen of the machine |
Support Plate | Provides structural stability and supports the ejector system |
Ejector Retainer Plate | Holds ejector pins in place |
Ejector Plate | Moves the ejector pins forward to release the molded part |
Additional Features:
Leader Pins and Bushings: Ensure perfect alignment between cavity and core sides.
Sprue Bushing: Guides molten plastic from the nozzle into the mold.
Cooling Channels: Allow water circulation to control mold temperature.
Ejector Pins: Push the part out of the mold after solidification.
Guide Pillars and Guide Bushings: Provide alignment and precision during mold opening and closing.
The mold base serves several essential functions that enable the injection molding process to work:
The mold base aligns the cavity and core halves accurately using guide pins and bushings, ensuring that parts are formed correctly without flash or misalignment.
The mold base houses the cooling system, which regulates the mold's temperature during cycles. Efficient cooling is crucial for maintaining dimensional accuracy and reducing cycle time.
It supports the ejector mechanism, which removes the molded part from the cavity after it has cooled and solidified.
The mold base absorbs and distributes the significant mechanical pressures during injection, ensuring the mold does not deform or fail.
Mold bases can be reused with different cavities or cores, allowing manufacturers to create families of parts with interchangeable inserts.
The mold base must withstand repeated mechanical loading, abrasion, and thermal cycling. Therefore, it's typically made from hardened tool steels and other high-performance metals.
Common Mold Base Materials:
Material | Characteristics | Applications |
P20 Steel | Pre-hardened, machinable, good toughness | General-purpose mold bases |
S50C | Carbon steel, cost-effective | Base structures not subject to wear |
420 Stainless Steel | Corrosion-resistant, polishable | Molds requiring high surface finish |
H13 Tool Steel | High hardness, thermal fatigue resistant | High-volume or high-temperature molds |
Aluminum (for base plates) | Lightweight, good heat transfer | Low-volume, quick-turnaround molds |
Choosing the right material depends on part volume, molding temperature, budget, and required durability.
Mold bases come in various configurations to accommodate different molding processes, part designs, and production volumes.
These are pre-engineered and commercially available from mold base suppliers. Standard bases reduce lead time and cost, and are often used for prototyping or standard parts.
Designed from scratch for complex molds or specialized applications. Custom bases allow more flexibility in size, insert placement, and additional mechanisms.
Modular systems that allow swapping of cores and cavities without replacing the entire mold base. Ideal for product families and short runs.
Two-Plate Mold: Simplified design with one parting line; used for straightforward parts.
Three-Plate Mold: Includes a runner plate, allowing better gate placement and reduced waste.
A mold base must be precisely designed and assembled to ensure reliable operation and high-quality part production. Considerations include:
Ensure the base can withstand the clamping force of the molding machine and accommodate the desired shot size.
Efficient cooling design shortens cycle time and improves part consistency. Channels should be symmetrical and close to the cavity/core surface.
Choose between pin ejection, sleeve ejection, or stripper plates, depending on the part’s shape and undercuts.
Select appropriate steel grades for wear areas (e.g., sliding components, core pins) to extend mold life.
Design the mold base to allow easy access to internal components for maintenance and cleaning.
Mold base production requires precision engineering and machining to ensure all components fit and function correctly.
Typical Steps:
Steel Selection and Cutting
Milling and Drilling for channels, pins, and ejector holes
Heat Treatment (if required)
Grinding and Surface Finishing
Assembly with alignment pins and bushing installation
Inspection using CMM (Coordinate Measuring Machines)
A well-designed mold base directly impacts:
Cycle Time: Efficient cooling and ejection mechanisms reduce overall production time.
Part Quality: Proper alignment and thermal management ensure dimensional accuracy.
Tool Longevity: Quality materials and precise assembly minimize wear and prevent failures.
Maintenance: Easier access and standardized components reduce downtime.
In high-volume production environments, even minor inefficiencies in the mold base design can result in significant cost over time.
Problem | Possible Cause | Solution |
Misalignment | Worn guide pins | Replace pins/bushings, tighten tolerances |
Poor cooling | Inefficient channel design | Redesign for optimized thermal flow |
Ejection failures | Bent pins or stuck parts | Use hardened pins, add air eject or lifters |
Cracks or deformation | Material fatigue or overpressure | Use higher-grade steel, verify press settings |
Flash on parts | Poor alignment or wear | Re-grind plates, improve alignment |
The mold base may not be the visible part of the molded product, but it plays a foundational role in the injection molding process. From structural support to cooling, alignment, and ejection, the mold base ensures that every molding cycle runs efficiently, accurately, and reliably.
Understanding the components, materials, types, and design considerations of mold bases empowers product designers, toolmakers, and manufacturers to build better molds, reduce cycle times, and increase tool life—all of which lead to higher productivity and lower costs.
Key Takeaways:
The mold base is the backbone of an injection mold, holding all critical components in place.
It must be precisely designed to handle thermal, mechanical, and alignment needs.
Choosing the right materials and layout can improve part quality and cycle efficiency.
Mold bases can be standard, custom, or modular depending on production requirements.
