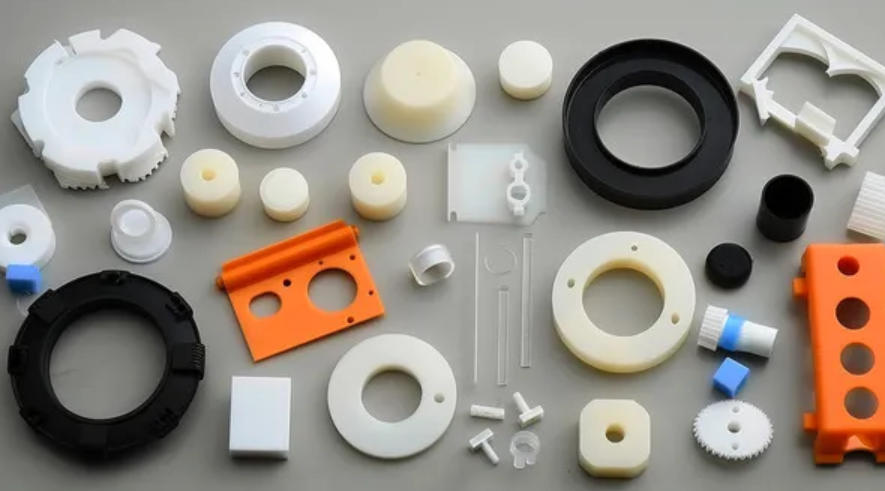

Injection molding is one of the most widely used manufacturing processes for producing plastic parts — from everyday consumer goods to high-precision automotive and medical components. While many factors influence the quality of an injection-molded part — such as temperature, injection speed, and cooling time — one often overlooked but critical parameter is back pressure.
In this article, we’ll break down what back pressure is, why it matters, how it affects product quality, and how to optimize it for consistent molding results.

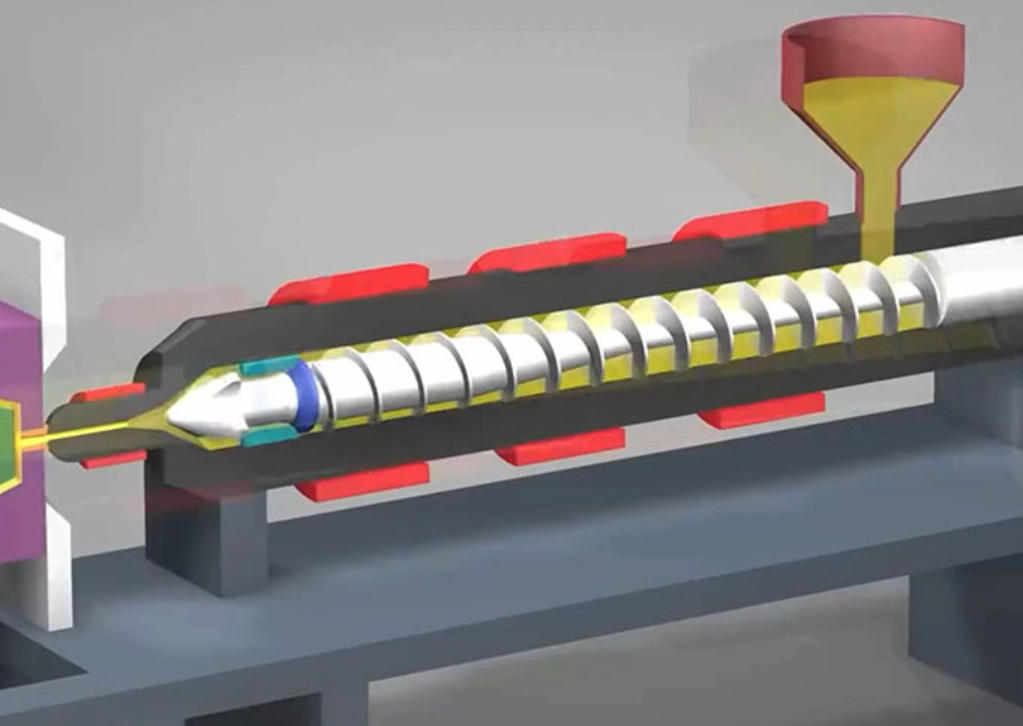

In simple terms, back pressure is the resistance applied by the hydraulic system to the screw as it rotates and moves backward during the plasticizing (or recovery) phase of the injection molding cycle.
When the screw rotates, it melts the plastic pellets and conveys the molten material toward the front of the barrel. As the molten plastic accumulates in front of the screw, the screw gradually moves backward. However, the machine applies a certain hydraulic resistance to control this backward motion — and that resistance is what we call back pressure.
In formula form:
Back Pressure = Hydraulic Pressure applied to the screw during recovery
It’s usually measured in units like bar, MPa, or psi.
Back pressure plays a vital role in controlling the melt quality and improving the consistency of molded parts. Without appropriate back pressure, the molten plastic might not mix properly, leading to inconsistent product quality.
Here’s what happens during plasticizing:
Plastic pellets are fed into the barrel through the hopper.
The rotating screw conveys and melts the material via friction and heat.
As the molten plastic accumulates at the front of the screw, the screw moves backward.
Back pressure resists this backward motion, forcing the screw to compress and mix the molten material more uniformly.
This means back pressure directly influences:
Melt temperature and homogeneity
Density and viscosity of the plastic melt
Degassing (removal of trapped air or moisture)
Shot consistency and part weight stability
Although back pressure might seem like a minor adjustment, it can dramatically impact the final quality of molded parts. Below are the main reasons why it matters.
When back pressure is applied, the molten plastic is forced to flow backward through the screw channels and around the flights. This additional mixing ensures a uniform temperature and color distribution in the melt. Without enough back pressure, the material might not mix well, resulting in streaks, color variations, or uneven part strength.
Back pressure helps squeeze out trapped air and moisture from the melt. When the screw compresses the material under higher resistance, air bubbles and volatile gases are released and vented through the hopper. This reduces the risk of voids, splay marks, or bubbles in the finished part.
Consistent back pressure ensures that each shot (the amount of material prepared for injection) is the same in volume and density. This improves dimensional stability and part weight consistency, especially important for high-precision products.
When coloring agents, fillers, or additives are used, back pressure helps distribute them evenly throughout the polymer melt. This results in uniform color and balanced mechanical properties across all molded parts.
A uniform and well-mixed melt can fill the mold cavity more evenly, reducing defects such as flow marks or weld lines. This results in smoother, more aesthetic surfaces — a must for consumer-facing products.
Like many injection molding parameters, balance is the key. Both too low and too high back pressure can cause serious molding problems.
Condition | Possible Problems | Explanation |
Too Low Back Pressure | Poor color mixing, air entrapment, uneven melt temperature, inconsistent shot size | Insufficient resistance leads to poor melt homogenization and degassing |
Too High Back Pressure | Excessive melt temperature, longer cycle time, material degradation, screw wear, flash | Over-compression causes too much shear heat and delays screw recovery |
Example:
If you’re molding ABS or polycarbonate (PC), too much back pressure can easily cause burn marks or degradation because these resins are sensitive to overheating.
Conversely, if you’re molding polypropylene (PP) or polyethylene (PE), too little back pressure can lead to sink marks or uneven wall thickness due to poor packing and mixing.
The optimal back pressure depends on the type of polymer used. Here are some general guidelines:
Material | Typical Back Pressure Range |
Polypropylene (PP) | 5 – 10 bar |
Polyethylene (PE) | 3 – 8 bar |
Acrylonitrile Butadiene Styrene (ABS) | 5 – 15 bar |
Polycarbonate (PC) | 10 – 20 bar |
Nylon (PA) | 5 – 15 bar |
Polystyrene (PS) | 3 – 10 bar |
PVC | 3 – 8 bar (low to avoid degradation) |
Tip: Always start with the manufacturer’s recommended value, then fine-tune based on part quality and cycle time.
Most modern injection molding machines allow you to adjust back pressure directly through the control panel. Here’s a general procedure:
Start with Low Pressure
Begin at the lowest possible setting (e.g., 2–5 bar) to observe the basic melt behavior.
Gradually Increase
Raise back pressure in small increments (e.g., 2–3 bar at a time) while checking for improved melt uniformity and part consistency.
Observe Melt and Part Quality
Look for color uniformity, absence of bubbles, and stable shot weight. These are signs of proper melt mixing.
Monitor Screw Recovery Time
Excessive back pressure increases recovery time. If the screw takes too long to recharge, reduce pressure slightly.
Fine-Tune for Each Material and Mold
Once an optimal setting is found, record it as part of the process parameters for future production runs.
Back pressure doesn’t work in isolation — it interacts closely with other molding parameters.
Higher screw speed increases shear heating. When combined with high back pressure, it can overheat the melt. Lower the screw speed if you raise the back pressure significantly.
Raising back pressure increases melt temperature naturally. So, you might not need as high a barrel temperature when back pressure is optimized.
Higher back pressure means longer screw recovery, increasing cycle time. Finding the right balance is crucial for maintaining productivity.
Inconsistent back pressure causes variations in melt density, leading to inconsistent part weights or dimensions. Keeping back pressure stable ensures repeatability.
While moderate back pressure improves melt quality, it also increases energy consumption and mechanical load on the screw and barrel. High resistance means the hydraulic system must work harder, consuming more power and accelerating screw wear.
To minimize wear and energy costs:
Keep back pressure as low as possible while maintaining melt quality.
Use proper lubrication and maintenance.
Choose wear-resistant screw materials if molding filled or abrasive resins.
Symptom | Likely Cause | Suggested Fix |
Part weight varies | Inconsistent back pressure | Check hydraulic system and recalibrate settings |
Silver streaks or bubbles | Low back pressure or moisture | Increase back pressure slightly and dry resin properly |
Burn marks or dark streaks | Excessive back pressure causing overheating | Reduce pressure or screw speed |
Color streaks or uneven color | Low back pressure | Increase gradually for better mixing |
Long cycle time | Too high back pressure | Lower setting to speed up recovery |
Use the Minimum Effective Pressure
Apply just enough back pressure to achieve good melt mixing and shot consistency — nothing more.
Monitor Melt Temperature Regularly
Keep track of any temperature rise caused by shear heat from back pressure.
Record and Standardize Settings
For consistent production, always document back pressure values along with other molding parameters.
Avoid Sudden Adjustments
Small incremental changes give better control and prevent overcompensation.
Train Operators Properly
Ensure machine operators understand the effects of back pressure and how to fine-tune it safely.
Back pressure in injection molding may seem like a small parameter, but it has a big impact on melt quality, consistency, and part performance. By applying the right amount of resistance during the plasticizing phase, manufacturers can achieve:
Better color and additive mixing
Reduced air bubbles and voids
More consistent shot sizes
Improved surface finish and mechanical strength
However, excessive back pressure can lead to overheating, material degradation, and longer cycle times. The key is to find the balance point that delivers high-quality parts with minimal energy consumption and machine wear.
Whether you’re molding simple plastic housings or complex engineering components, understanding and controlling back pressure is essential for producing repeatable, high-quality results.
The following is an introductory video about back pressure in injection molding, which can help you better understand what back pressure in injection molding is.
Video Link: https://www.youtube.com/watch?v=aDa8DvSAEi0
