What Is Clamping Force in Injection Molding?

In the world of injection molding, precision and control are everything. Every stage of the molding process — from melting and injecting the plastic to cooling and ejecting the finished part — must be carefully monitored to ensure consistent quality. Among these parameters, one of the most critical yet sometimes misunderstood factors is clamping force.

So, what exactly is clamping force in injection molding, why does it matter, and how is it calculated? Let’s break it down in detail.

1. Definition: What Is Clamping Force?

Clamping force is the amount of force applied by the injection molding machine to keep the two halves of the mold securely closed during the injection process.

When molten plastic is injected into the mold cavity under high pressure, it naturally tries to push the mold halves apart. The clamping system must generate enough opposing force to prevent the mold from opening and causing flashing (a thin layer of excess plastic that seeps out of the cavity).

In simple terms:

Clamping force = the power that holds the mold closed against the injection pressure.

It is measured in tons or kilonewtons (kN), depending on the region or manufacturer.

2. Why Clamping Force Is Important

Maintaining the correct clamping force is essential for part quality, process stability, and machine efficiency.

If the force is too low, several issues can arise:

• The mold may slightly open during injection, leading to flash formation.

• The part dimensions may become inconsistent due to pressure loss.

• Mold damage can occur if repeated flashing causes wear on the parting line.

If the force is too high, it’s not good either:

• It increases mechanical stress on the mold and machine.

• It can lead to premature wear on tie bars and platens.

• It consumes more energy than necessary.

• It may cause venting issues, trapping air and leading to defects.

Therefore, the goal is to set an optimal clamping force — just enough to keep the mold sealed without overstressing the system.

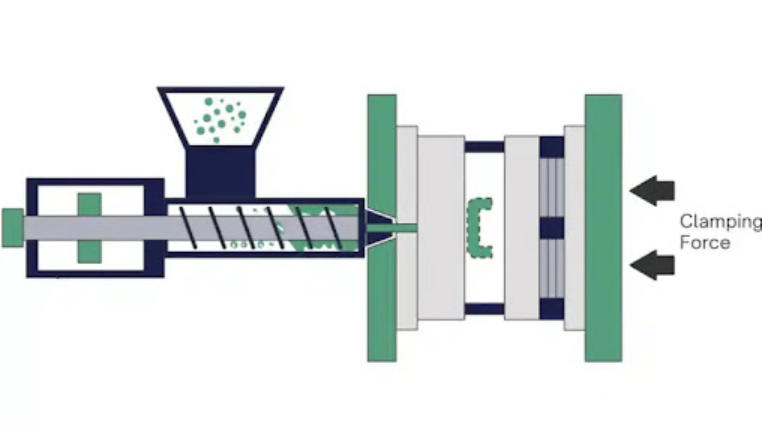

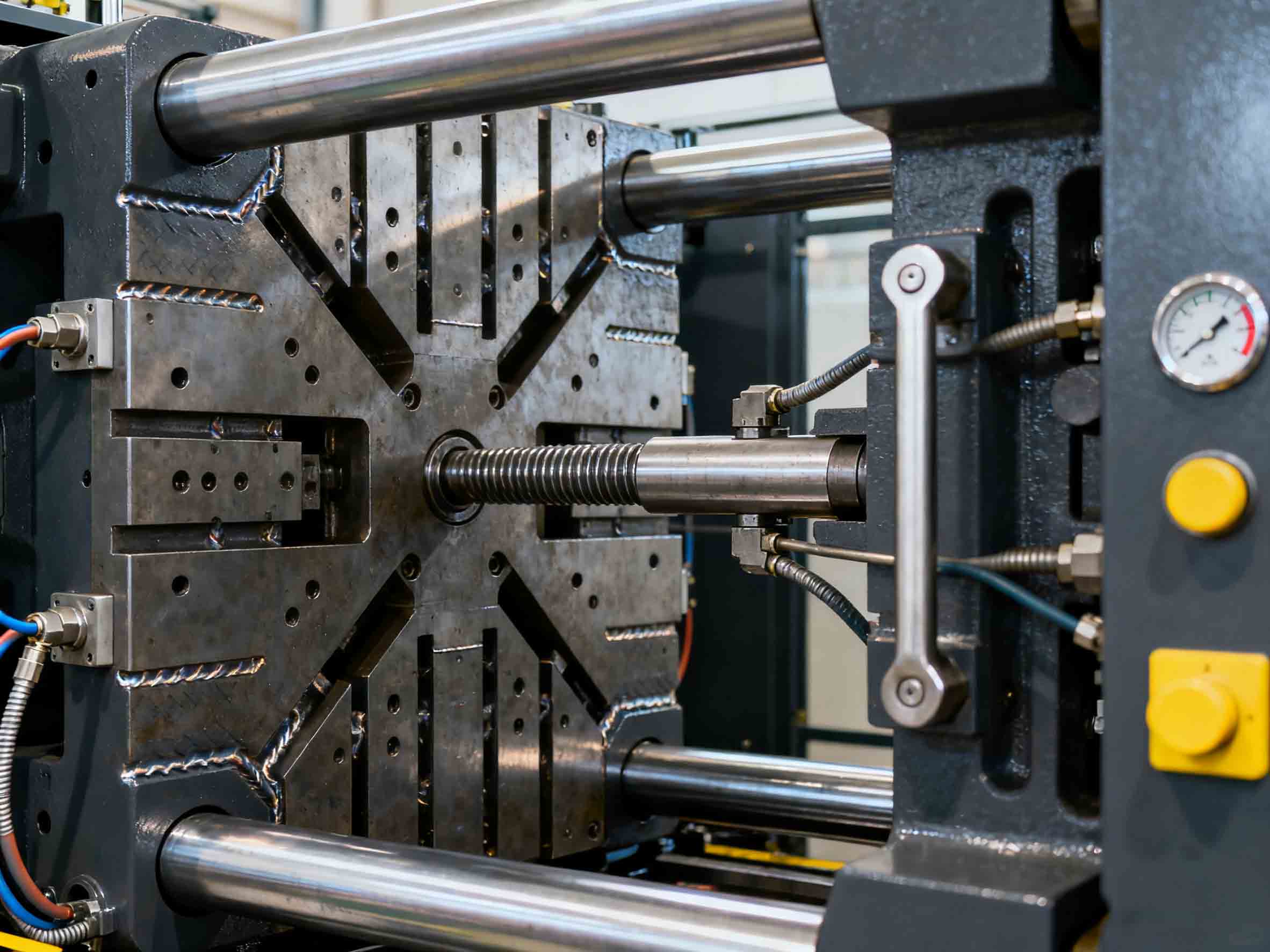

3. How Clamping Force Works in Injection Molding Machines

Injection molding machines are designed with a clamping unit that provides this holding force. There are two main types of clamping systems:

a. Hydraulic Clamping

Hydraulic machines use pressurized hydraulic oil to move and lock the mold. The hydraulic piston exerts force on the mold platens to maintain closure during injection.

Advantages:

• High force capacity

• Suitable for large molds

Disadvantages:

• Slower operation

• Higher energy consumption

• Requires regular maintenance of hydraulic components

b. Mechanical or Toggle Clamping

Toggle systems use a series of mechanical links (like a toggle joint) to multiply force as the mold closes. Once the toggle is fully extended, it locks the mold in position.

Advantages:

• Faster cycle times

• Lower energy use

• Excellent repeatability

Disadvantages:

• More complex mechanical setup

• Limited in very large machines

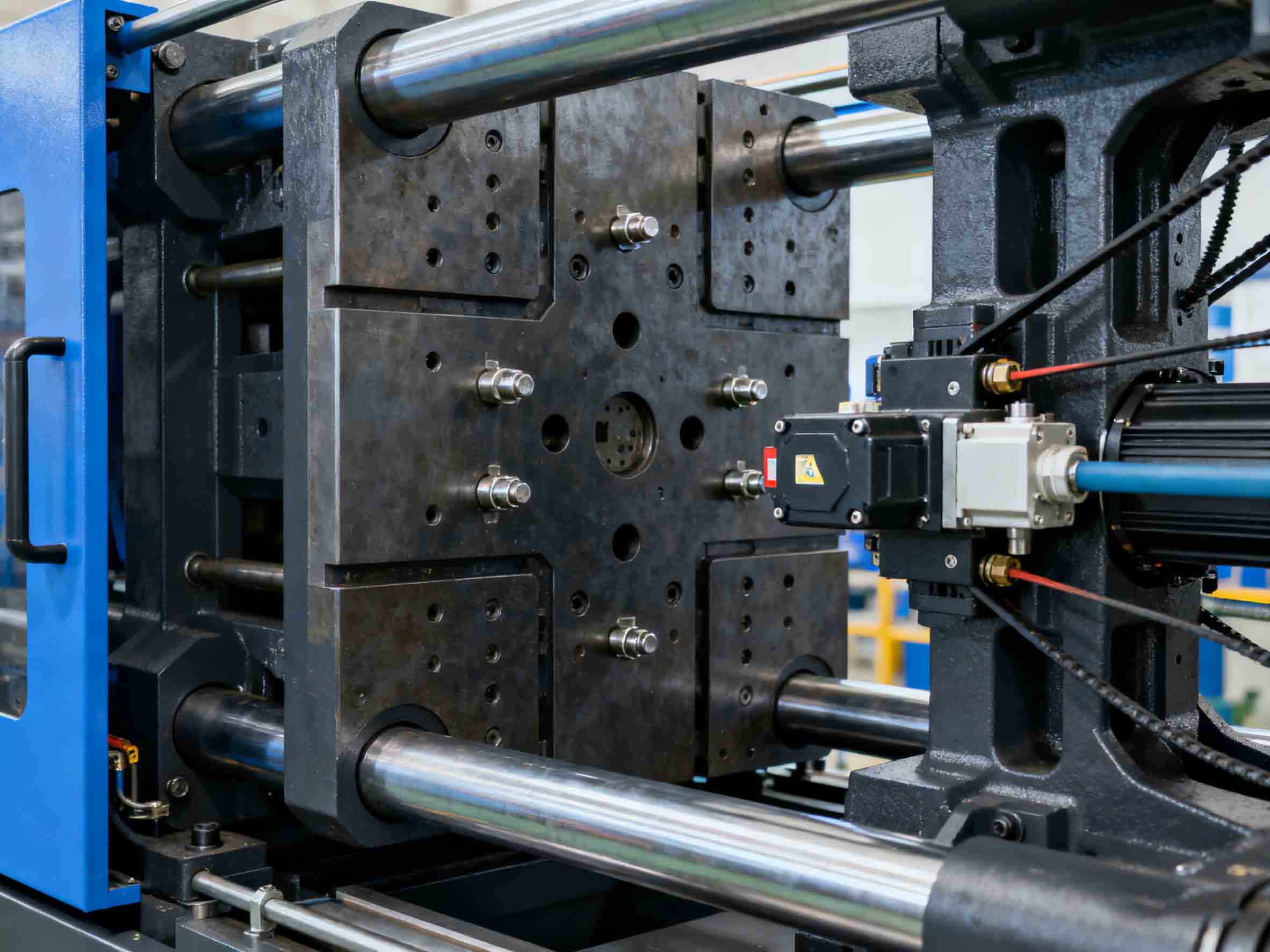

Modern hybrid and all-electric machines may combine the best of both — providing efficient, precise, and energy-saving clamping control.

4. How to Calculate Clamping Force

The required clamping force depends on several factors, primarily the projected area of the part and the injection pressure used.

The general formula is:

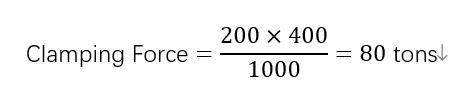

Example:

• Projected area = 200 cm²

• Cavity pressure = 400 kg/cm²

So, a machine with at least 80 tons of clamping force is needed.

To ensure safety and stability, manufacturers typically add a 10–20% safety margin, depending on part geometry and material.

5. Factors Affecting Required Clamping Force

Several variables influence how much clamping force is necessary for a specific mold:

Factor	Description
Part Size (Projected Area)	Larger surface area requires higher   clamping force to counteract pressure.
Number of Cavities	More cavities mean greater total   projected area, thus higher required force.
Material Type	Materials with higher viscosity or   injection pressure (like PC or nylon) demand stronger clamping.
Injection Pressure	Higher injection pressure pushes harder   on the mold halves.
Part Geometry	Thin walls or complex designs may require   more force to ensure uniform filling.

6. Signs of Incorrect Clamping Force

Detecting the right clamping force is a balance of science and experience. Here are some signs that your clamping force may need adjustment:

Problem	Possible Cause
Flash around part edges	Insufficient clamping force
Part warping or sink marks	Excessive clamping force or poor pressure   distribution
Mold damage or stress marks	Too much clamping force
Air traps or short shots	Improper venting caused by over-tight   mold closure

Process engineers often use pressure sensors, tie-bar strain gauges, or digital machine feedback to fine-tune settings.

7. How to Optimize Clamping Force

Here are practical steps to set and optimize the clamping force:

1. Start with manufacturer recommendations. Machine manuals often provide general force-per-area guidelines (e.g., 3–5 tons per square inch of projected area).

2. Perform a clamp force study. Gradually reduce clamping pressure until flash appears, then increase slightly above that threshold.

3. Monitor part quality. Look for visual defects and dimensional consistency.

4. Check tie-bar readings. Even distribution ensures balanced mold closing.

5. Use machine automation. Modern all-electric machines can automatically detect and adjust clamping levels for optimal energy use.

8. Clamping Force and Machine Selection

When choosing an injection molding machine, clamping force rating is a key specification. Machines are typically categorized by their maximum clamping capacity — for example, 100-ton, 300-ton, or 800-ton machines.

Selecting the correct tonnage ensures:

• The mold stays sealed during injection.

• The machine operates efficiently without overloading.

• There’s enough margin for future mold adjustments or variations.

However, bigger isn’t always better — using an oversized machine wastes energy and space. The correct choice depends on your part’s projected area, material, and number of cavities.

Conclusion

Clamping force is one of the most fundamental parameters in injection molding. It ensures the mold remains tightly closed during injection, directly influencing part quality, machine efficiency, and mold longevity.

Understanding how to calculate and optimize clamping force allows manufacturers to:

• Prevent defects like flash or short shots

• Reduce mechanical wear

• Improve cycle times and energy efficiency

Whether you operate a small workshop or a large production facility, mastering the concept of clamping force is essential to achieving precision, consistency, and profitability in injection molding.
