What is Dual Extruder 3D Printer?

In the fast-evolving world of 3D printing, innovation continues to redefine what is possible. One of the most exciting developments in recent years is the dual extruder 3D printer, a machine that dramatically expands the capabilities and versatility of desktop and industrial additive manufacturing. Whether you're printing in multiple colors, combining different materials, or producing complex parts with soluble supports, dual extruder 3D printers offer powerful solutions that single-extrusion machines simply cannot match.

This article explores everything you need to know about dual extruder 3D printers: what they are, how they work, the different types, their benefits and challenges, practical applications, and how to choose the right one for your needs.

1. What is a Dual Extruder 3D Printer?

A dual extruder 3D printer is a type of Fused Deposition Modeling (FDM) 3D printer equipped with two extruders and two nozzles, allowing it to print with two different filaments during the same print job.

Unlike a traditional single-extruder printer that can print only one material or color at a time, a dual extruder printer allows for:

• Multi-color printing

• Multi-material printing

• Support structure printing using dissolvable filaments

This dual capability makes it possible to create more visually appealing, mechanically functional, and geometrically complex parts.

2. How Does a Dual Extruder 3D Printer Work?

The core process of dual extrusion is similar to single extrusion: plastic filament is heated, melted, and extruded through a nozzle to build up layers of a part. The difference is that with dual extrusion:

• Two spools of filament feed into two extruders, each connected to its own nozzle.

• The printer alternates between extruders depending on the layer or section being printed.

• Each extruder deposits its material where needed, often pausing to allow the other to operate.

To avoid issues like oozing or cross-contamination, some machines include wiping mechanisms, parking positions, or retracting nozzles to keep the idle extruder from interfering with the print.

3. Types of Dual Extruder Setups

There are several configurations of dual extrusion systems, each with unique advantages and considerations:

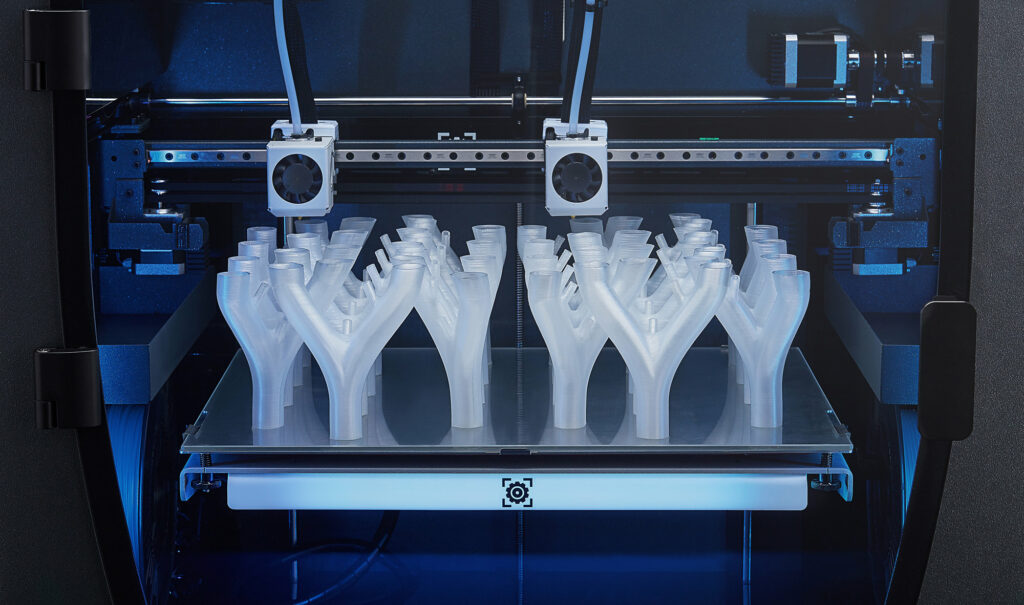

3.1 Independent Dual Extruder (IDEX)

Each extruder is mounted on its own independent X-axis carriage, allowing both to move separately. This design enables unique functions like:

• Mirror mode (printing mirrored      parts simultaneously)

• Duplication mode (printing two      identical parts at once)

• Multi-material or multi-color printing with reduced contamination

Pros:

• Maximum versatility

• Minimal oozing/cross-talk between nozzles

Cons:

• More expensive and complex

• Larger machine footprint

3.2 Dual Nozzle on a Single Head

Both nozzles are mounted on the same print head. The head moves together, and the printer switches between extruders during printing.

Pros:

• Less expensive than IDEX

• Fewer moving parts than independent systems

Cons:

• Risk of nozzle drag or contamination

• Slower due to extra retraction and wiping steps

3.3 Single Nozzle, Dual Input (Mixing Hotend)

Two filaments feed into one nozzle that blends them before extrusion. This enables gradient color mixing or custom material blends.

Pros:

• Color blending and unique aesthetic effects

• Lightweight print head

Cons:

• Limited to compatible materials

• More difficult to calibrate

• Requires careful temperature management

4. Benefits of Dual Extruder 3D Printing

Dual extrusion unlocks a range of capabilities that elevate what you can create with a 3D printer:

4.1 Multi-Color Printing

With two extruders, you can print models in two colors, enabling more visually appealing and realistic prototypes or finished parts.

4.2 Multi-Material Printing

You can combine materials with different properties in a single part:

• Rigid + flexible

• Conductive + insulating

• Strong + lightweight（This is especially useful for functional parts, hinges, gaskets, or enclosures.）

4.3 Soluble Support Structures

Dual extrusion allows printing with support materials like PVA or HIPS, which dissolve in water or limonene. This enables:

• Clean support removal

• Smooth surface finish

• More complex overhangs or internal geometries

4.4 Increased Design Freedom

Engineers and designers can explore new design possibilities, including:

• Internal channels

• Moving parts printed in place

• Complex surface details

4.5 Improved Workflow Efficiency

Rather than splitting a project into multiple single-material prints, dual extrusion allows the entire part to be printed at once, reducing assembly steps and post-processing.

5. Applications of Dual Extruder 3D Printing

Dual extruder printers are widely used across industries and by hobbyists, for both visual and functional purposes.

5.1 Prototyping

• Multi-material product prototypes (e.g., rigid case with rubber grips)

• Realistic visual models with branding or labels

• Functional fit tests with support removal

5.2 Engineering and Industrial Parts

• Mechanically optimized assemblies using both flexible and rigid elements

• Low-volume production parts with enhanced material properties

• Parts with internal voids or ducts enabled by soluble supports

5.3 Education and Research

• Teaching multi-material behavior

• Creating educational aids in contrasting colors

• Experimenting with material science or bio-printing

5.4 Medical Devices

• Orthotics or prosthetics with soft and rigid sections

• Anatomical models with different materials for tissue simulation

5.5 Art and Design

• Colorful figurines and sculptures

• Texture-rich surface treatments

• Custom jewelry with multiple finishes

6. Materials Used in Dual Extruder Printing

Material selection depends on compatibility in temperature, adhesion, and printability. Popular combinations include:

Material 1	Material 2	Purpose
PLA	PVA	Soluble support in water
ABS	HIPS	Soluble support in limonene
TPU (flexible)	PLA or PETG	Rigid-flex assemblies
Nylon	Carbon Fiber Nylon	Strength + structure
PLA (red)	PLA (white)	Color contrast models

Note: Ensure that both materials print within similar temperature ranges and adhere well to the build plate and each other (or don’t, if that’s desired for removable supports).

7. Considerations When Using a Dual Extruder 3D Printer

7.1 Calibration and Alignment

Each extruder must be carefully calibrated to align properly. Misalignment can lead to layer shifts, defects, or nozzle collisions.

7.2 Print Time

Dual extrusion prints can take longer due to:

• Tool changes between materials

• Extra retractions and wipes

• Lower speeds to prevent warping or cross-contamination

7.3 Software Compatibility

Your slicing software must support dual extrusion workflows. Popular slicers include:

• Ultimaker Cura

• PrusaSlicer

• Simplify3D

• IdeaMaker

These slicers allow you to assign different materials to specific parts of the model and adjust retraction, temperature, and nozzle switching settings.

7.4 Oozing and Stringing

Unused nozzles may ooze or string across the print. Solutions include:

• Using ooze shields or prime towers

• Enabling nozzle wiping functions

• Reducing standby nozzle temperature

7.5 Cost and Complexity

Dual extruder machines are typically more expensive than single-nozzle printers. Maintenance, calibration, and part replacement are also more involved.

8. Popular Dual Extruder 3D Printers (2024–2025)

Model	Type	Highlights
Prusa i3 MK4 with MMU3	Single nozzle, multi-material	Prints up to 5 filaments; reliable,   excellent community support
Bambu Lab X1 Carbon	Dual extruder with AMS (Automatic   Material System)	Intelligent, high-speed printing;   advanced automation
Raise3D Pro3	Independent Dual Extruder (IDEX)	Industrial-grade, excellent for   prototyping and production
FlashForge Creator Pro 2	IDEX	Budget-friendly dual extruder with decent   build quality
Ultimaker S5	Dual head on single carriage	High-end with precision and open filament   compatibility

9. Choosing the Right Dual Extruder 3D Printer

When selecting a dual extruder printer, consider:

• Purpose: Do you need soluble supports, color printing, or flexible parts?

• Material compatibility: Will the machine support the materials you intend to use?

• Build volume: Larger parts require larger beds and better bed adhesion.

• Calibration tools: Look for auto-leveling, Z-offset adjustment, and reliable firmware.

• Community and support: Firmware updates, spare parts, and community help are invaluable.

10. The Future of Dual Extrusion Technology

As additive manufacturing continues to evolve, dual extrusion is expected to play a key role in:

• Fully automated multi-material workflows

• Integration of sensors and conductive pathways

• Bio-compatible and multi-texture parts for medical and wearable tech

• Advanced color blending and photorealistic prints

• Closed-loop calibration and print optimization

With increasing demand for smarter, more functional printed objects, dual extruder systems are likely to become more mainstream and accessible.

Conclusion

Dual extruder 3D printing opens a world of possibilities far beyond what single-extruder machines can offer. Whether you are an engineer, educator, designer, or hobbyist, the ability to print in multiple materials, colors, or with dissolvable supports allows for greater creativity, functionality, and precision.

While dual extrusion brings added complexity and cost, the benefits—faster workflows, cleaner finishes, complex geometries, and multi-functional parts—make it a worthwhile investment for many users.

As the technology continues to mature, dual extruder 3D printers will play an increasingly vital role in shaping the future of prototyping, manufacturing, and custom fabrication.
