Injection molding is one of the most popular manufacturing processes used for producing parts from plastic materials. It involves injecting molten plastic into a mold, allowing it to cool and solidify into a pre-designed shape. A critical factor in the efficiency and productivity of this process is injection molding cycle time, which can directly affect the overall production rate, cost, and quality of the product.
In this article, we will dive deep into the concept of injection molding cycle time, its components, how it impacts the manufacturing process, and strategies for optimizing it.
Table of Contents

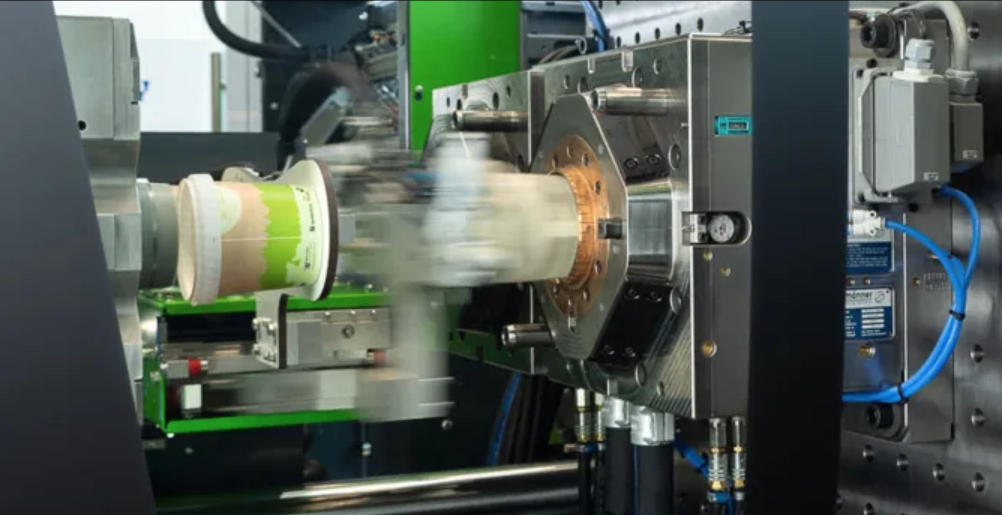

Injection molding cycle time refers to the total time required to complete one full cycle of the injection molding process, from the injection of molten plastic into the mold cavity to the cooling and ejection of the finished part. Essentially, it is the time between starting one part's production and finishing the next one.
A shorter cycle time means that more parts can be produced in less time, which leads to higher productivity and reduced manufacturing costs. On the other hand, a longer cycle time can reduce the number of parts produced per day, resulting in increased costs.
Cycle time is a crucial parameter for manufacturers because it affects the following key areas:
Production Speed: A faster cycle time allows for more parts to be produced in a shorter amount of time, which is essential for meeting production targets and improving throughput.
Cost Control: Faster cycles lead to lower manufacturing costs, as less time is spent on each part.
Quality Assurance: Minimizing cycle time can help reduce inconsistencies in product quality, especially in high-volume production settings.
Machine Utilization: Shorter cycle times lead to higher machine efficiency and better resource utilization.

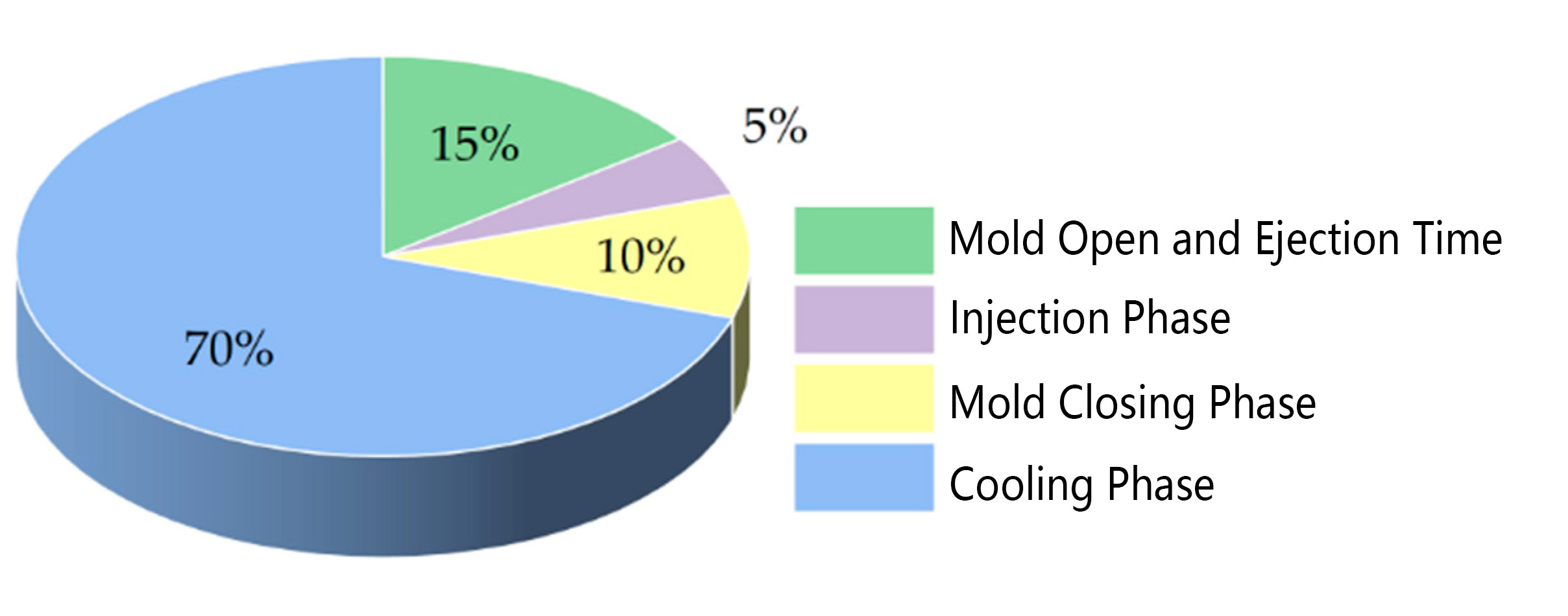

The injection molding cycle time is typically broken down into several key phases, each of which contributes to the overall time. The four primary stages are as follows:
1. Injection Phase
This phase involves injecting molten plastic into the mold cavity under high pressure. The injection time can vary depending on the material being used, the size of the part, and the complexity of the mold design. A quicker injection phase can reduce overall cycle time.
2. Cooling Phase
After the mold is filled, the molten plastic needs time to cool and solidify. Cooling time usually takes the longest in the cycle, and it is heavily influenced by factors such as:
The thickness of the part
The thermal conductivity of the material
The design of the mold
Reducing the cooling time can significantly lower the overall cycle time, but it must be done carefully to avoid defects in the molded part.
3. Mold Open and Ejection Phase

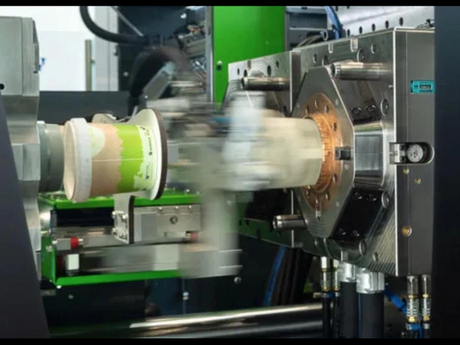

Once the part has cooled and solidified, the mold opens, and the part is ejected. The time taken to open the mold and eject the part also contributes to the overall cycle time. In some cases, automatic ejection systems can speed up this phase.
4. Mold Closing Phase
After the part is ejected, the mold is closed again in preparation for the next injection. This phase involves moving the mold halves together and aligning them properly. Any delays in this phase can slow down the cycle time.
Several factors influence the injection molding cycle time, and understanding these factors can help manufacturers improve the efficiency of their processes. Some of the most important factors include:
1. Material Choice
Different materials have different melting points and cooling times, which directly impact the injection molding cycle time. For example, high-density polyethylene (HDPE) typically cools faster than polycarbonate, leading to shorter cycle times.
2. Part Design and Complexity
Parts with thicker walls or intricate features may require longer cooling times and slower injection speeds, increasing cycle time. Complex molds with many cavities or intricate details can also extend cycle time, as the injection process may need to be slower to ensure uniform filling.
3. Mold Temperature
The temperature of the mold plays a significant role in determining how quickly the plastic cools. Higher mold temperatures may reduce cooling time, but they can also increase the risk of warping or other defects in the final product.
4. Injection Speed and Pressure
The injection speed and pressure must be carefully controlled to ensure that the mold is filled evenly. Faster injection speeds can reduce cycle time, but they may also cause defects such as short shots or incomplete filling of the mold.
5. Machine Type and Size
The type and size of the injection molding machine also influence the cycle time. Larger machines tend to have longer cycle times due to their larger injection capacities and slower operation. The speed at which the machine can move the mold halves or inject the material also affects cycle time.
6. Cooling System Design
The cooling system within the mold plays a crucial role in determining how quickly the plastic solidifies. Efficient cooling systems, such as conformal cooling channels, can significantly reduce cooling time and thus shorten the overall cycle time.
Calculating the injection molding cycle time involves adding up the times for each phase of the process. A basic formula for calculating cycle time can be expressed as:
Cycle Time = Injection Time + Cooling Time + Mold Open/Eject Time + Mold Close Time
Each of these time components can be further broken down:
1. Injection Time: This can be estimated based on the volume of plastic being injected and the injection rate of the machine. The equation for injection time is:
Injection Time = Plastic Volume ÷ Injection Rate
2. Cooling Time: Cooling time is typically the longest phase and is often calculated using the following formula:
Cooling Time = (Part Thickness)² ÷ Cooling Rate
Where Part Thickness is the thickness of the molded part, and Cooling Rate is a material-specific value that depends on the thermal properties of the plastic used.
3. Mold Open/Eject Time: This is the time it takes for the mold to open and for the part to be ejected. This is generally a fixed time based on the machine’s operational characteristics.
4. Mold Close Time: This is the time it takes for the mold to close properly before the next injection cycle. This time can vary based on the complexity of the mold and the machine.
1. Production Rate
The shorter the cycle time, the more parts can be produced in a given period. For high-volume manufacturing, even a few seconds shaved off each cycle can result in a significant increase in output.
2. Energy Consumption
Shorter cycle times typically mean less energy consumption, as the machines are in operation for a shorter period. This can lead to cost savings in energy bills, especially in large-scale manufacturing facilities.
3. Quality Control
Faster cycle times can lead to greater consistency in product quality. When cycle times are optimized, the risk of defects such as warping, surface imperfections, or incomplete fills is reduced.
4. Cost Reduction
Reducing cycle time improves overall productivity and reduces operational costs. The faster the cycle time, the fewer resources are consumed per part, which results in lower production costs.
To maximize efficiency and minimize cycle time, manufacturers can employ several strategies:
1. Optimize Mold Design
Improving mold design, such as using advanced cooling channel designs, can drastically reduce cooling time. Mold designs that promote uniform filling and minimize material wastage also help reduce cycle time.
2. Use Faster Injection Techniques
Enhancing the injection speed can speed up the molding process. However, it’s important to balance injection speed with part quality, as too fast an injection can lead to defects.
3. Material Selection
Choosing materials that cool faster or have better flow characteristics can significantly reduce cycle time. High-performance materials may offer a balance between faster cycle times and desired product properties.
4. Automation
Automating parts of the injection molding process, such as mold ejection and part handling, can help reduce time between cycles and increase overall throughput.
5. Regular Maintenance
Proper machine maintenance ensures that the injection molding equipment operates at peak efficiency, reducing downtime and improving cycle time.
In conclusion, injection molding cycle time is a critical factor in the efficiency of the injection molding process. Understanding its components and how to optimize them can help manufacturers improve production rates, reduce costs, and enhance product quality. By considering factors such as material choice, mold design, and machine performance, companies can achieve optimal cycle times and drive better manufacturing outcomes.
By optimizing cycle time, manufacturers can not only improve their competitiveness but also contribute to overall sustainability by reducing energy consumption and resource wastage.
