What is Polypropylene Injection Molding？

Injection molding is one of the most popular manufacturing processes used to create plastic products with high precision and efficiency. Among the various materials used in injection molding, polypropylene (PP) stands out as one of the most versatile and widely utilized plastics in the industry. Polypropylene injection molding is the process of creating parts and products by injecting molten polypropylene into a mold, where it cools and solidifies into the desired shape.

In this article, we will explore the fundamental aspects of polypropylene plastic injection molding, its benefits, applications, and key considerations for manufacturers. We will also dive into the advantages of using polypropylene as a material in injection molding and its growing popularity in various industries.

Table of Contents

1. What is Polypropylene (PP)?

2. How Does Polypropylene Injection Molding Work?

3. Benefits of Polypropylene Injection Molding

4. Applications of Polypropylene in Injection Molding

5. Key Considerations for Polypropylene Injection Molding

6. Polypropylene vs. Other Plastics in Injection Molding

7. Challenges of Polypropylene Injection Molding

What is Polypropylene (PP)?

Polypropylene (PP) is a thermoplastic polymer made from the polymerization of propylene monomers. It is a widely used material due to its excellent combination of properties, such as low density, chemical resistance, and high melting point. Polypropylene can be easily molded into various shapes when heated, and it becomes solid as it cools.

Key Properties of Polypropylene:

• Lightweight: Polypropylene has a low density, which makes it a lightweight material, ideal for applications where weight reduction is important.

• Chemical Resistance: It is resistant to a wide range of chemicals, including acids, alkalis, and solvents.

• High Melting Point: Polypropylene has a relatively high melting point, which makes it suitable for high-temperature applications.

• Versatility: Polypropylene can be used in a variety of applications, from medical devices to packaging and automotive components.

• Durability: PP is durable, offering excellent impact resistance and long-term performance.

How Does Polypropylene Injection Molding Work?

Polypropylene injection molding follows a general injection molding process, but there are specific parameters and considerations for polypropylene due to its unique properties. Here's how the process works:

1. Melting the Polypropylene:

Polypropylene pellets are loaded into the hopper of an injection molding machine. The pellets are heated in a barrel until they melt and turn into a molten form, usually around 220-270°C (428-518°F).

2. Injection of Molten Polypropylene:

The molten polypropylene is injected under high pressure into a mold cavity through a nozzle. The pressure ensures that the material fills all areas of the mold, including intricate designs or features.

3. Cooling and Solidification:

Once the mold is filled, the molten polypropylene cools and solidifies into the shape of the mold cavity. Cooling time is critical for ensuring the part retains its shape and has the right material properties.

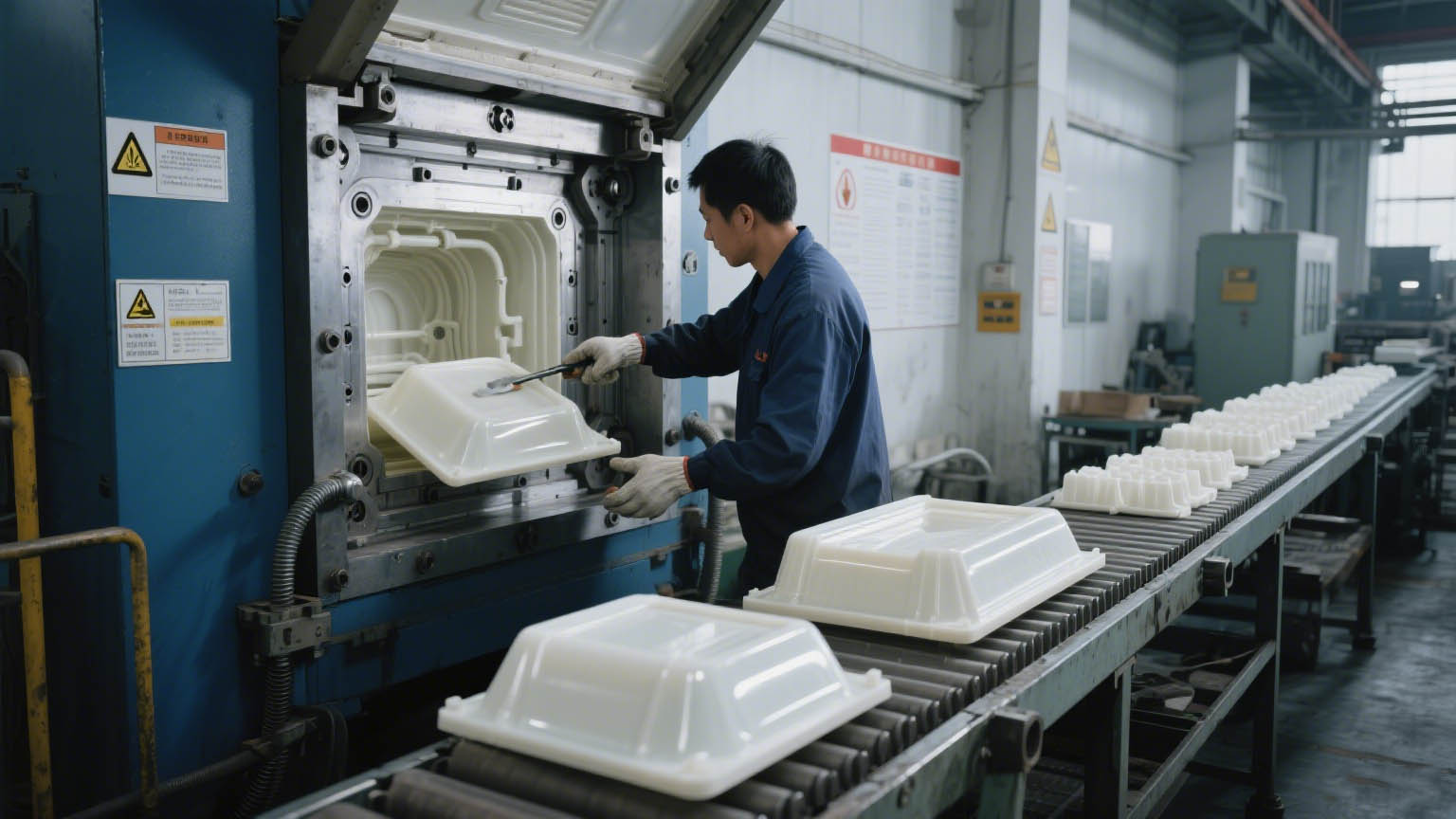

4. Ejection:

After the part has cooled and solidified, the mold opens, and the part is ejected using an ejection system. The part is then ready for further processing, such as trimming or assembly.

Benefits of Polypropylene Injection Molding

Polypropylene injection molding offers several advantages for manufacturers, making it a popular choice in many industries. These benefits include:

1. Cost-Effectiveness

• Low Material Cost: Polypropylene is relatively inexpensive compared to many other plastics, making it an attractive option for large-scale production.

• Energy Efficiency: The injection molding process for polypropylene is energy-efficient, as it requires lower processing temperatures compared to other materials like polyethylene or nylon.

2. High Production Speed

Polypropylene injection molding offers fast cycle times due to its relatively low viscosity and good flow properties, making it ideal for high-volume manufacturing.

The process allows for the production of large quantities of identical parts quickly and efficiently.

3. Chemical Resistance

Polypropylene’s resistance to chemicals such as oils, acids, and solvents makes it ideal for producing products that need to withstand harsh environments, including packaging for food and medical products.

4. Versatility in Applications

Polypropylene can be used for a wide variety of parts, ranging from consumer goods to automotive components and medical devices.

It can be molded into thin-walled products, large parts, or complex designs, making it a versatile material choice.

5. Excellent Fatigue Resistance

Polypropylene has outstanding fatigue resistance, which makes it ideal for products that need to withstand repeated flexing or movement without cracking or losing their shape.

6. Customization

Polypropylene can be combined with other materials such as fillers, fibers, or reinforcements to modify its properties. This allows manufacturers to create custom products with specific mechanical, thermal, or aesthetic characteristics.

Applications of Polypropylene in Injection Molding

Polypropylene is used in a wide range of applications across various industries, thanks to its unique combination of properties. Some of the most common applications include:

1. Consumer Goods

• Packaging: Polypropylene is often used in packaging materials such as food containers, bottles, and caps due to its resistance to chemicals, moisture, and its recyclability.

• Household Items: Polypropylene injection molding is used to manufacture everyday items like storage containers, buckets, and cleaning tools.

2. Automotive Industry

• Interior Parts: Polypropylene is commonly used in the automotive sector for parts such as dashboards, trims, door panels, and bumpers.

• Under-the-Hood Components: Due to its heat resistance and durability, polypropylene is also used in automotive components exposed to high temperatures, such as air intake manifolds and battery cases.

3. Medical and Pharmaceutical

• Medical Devices: Polypropylene is widely used in the medical field for the production of items like syringes, test tubes, and diagnostic devices, thanks to its sterility and resistance to biological agents.

• Packaging: PP is often used for medical packaging, such as pill bottles, medical trays, and sterilization wraps.

4. Textiles and Fibers

• Nonwoven Fabrics: Polypropylene is used in nonwoven fabrics for applications such as disposable diapers, medical garments, and industrial filters.

• Ropes and Fabrics: Polypropylene fibers are commonly used to make ropes, carpets, and other fabric-based products due to their durability and resistance to moisture.

5. Electronics

• Connectors and Housings: Polypropylene is used in the electronics industry to manufacture connectors, housings, and other components due to its electrical insulating properties.

• Battery Casings: Polypropylene is also employed for making battery casings, which need to be lightweight, durable, and resistant to heat.

Key Considerations for Polypropylene Injection Molding

While polypropylene injection molding offers numerous benefits, there are several factors that manufacturers must take into account to optimize the process and ensure high-quality results:

1. Melt Temperature and Flow Rate

Polypropylene requires a specific melt temperature range for optimal flow and part quality. Too high a temperature may degrade the material, while too low a temperature can lead to poor filling of the mold.

2. Mold Design

The design of the mold must consider the shrinkage rate of polypropylene, as it contracts upon cooling. Ensuring proper venting and gate placement is essential for minimizing defects such as air traps and short shots.

3. Cooling Time

Cooling time is crucial for polypropylene injection molding. Since polypropylene has a relatively high melting point, adequate cooling is necessary to avoid warping and ensure dimensional accuracy.

4. Cycle Time Optimization

Achieving an optimal cycle time is essential for efficient production. Using advanced techniques like multi-cavity molds or hot runner systems can help reduce cycle times and improve throughput.

5. Secondary Processes

Post-processing steps, such as trimming, decorating, or assembly, may be required depending on the complexity of the part. Manufacturers must account for these steps when designing the injection molding process.

Polypropylene vs. Other Plastics in Injection Molding

While polypropylene is a popular material for injection molding, it is essential to compare it to other common thermoplastics to understand when it is the most suitable choice:

1. Polyethylene (PE) vs. Polypropylene (PP)

Polypropylene offers better chemical resistance and higher heat resistance compared to polyethylene. However, polyethylene has better impact strength, making it more suitable for certain applications.

2. Polycarbonate (PC) vs. Polypropylene (PP)

Polycarbonate is stronger and more transparent than polypropylene, making it suitable for applications that require high strength and clarity. However, polypropylene is more cost-effective and has better chemical resistance.

3. ABS vs. Polypropylene

Acrylonitrile Butadiene Styrene (ABS) is more rigid and impact-resistant than polypropylene, but polypropylene is more cost-efficient and has better chemical resistance and fatigue resistance.

Challenges of Polypropylene Injection Molding

Although polypropylene injection molding offers many advantages, there are some challenges to consider:

• Warping: Polypropylene's tendency to shrink and warp as it cools can result in dimensional inaccuracies. Proper mold design and cooling systems are essential to mitigate this issue.

• Low Adhesion: Polypropylene has low surface energy, which can make it challenging to bond with other materials or coatings. This may require the use of primers or surface treatments.

• Limited UV Resistance: Polypropylene degrades when exposed to UV light over time, making it unsuitable for outdoor applications without additional UV stabilizers.

Conclusion

Polypropylene injection molding is a widely used and cost-effective manufacturing process that delivers high-quality plastic parts. With its excellent chemical resistance, durability, and versatility, polypropylene is an ideal choice for a broad range of industries, including automotive, medical, packaging, and consumer goods.

By understanding the unique properties of polypropylene, optimizing the injection molding process, and considering key design and production factors, manufacturers can leverage this material to create products that meet the highest standards of quality and performance.

Let us know if you have any further questions or need clarification on any points related to polypropylene injection molding!
