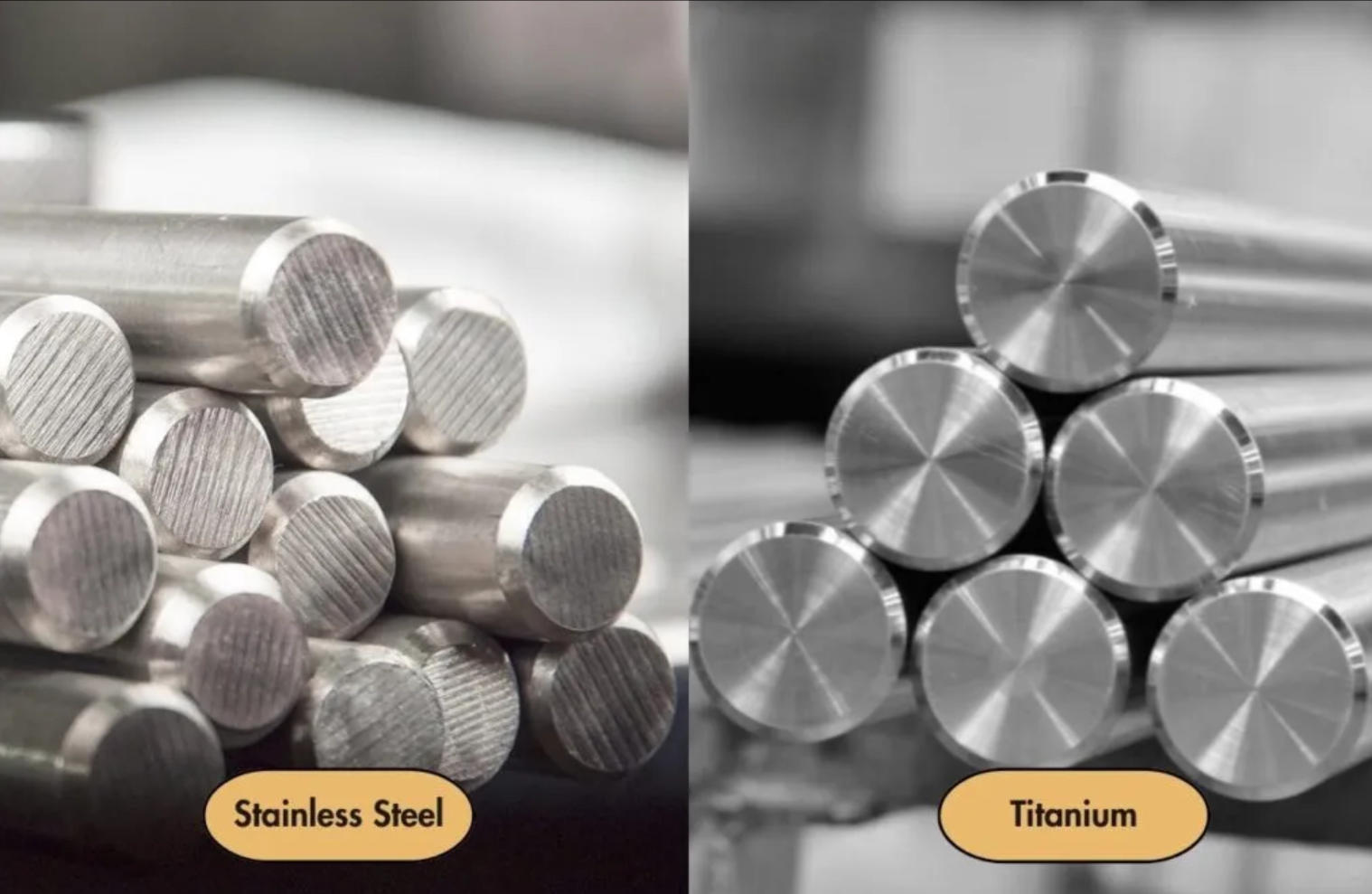

What is the Difference Between Titanium and Stainless Steel?

Titanium and stainless steel are two of the most widely used metals across various industries due to their excellent strength, durability, and corrosion resistance. While they may appear similar at first glance, they are fundamentally different in composition, properties, cost, and applications. This article explores these differences in depth, with a special focus on their application in injection molding.

1. Composition and Structure

Titanium is a naturally occurring element (atomic number 22) that is renowned for its high strength-to-weight ratio and exceptional corrosion resistance. It is often alloyed with aluminum, vanadium, or molybdenum to improve its mechanical properties.

Stainless Steel, on the other hand, is an alloy primarily composed of iron, with a minimum of 10.5% chromium content by mass. This chromium forms a passive layer of chromium oxide, giving stainless steel its corrosion-resistant properties. Other elements such as nickel, molybdenum, and manganese are added to enhance performance.

2. Mechanical Properties

Strength and Durability:

• Titanium has a higher strength-to-weight ratio compared to stainless steel, making it ideal for applications where both strength and weight are critical.

• Stainless steel is heavier and typically stronger in terms of absolute strength, particularly in high-carbon grades.

Hardness:

• Stainless steel, especially martensitic types, generally offers greater surface hardness than titanium.

• Titanium is softer and more prone to galling and wear under certain conditions.

Elasticity:

• Titanium has a lower modulus of elasticity, which means it is more flexible under stress.

• Stainless steel is more rigid and less prone to deformation under load.

3. Corrosion Resistance

Both metals offer excellent resistance to corrosion, but titanium is superior in more extreme environments:

• Titanium forms a very stable oxide layer that makes it almost completely immune to many corrosive substances, including seawater and chlorine.

• Stainless steel is also corrosion-resistant but can be affected by chlorides and acidic environments, depending on the grade.

4. Weight and Density

• Titanium is significantly lighter than stainless steel. Its density is about 4.5 g/cm^3 compared to stainless steel's 7.9 g/cm^3.

• This makes titanium more suitable for aerospace, medical, and high-performance automotive applications where weight savings are critical.

5. Thermal and Electrical Conductivity

• Stainless steel has better thermal and electrical conductivity than titanium, making it more suitable for applications involving heat or electrical flow.

• Titanium, due to its poor thermal conductivity, can be challenging to machine and weld.

6. Cost and Availability

• Titanium is more expensive to extract and process due to its complex production methods.

• Stainless steel is widely available and less costly, which makes it the material of choice for large-scale industrial applications.

7. Machinability and Fabrication

• Titanium is more difficult to machine due to its tendency to gall and low thermal conductivity.

• Stainless steel, though harder, is generally easier to machine with the right tooling and coolant.

8. Applications in General Industry

Titanium:

• Aerospace (airframes, engines)

• Medical implants (hip and knee replacements, dental implants)

• Marine applications (ship components, deep-sea equipment)

Stainless Steel:

• Construction (beams, reinforcements)

• Food processing (tanks, conveyors)

• Automotive (exhaust systems, structural parts)

9. Applications in Injection Molding

In the injection molding industry, both titanium and stainless steel are used, but for different reasons based on their unique properties:

Titanium in Injection Molding:

• High-performance mold components: Titanium is used for specific high-wear parts like ejector pins or core inserts, particularly where corrosion or chemical resistance is crucial.

• Non-magnetic tooling: Titanium's non-magnetic nature makes it ideal for specialized molding environments, including those involving electronic parts.

• Lightweight tooling: The low density of titanium can be advantageous for portable or robotic-assisted molding setups.

However, titanium's high cost and fabrication difficulty limit its use to specialized, high-value mold components rather than entire molds.

Stainless Steel in Injection Molding:

• Mold Bases and Cavities: Due to its strength, hardness, and corrosion resistance, stainless steel is widely used for mold cavities, cores, and bases.

• Corrosion-resistant Molds: Grades like 420 and 440C stainless steel are commonly chosen for molding corrosive materials such as PVC or for operations involving frequent water cooling.

• High-Volume Production: Stainless steel can withstand the high-pressure, high-temperature environment of injection molding over long production runs.

Overall, stainless steel is the more practical and cost-effective choice for most injection molding tools, but titanium is indispensable for certain niche applications.

10. Summary Table: Titanium vs. Stainless Steel

Property	Titanium	Stainless Steel
Strength-to-Weight	High	Moderate
Corrosion Resistance	Excellent	Very Good (varies by grade)
Density	~4.5 g/cm^3	~7.9 g/cm^3
Cost	High	Moderate to Low
Thermal Conductivity	Low	Higher
Machinability	Difficult	Moderate
Magnetic	Non-magnetic	May be magnetic (depends on grade)
Use in Injection Molding	Niche components	Mold bases, cavities, core tools

Conclusion

Titanium and stainless steel are both exceptional materials, each offering distinct advantages for specific applications. While titanium excels in weight-sensitive, corrosion-intensive, and non-magnetic environments, stainless steel offers greater affordability, easier fabrication, and broader applicability—especially in the context of injection molding.

Choosing between them depends largely on your project’s technical requirements, budget, and long-term performance goals. For most injection molding operations, stainless steel remains the preferred choice, but titanium plays a critical role in high-performance, specialized tooling components where its unique properties can be fully leveraged.
