What is Two-Shot Injection Molding?

In today’s fast-paced manufacturing landscape, efficiency, functionality, and aesthetics are critical. As consumer demands evolve and industries seek better ways to integrate features, reduce assembly time, and lower production costs, innovative molding techniques like two-shot injection molding have taken center stage. Also known as dual-shot, multi-shot, or 2K injection molding, this advanced manufacturing process allows the creation of complex, multi-material, or multi-color parts in a single molding cycle.

This article explores what two-shot injection molding is, how it works, its benefits, materials used, applications across industries, design considerations, and challenges, providing you with a complete understanding of this high-performance manufacturing technique.

1. What Is Two-Shot Injection Molding?

Two-shot injection molding is a process where two different materials or two different colors of the same material are injected into a single mold to create a finished part with integrated features. Unlike traditional injection molding, which molds only one material per cycle, two-shot molding uses two separate injection units to form a single product in two sequential shots.

This technique is typically performed on specially designed injection molding machines equipped with two barrels and two nozzles. After the first material is injected and partially cooled, the mold either rotates, slides, or closes a secondary cavity, allowing the second material to be injected over or around the first.

2. How Does Two-Shot Injection Molding Work?

The two-shot molding process involves several key steps:

Step-by-Step Process:

Step 1: First Shot (Base Material Injection)

• The primary material is injected into a mold cavity to form the first component of the part.

• This material may form the inner core, structural support, or base shape.

Step 2: Mold Transfer (Rotation or Translation)

• The mold either rotates or slides to align the first shot with a second cavity.

• In some machines, the entire tool rotates; in others, only a core or insert moves.

Step 3: Second Shot (Overmolding or Encapsulation)

• The secondary material is injected over or around the first molded component.

• This can be a soft-touch grip, a seal, a second color, or a functional layer.

Step 4: Cooling and Ejection

• The part cools in the mold.

• Once solidified, the fully formed dual-material part is ejected.

This seamless process eliminates the need for manual assembly or bonding, increasing efficiency and part quality.

3. Types of Two-Shot Injection Molding Machines

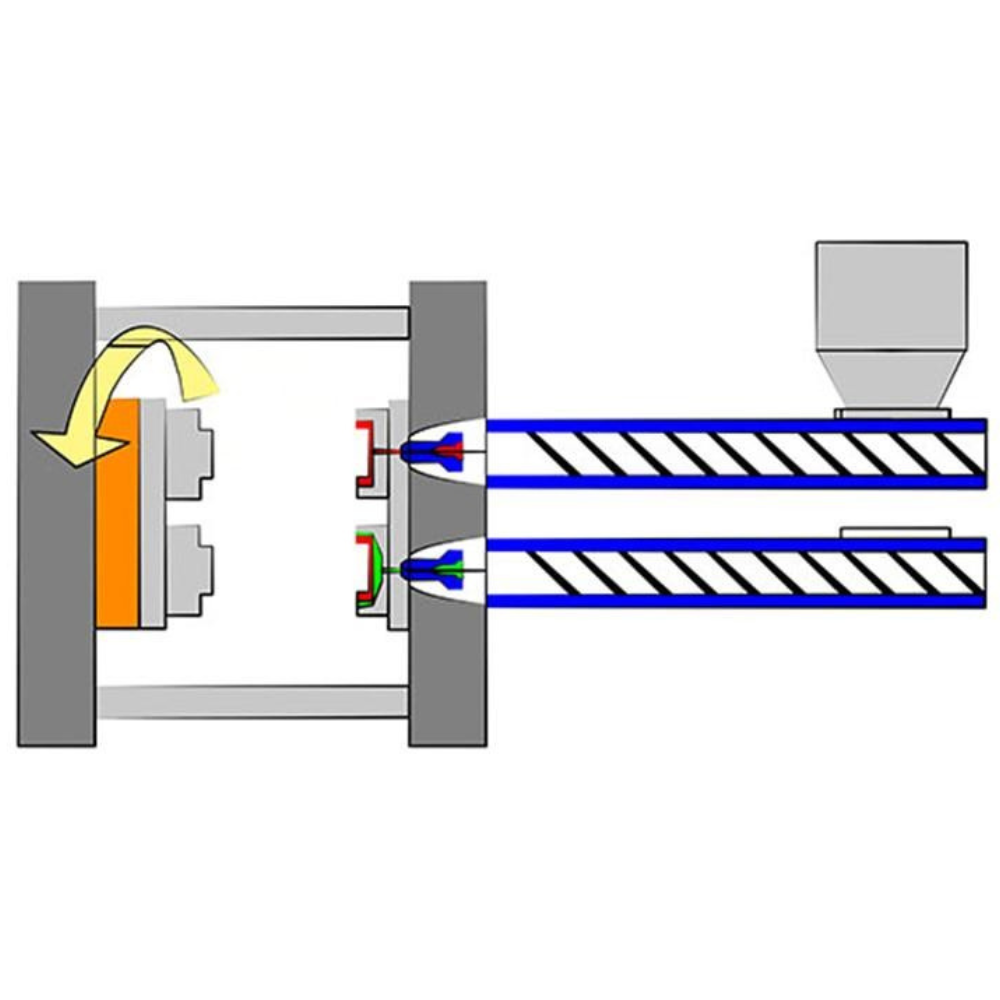

Rotary-Platen Machines

• The mold rotates 180° between shots.

• Common for high-volume production and symmetrical parts.

Core-Back or Translating Cavity Tools

• One half of the mold slides between cavities.

• More complex but allows for different mold shapes and part geometries.

Index Plate Machines

• Index plate rotates to shift part from one injection unit to another.

• Typically used for larger or more complex parts.

4. Advantages of Two-Shot Injection Molding

The two-shot process offers numerous technical and economic benefits compared to traditional methods:

Reduced Assembly Costs

• Eliminates secondary operations such as gluing, ultrasonic welding, or manual assembly.

• Reduces labor costs and the potential for human error.

Enhanced Product Quality

• Perfect alignment between components since both materials are molded in the same tool.

• Improved bonding strength between materials due to in-mold adhesion.

Better Aesthetics

• Enables multi-color or multi-texture designs without painting or printing.

• Sharp definition and color separation improve appearance and branding.

Compact and Lightweight Designs

• Allows integration of features (e.g., seals, grips) without additional parts.

• Consolidates parts into a single unit for space and weight savings.

Increased Design Freedom

• Allows engineers to combine materials with different propertiesv(e.g., soft + rigid).

• Opens up opportunities for innovative, ergonomic, andvfunctional designs.

Environmentally Friendly

• Reduces waste from adhesives, fasteners, and excess packaging.

• Streamlines production for energy and material efficiency.

5. Materials Used in Two-Shot Molding

Two-shot molding relies on the compatibility and adhesion between the two materials used. The materials must be thermally and chemically compatible to ensure a strong bond.

Common Material Combinations:

Material 1 (First Shot)	Material 2 (Second Shot)	Typical Application
ABS	TPE or TPU	Soft-touch grips, seals
PC	TPE	Protective casings
PA66	PP	Automotive components
PC	PMMA	Transparent or colored lenses
PBT	LSR (Liquid Silicone Rubber)	Sealed electronics
PP	PP (different color)	Two-color caps

Material selection is influenced by factors such as temperature compatibility, mechanical bonding, shrinkage rates, and application environment.

6. Design Considerations for Two-Shot Injection Molding

Successful two-shot molding requires careful design planning, not just for the part, but also for the mold and process. Here are key design guidelines:

6.1 Material Bonding Compatibility

• Choose materials with chemical affinity or mechanical interlocking features to ensure strong adhesion.

• If materials do not naturally bond, incorporate undercuts or textures for mechanical anchoring.

6.2 Wall Thickness and Flow Paths

• Maintain uniform wall thickness to avoid sink marks and voids.

• Design gates and runners to ensure even flow of both materials.

6.3 Parting Line and Gate Placement

• Proper gate location ensures smooth transitions between materials.

• Parting lines must be carefully designed to avoid flash or weak bonding zones.

6.4 Tolerances and Shrinkage

• Account for different shrinkage rates of each material.

• Adjust mold design to ensure dimensional accuracy post-cooling.

6.5 Venting and Cooling

• Adequate venting is crucial to prevent gas traps and surface defects.

• Cooling systems must be optimized for both shots to avoid cycle time inefficiencies.

7. Common Applications of Two-Shot Injection Molding

Two-shot molding is used across many industries for its ability to create complex, integrated parts with premium quality and functionality.

7.1 Automotive

• Buttons, knobs, and soft-touch control panels

• Dual-color emblems and illuminated switches

• Sealed housings and vibration dampers

7.2 Consumer Electronics

• Smartphone cases with rigid interiors and rubberized exteriors

• Multi-color remote controls

• Wearable devices with integrated soft straps

7.3 Medical Devices

• Syringes with color-coded plungers

• Sealed surgical instruments

• Overmolded grips for diagnostics and lab tools

7.4 Household Products

• Toothbrushes with ergonomic grips

• Appliance knobs and control panels

• Food containers with soft-seal lids

7.5 Packaging

• Two-color caps and closures

• Tamper-proof features

• Integrated gaskets

8. Limitations and Challenges of Two-Shot Injection Molding

Despite its advantages, two-shot molding presents some challenges:

8.1 Higher Initial Investment

• Specialized machines and molds increase capital costs.

• More complex tool designs and manufacturing timelines.

8.2 Material Selection Complexity

• Not all materials bond well or process within the same thermal range.

• Requires testing and validation to prevent delamination or poor adhesion.

8.3 Mold Design Expertise

• Requires advanced knowledge of mold mechanics, thermodynamics, and injection sequencing.

• Mistakes can result in costly defects or retooling.

8.4 Cycle Time

• While faster than separate molding and assembly, two-shot molding often has longer cycle times than single-shot molding.

9. Alternatives to Two-Shot Molding

If two-shot molding is not feasible, manufacturers might consider:

• Insert Molding: Inserting a pre-molded component into a mold before overmolding.

• Assembly and Adhesive Bonding: Manually assembling parts using glues or mechanical fasteners.

• Pad Printing or Painting: For aesthetic features without material integration.

However, these alternatives generally add steps, increase labor, and reduce design integration compared to true two-shot molding.

10. Future Trends in Two-Shot Injection Molding

As materials and technologies evolve, two-shot molding is becoming even more versatile and efficient.

Emerging Trends:

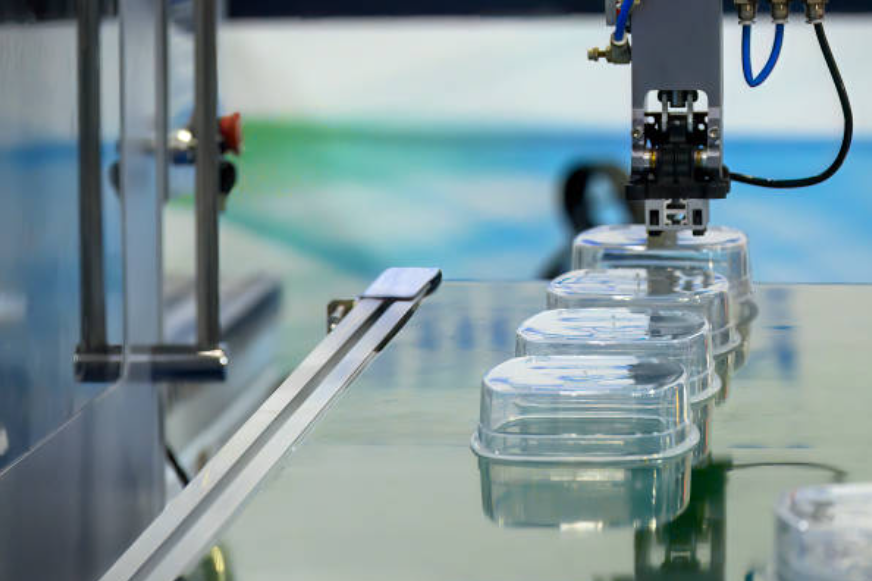

• Integration with automation and robotics for in-line inspection and part handling.

• Combination with 3D printing to produce complex inserts for two-shot molds.

• Use of bio-based and recyclable materials in multi-material designs.

• Smart mold monitoring to enhance process control, reduce defects, and improve repeatability.

Two-shot molding will continue to enable smarter, lighter, and more integrated products as industries embrace miniaturization, sustainability, and design-led manufacturing.

Conclusion

Two-shot injection molding is a powerful and efficient method that allows the production of intricate, multi-material parts in a single process. By combining different materials or colors seamlessly, manufacturers can enhance product functionality, aesthetics, durability, and cost-effectiveness.

While it demands a higher level of expertise in design, tooling, and process control, the benefits in terms of part integration, reduced assembly time, and enhanced quality make it a go-to solution for many modern applications—from automotive interiors to wearable electronics.

As manufacturing continues to evolve, two-shot molding will remain at the forefront of innovation—helping brands deliver products that are smarter, more beautiful, and more efficient than ever before.
