What is Plastic Injection Molding? Is It Difficult?

Plastic injection molding is one of the most influential and commonly used manufacturing processes in the modern industrial world. It's responsible for producing millions of plastic parts each day - from toothbrush handles and smartphone cases to car bumpers and medical device components. But what exactly is plastic injection molding, and how complex is it to understand or perform?

In this article, we'll break down the core concepts of plastic injection molding, explain how it works, outline its advantages and challenges, and finally address the question: is plastic injection molding difficult? Whether you're a curious student, a budding entrepreneur, or an engineer, this guide will give you a thorough understanding of the process and its intricacies.

What Is Plastic Injection Molding?

Plastic injection molding is a manufacturing process used to produce parts by injecting molten plastic material into a mold, where it cools and solidifies into the final shape. It is ideal for mass production of identical plastic items with high precision and repeatability.

This process is used across virtually every industry, including:

• Automotive

• Aerospace

• Electronics

• Industrial

• Medical

• Optical

• Robotics

• Telecommunication

The process involves specialized machines, molds (dies), raw plastic materials, and strict temperature and pressure controls. Because of its versatility and efficiency, it has become the cornerstone of plastic part production globally.

How Does Plastic Injection Molding Work?

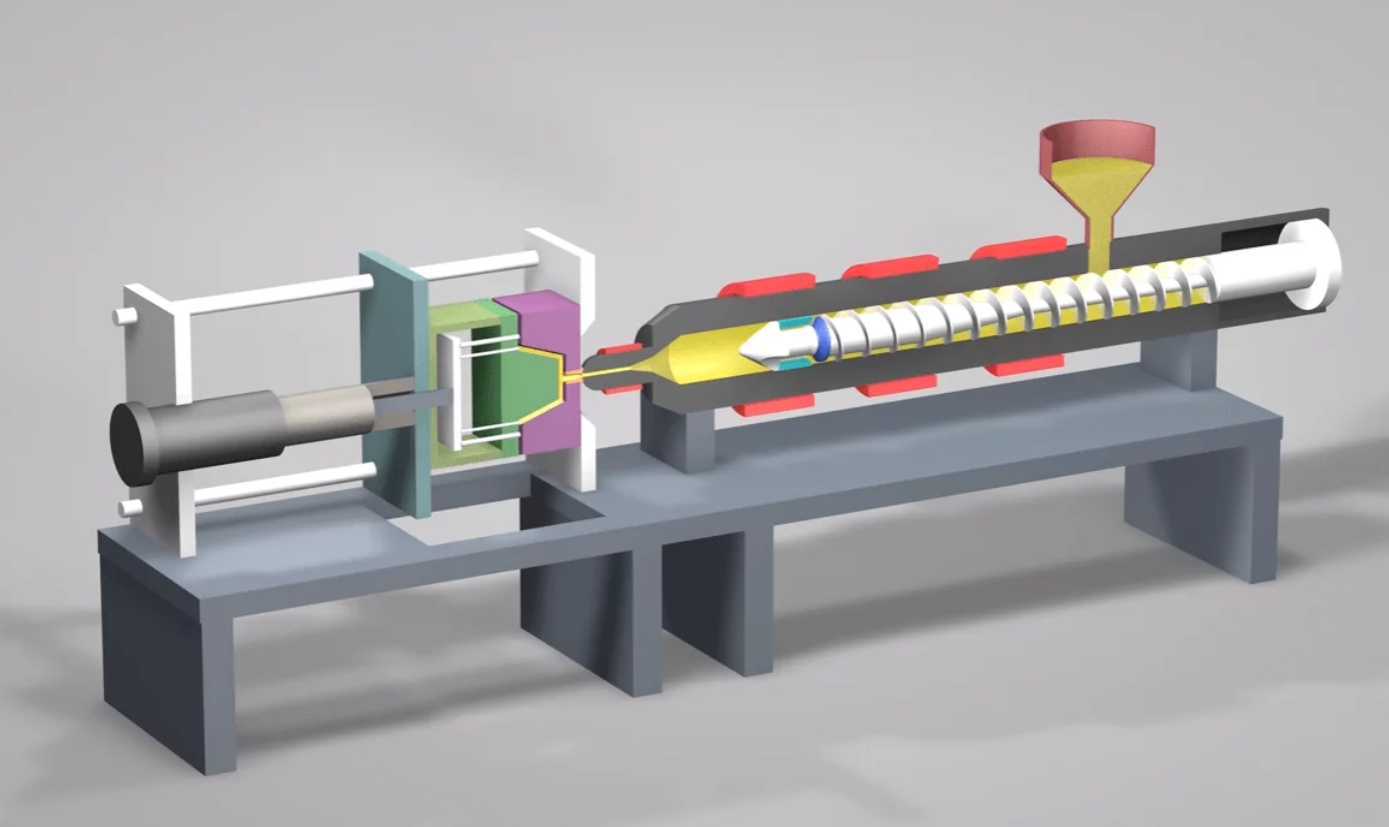

The plastic injection molding process can be divided into several core steps:

1. Plasticizing (Melting the Material)

Raw plastic pellets (typically thermoplastics like ABS, PP, or PC) are fed into a hopper. These pellets are conveyed into a heated barrel, where they are melted by heaters and the shearing action of a rotating screw.

2. Injection

Once the plastic is molten and reaches the front of the screw, it is injected at high pressure into a steel mold. The mold consists of two halves: the core and cavity. These halves define the shape of the part.

3. Cooling

The molten plastic fills the mold cavity and begins to cool. As it solidifies, it takes the exact shape of the mold. Cooling can last a few seconds to several minutes depending on the size and complexity of the part.

4. Ejection

After the part cools and solidifies, the mold opens, and ejector pins push the part out of the mold cavity. The mold then closes, and the cycle starts again.

5. Repeat Cycle

Injection molding is a highly repetitive process, and one machine can produce hundreds or thousands of parts per hour depending on the mold and material.

Equipment Used in Injection Molding

Injection molding relies on several specialized components:

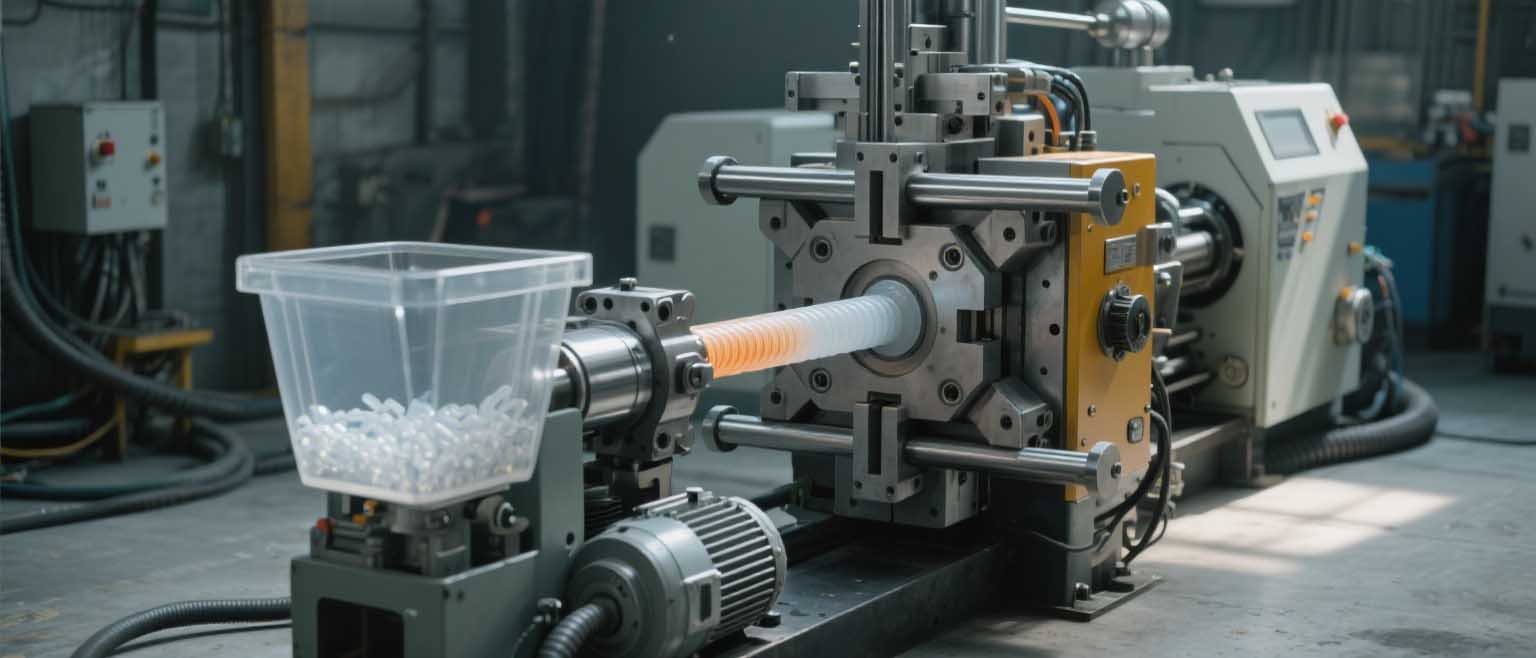

a. Injection Molding Machine

This machine typically consists of two main units:

Injection Unit: Melts the plastic and injects it into the mold.

Clamping Unit: Holds the mold closed during injection and opens it after cooling.

b. Mold (Tooling)

The mold is the most critical and costly component. It's typically made of hardened steel or aluminum and consists of two halves. It defines the shape, texture, and precision of the final product.

c. Auxiliary Equipment

Additional machines support the main process, including:

- Hoppers and dryers

- Temperature controllers

- Conveyors

- Robotic arms for part removal

Materials Used in Plastic Injection Molding

The most commonly used materials include:

• Polypropylene (PP): Lightweight and flexible.

• Acrylonitrile Butadiene Styrene (ABS): Durable and good for consumer goods.

• Polycarbonate (PC): Tough and transparent.

• Nylon (PA): Strong and wear-resistant.

• Polyethylene (PE): Common for packaging and containers.

• Polystyrene (PS): Rigid and cheap.

Material selection depends on the desired properties: strength, flexibility, transparency, heat resistance, or cost.

What Are the Advantages of Injection Molding?

Plastic injection molding offers numerous benefits that make it ideal for large-scale production:

1. High Efficiency

Once the mold is built, the cycle time for producing each part can be as low as a few seconds, making it one of the fastest manufacturing methods.

2. High Precision and Repeatability

The process produces identical parts with tight tolerances, ensuring consistent quality over large production runs.

3. Minimal Waste

Unlike subtractive processes like CNC machining, injection molding produces very little scrap. Excess material can often be reused or recycled.

4. Complex Designs Possible

Intricate shapes, undercuts, and internal features are achievable with well-designed molds and proper tooling.

5. Low Cost Per Part

Although the initial investment in tooling is high, the cost per unit becomes very low when producing in high volumes.

Challenges and Limitations of Injection Molding

Despite its advantages, injection molding comes with its own set of challenges:

1. High Tooling Cost

Designing and manufacturing a custom mold can cost thousands to hundreds of thousands of dollars. This makes the process best suited for high-volume production.

2. Long Lead Times for Tooling

Creating a mold can take weeks or even months. Design changes after mold completion are costly and time-consuming.

3. Design Restrictions

Although complex parts are possible, the process still has some design rules, such as the need for uniform wall thickness, draft angles, and avoidance of sharp corners.

4. Material Limitations

Not all plastics are suited for injection molding. Some materials degrade at high temperatures or do not flow well in molds.

Is Plastic Injection Molding Difficult?

This brings us to the central question: Is plastic injection molding a difficult process?

The Short Answer: It Depends.

From a high-level perspective, injection molding seems straightforward - melt plastic, inject into mold, cool, and eject. However, the actual execution is more complex, involving deep expertise in:

• Tool design and machining

• Material science

• Thermal and pressure control

• Mechanical engineering

• Process optimization and troubleshooting

Here's a breakdown of the complexity from different perspectives:

1. For Beginners or Small Businesses

For someone new to manufacturing, plastic injection molding can be very challenging due to:

- The steep learning curve in mold design and material selection

- The high initial investment in machines and tooling

- The need for precise process control

- Potential for defects (short shots, sink marks, warping, etc.)

However, these challenges can be mitigated by working with experienced mold makers and contract manufacturers who offer turnkey solutions.

2. For Skilled Engineers and Manufacturers

For trained engineers or professionals in the plastic industry, injection molding is not necessarily "difficult" but requires precision and experience. Optimizing production parameters like:

- Injection speed

- Holding pressure

- Cooling time

- Mold temperature

- ...is a constant process of testing and refinement.

Experienced professionals can leverage simulation software (like Moldflow) to predict material behavior, cooling patterns, and potential part defects before the mold is ever made.

3. For Hobbyists and Startups

For low-volume or prototype production, options like 3D printing or urethane casting may be more accessible and cost-effective. However, recent advances like low-volume aluminum molds or micro-injection molding machines are making injection molding more accessible to startups.

In short, injection molding is difficult if you try to DIY from scratch, but much easier with the right partners and tools.

Tips for Getting Started with Injection Molding

If you're considering using injection molding for your product, here are some helpful steps:

a. Design for Manufacturability (DFM)

Optimize your part design with the molding process in mind. Consider wall thickness, draft angles, and undercuts.

b. Work with an Experienced Mold Maker

A good mold is the foundation of successful injection molding. Don't cut corners on tooling.

c. Choose the Right Material

Balance aesthetics, strength, flexibility, and cost when choosing your plastic material.

d. Use Prototypes First

Consider rapid prototyping or 3D printing to test your design before investing in an expensive mold.

e. Simulate Before You Mold

Use mold flow simulation software to identify potential defects early and improve part and mold design.

PS: You can easy thing up by contacting a reliable plastic injection molding manufacturer such as Rego Mould.

Conclusion

Plastic injection molding is a powerful and highly efficient manufacturing process capable of producing complex, high-volume plastic parts at low per-unit costs. While the basic concept is simple, mastering the process requires a solid understanding of materials, mold design, machine operation, and process control.

Is it difficult? For beginners, yes - it can be challenging and technical. But with the right knowledge, resources, and support, injection molding is manageable and even scalable. Today, countless companies - from automotive giants to tech startups - rely on it to bring their products to life.

Whether you're looking to launch a new product, reduce manufacturing costs, or expand your engineering knowledge, understanding plastic injection molding is a worthwhile investment.
