What Are the 4 Stages of Injection Molding?

Injection molding is one of the most widely used manufacturing processes for producing plastic parts in high volumes. From automotive components to medical devices, toys to consumer electronics, injection molding plays a critical role in delivering consistent, high-quality plastic products. The process is fast, efficient, and capable of producing complex shapes with minimal waste. But how exactly does it work?

To understand the magic behind this manufacturing method, it's essential to break down the process into its four fundamental stages. These stages are:

• Clamping

• Injection

• Cooling

• Ejection

Each stage plays a vital role in shaping molten plastic into a finished product. Let’s dive deep into each of these four stages and explore their importance in the injection molding process.

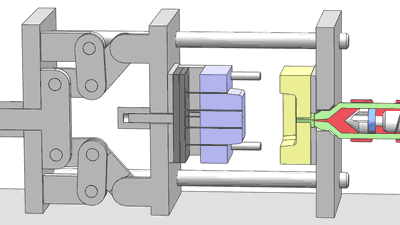

Stage 1: Clamping

The injection molding process begins with the clamping stage, which prepares the mold for the actual injection of material.

What Happens During Clamping?

The mold consists of two halves: the core (moving half) and the cavity (stationary half). These halves must be securely closed and clamped together before molten plastic can be injected. The clamping unit of the injection molding machine is responsible for this task.

Once the mold is closed, high clamping force is applied-typically ranging from a few tons to several thousand tons depending on the part size and material. This force ensures that the mold remains tightly shut during the injection phase, preventing any plastic from leaking out (a problem known as "flash").

Why Clamping Is Important

Clamping is more than just closing the mold; it's about creating a perfectly sealed environment. A weak or uneven clamp can lead to defects such as:

• Flash (excess plastic leakage)

• Short shots (incomplete parts)

• Warping or parting line mismatches

The time taken for clamping is relatively short, but it sets the foundation for the next stages.

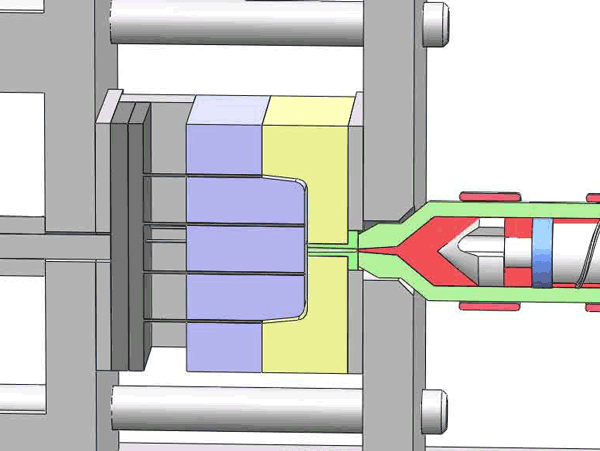

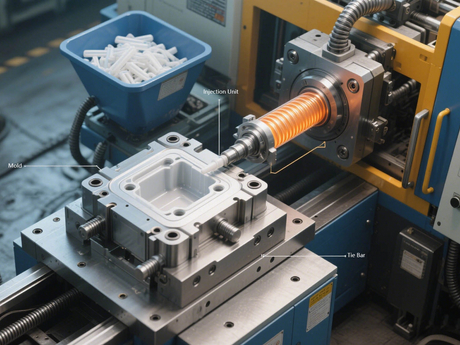

Stage 2: Injection

Once the mold is securely clamped, the injection stage begins.

What Happens During Injection?

In this stage, thermoplastic pellets (or sometimes thermosets) are fed from a hopper into a heated barrel. Inside the barrel, a rotating screw pushes the material forward, where it gets melted by both friction and external heaters.

When the molten plastic reaches the front of the screw, it is rapidly pushed through the nozzle and into the mold cavity through a system of runners and gates. The speed and pressure of this injection must be precisely controlled.

Key Parameters in Injection

• Injection Pressure: Determines how forcefully the molten plastic enters the mold.

• Injection Speed: Affects how fast the mold fills.

• Material Temperature: Needs to be high enough to flow easily but not degrade the material.

• Mold Temperature: Influences the flow and cooling of the plastic.

Why Injection Is Important

Injection must be done swiftly and uniformly to avoid defects like:

• Sink marks

• Flow lines

• Air traps

• Incomplete fills

Uniform flow ensures that the final product has consistent density, strength, and appearance.

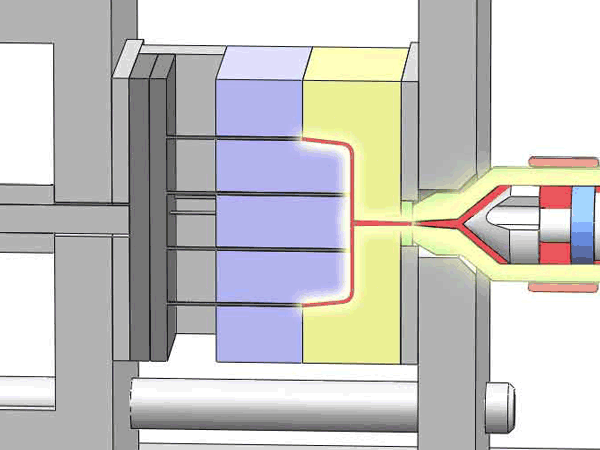

Stage 3: Cooling

The third and often the longest stage is the cooling stage, where the molten plastic solidifies inside the mold.

What Happens During Cooling?

As soon as the mold is filled, cooling begins. The mold is equipped with internal channels that circulate cooling fluid (usually water) around the cavity and core. This helps in rapidly removing heat from the plastic, allowing it to solidify and take the shape of the mold.

Although the mold appears static during this time, a lot is happening internally:

• Crystallization (for semi-crystalline materials)

• Shrinkage and contraction

• Stress distribution

Cooling Time Factors

• Part Thickness: Thicker parts take longer to cool.

• Material Type: Different plastics have different thermal conductivity and shrinkage rates.

• Mold Temperature: A cooler mold speeds up the process but may lead to defects.

• Cooling System Efficiency: Well-designed cooling channels reduce cycle time.

Why Cooling Is Important

Improper or rushed cooling can lead to:

• Warping or distortion

• Uneven shrinkage

• Surface defects

• Weak structural integrity

Manufacturers aim to balance cooling speed with quality, often using simulations to optimize cooling time.

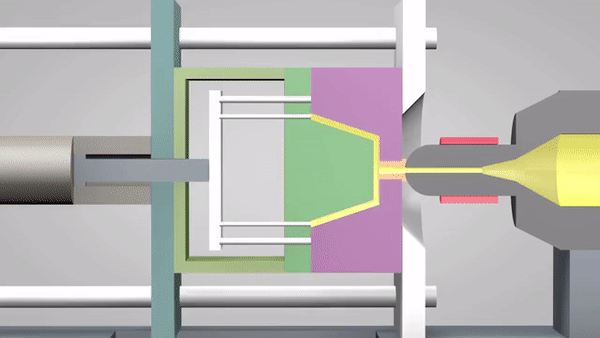

Stage 4: Ejection

Once the part has cooled and solidified, it's time for the final stage: ejection.

What Happens During Ejection?

The mold opens, and an ejection system-usually composed of ejector pins or plates-pushes the finished part out of the mold cavity. The force must be enough to remove the part without damaging it or deforming its shape.

Sometimes, air blasts or robotic arms assist in removing complex or fragile parts. After ejection, the mold is cleaned if needed and prepared for the next cycle.

Common Ejection Challenges

• Sticking: When the part clings to the mold, it can delay the cycle or damage the part.

• Part Deformation: Improper ejection force or technique can warp or crack the part.

• Surface Scratches: From misaligned pins or rough ejector surfaces.

Why Ejection Is Important

Although ejection may seem like a simple step, it directly impacts the production efficiency and quality of the product. A smooth, reliable ejection process ensures:

• High cycle rate

• Reduced downtime

• Less waste or rework

Additional Notes on the Injection Molding Cycle

The complete cycle time (from clamping to ejection) can range from a few seconds to several minutes depending on:

    - Part complexity

    - Size and wall thickness

    - Material type

    - Machine capabilities

Optimizing each stage is crucial to achieving high-volume, cost-effective production with minimal defects.

Conclusion

The injection molding process is a marvel of modern manufacturing, transforming raw plastic pellets into intricate and durable parts with precision. The four main stages-clamping, injection, cooling, and ejection-work in a seamless cycle, each one contributing to the overall success of the process.

Understanding these stages helps manufacturers and engineers troubleshoot problems, optimize cycle times, and improve product quality. Whether you’re new to injection molding or looking to refine your process, mastering the fundamentals of these four stages is the key to efficient and successful production.

Here is a video from Youtube it can help you understand better what is injection molding and their process:

Video link: https://www.youtube.com/watch?v=RMjtmsr3CqA
