What Is a Drive Shaft?

In mechanical engineering and automotive systems, the drive shaft plays a vital role in power transmission. Despite being one of the most essential yet overlooked components, it serves as the critical link between a vehicle's engine and the wheels, allowing motion and torque to travel across systems.

This article aims to provide a comprehensive understanding of what a drive shaft is, how it works, its types, components, manufacturing processes, and its applications in various industries beyond just automobiles. Whether you're a student, car enthusiast, or engineer, this guide covers everything you need to know about drive shafts.

1. What Is a Drive Shaft?

A drive shaft—also known as a propeller shaft, driveshaft, or prop shaft—is a mechanical component used to transmit torque and rotation. In vehicles, it connects components of the drivetrain that are separated by a distance. The drive shaft transfers power from the engine (via the transmission) to the drive wheels.

A drive shaft is a rotating cylindrical shaft that transmits mechanical power from the engine to the axles in vehicles, or between other power-transmitting machinery in industrial setups.

2. Why Drive Shafts Are Necessary

In many vehicles, the engine and transmission are located at the front, while the driving wheels are located at the rear. This spatial separation means power must be transferred over a distance.

That's where the drive shaft comes in:

• It maintains torque delivery across distances.

• It accommodates misalignment due to vehicle motion.

• It enables flexibility and rotation, even when angles change (e.g., going over bumps).

Without a drive shaft, rear-wheel or four-wheel drive systems would not function properly.

3. Key Functions of a Drive Shaft

A drive shaft performs multiple vital functions:

• Torque Transmission: Converts rotational energy from the transmission to the differential.

• Axial Flexibility: Allows the vehicle to move vertically while keeping the power transmission stable.

• Rotational Speed Handling: Operates at high RPMs without losing balance or suffering from vibration.

• Durability: Must withstand torsional stress, thermal expansion, and harsh environmental conditions.

4. Components of a Drive Shaft Assembly

A typical drive shaft system includes more than just the shaft itself. Here are the major components:

Shaft Tube

• The long cylindrical tube that connects the engine and the differential.

• Usually made of steel, aluminum, or carbon fiber composites.

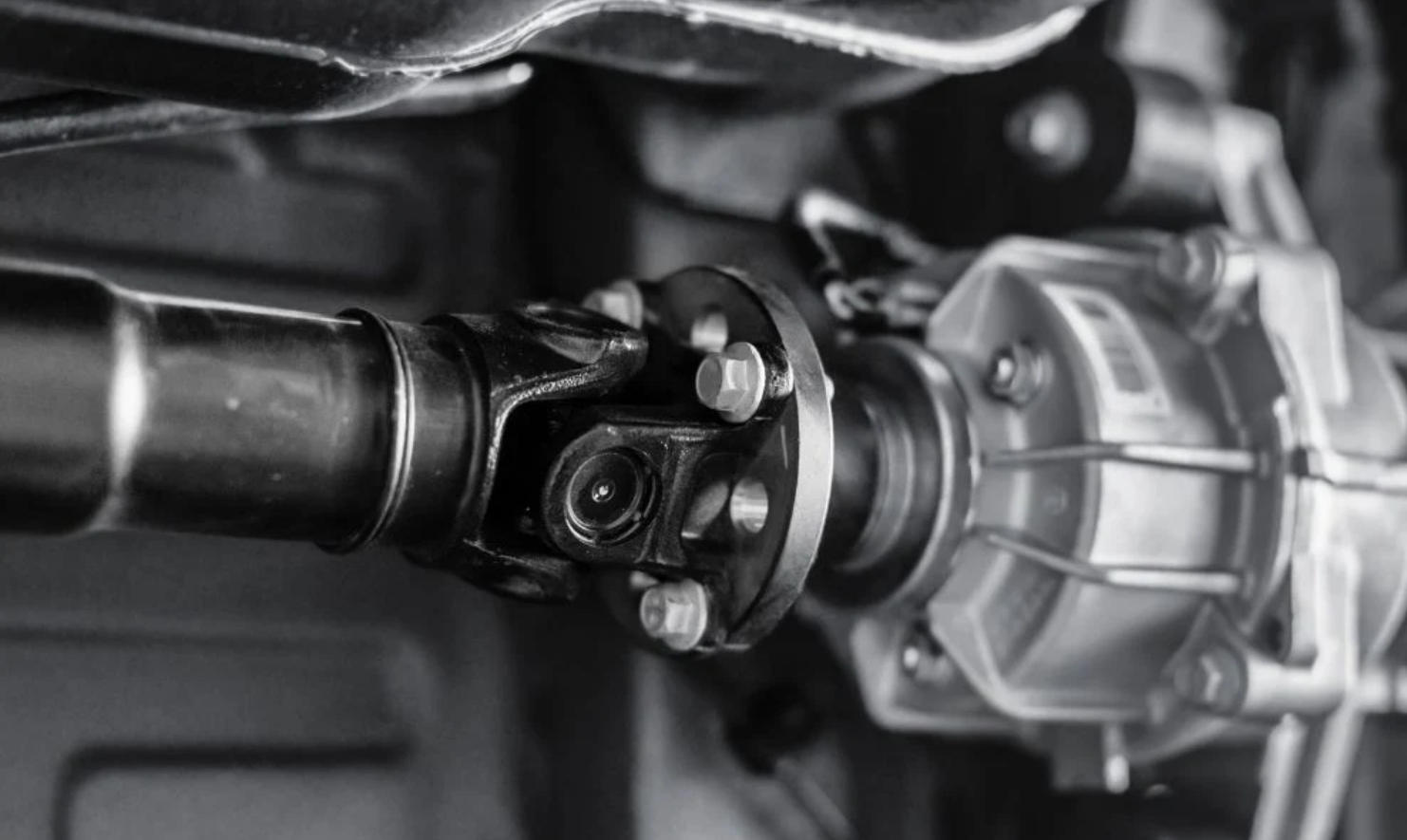

Universal Joints (U-Joints)

• Allow angular misalignment between the connected parts.

• Enable the shaft to rotate even when components are not in a straight line.

Slip Yoke

• Accommodates changes in shaft length due to suspension movement.

• Allows for expansion and contraction without breaking connection.

Center Bearing

• Used in longer shafts (e.g., in trucks) for additional support.

• Prevents excessive vibration or bending.

Flanges and End Yokes

• Facilitate secure attachment to other drivetrain components.

5. Types of Drive Shafts

Drive shafts can be classified in several ways depending on the application, geometry, and material.

5.1 Based on Vehicle Configuration

A. Rear-Wheel Drive Shaft

• Transmits power from a front-mounted transmission to the rear differential.

B. Front-Wheel Drive Shaft (Axle Shaft)

• Shorter shafts that also transmit torque to the front wheels.

• Often includes constant velocity (CV) joints for better flexibility.

C. All-Wheel / Four-Wheel Drive Shaft

• Distributes torque to both front and rear axles.

• Often includes multiple drive shafts and transfer cases.

5.2 Based on Shape and Design

A. Single-Piece Drive Shaft

• Simpler and used in short-distance applications (cars, small trucks).

B. Two-Piece or Multi-Piece Shaft

• Includes a center bearing and multiple joints.

• Used in large vehicles like buses or long-bed trucks.

5.3 Based on Material

A. Steel Drive Shafts

• Strong, cost-effective, and durable.

• Heavier than alternatives, which can affect performance.

B. Aluminum Drive Shafts

• Lightweight and corrosion-resistant.

• Less strength but ideal for performance vehicles.

C. Carbon Fiber Drive Shafts

• Extremely lightweight and high strength.

• Expensive but ideal for high-performance racing and aerospace applications.

6. How Drive Shafts Work

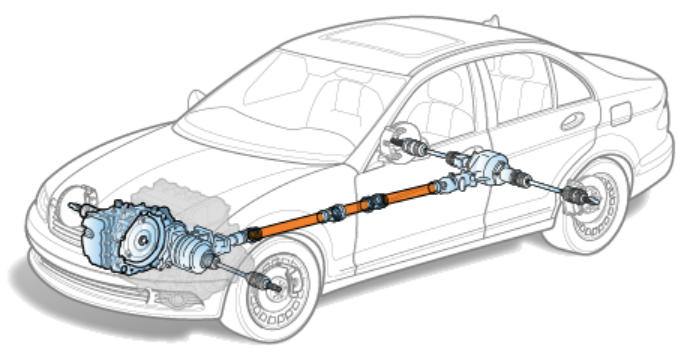

The operation of a drive shaft depends on rotational motion. Here's a simplified flow for a rear-wheel-drive vehicle:

1. The engine generates power and sends it to the transmission.

2. The transmission controls speed and torque and sends it to the output shaft.

3. The drive shaft takes over from the output shaft, transmitting rotation and torque to the differential.

4. The differential splits the torque between the two rear wheels, allowing for smooth and effective propulsion.

Throughout this operation, the universal joints and slip yokes compensate for changes in angle and length due to vehicle movement, ensuring a stable and continuous transfer of power.

7. Applications of Drive Shafts

Automotive

• Passenger cars, SUVs, trucks, motorcycles

• Sports and performance vehicles (e.g., Formula One)

Aerospace

• Transfer of mechanical power in aircraft systems

• Lightweight composite shafts used in helicopters

Industrial Machinery

• Printing presses, conveyor belts, and textile machines

• Used to connect motors to remote systems

Marine

• Boats and ships use drive shafts to connect engines to propellers

• Special seals and corrosion-resistant materials required

8. Manufacturing and Design Considerations

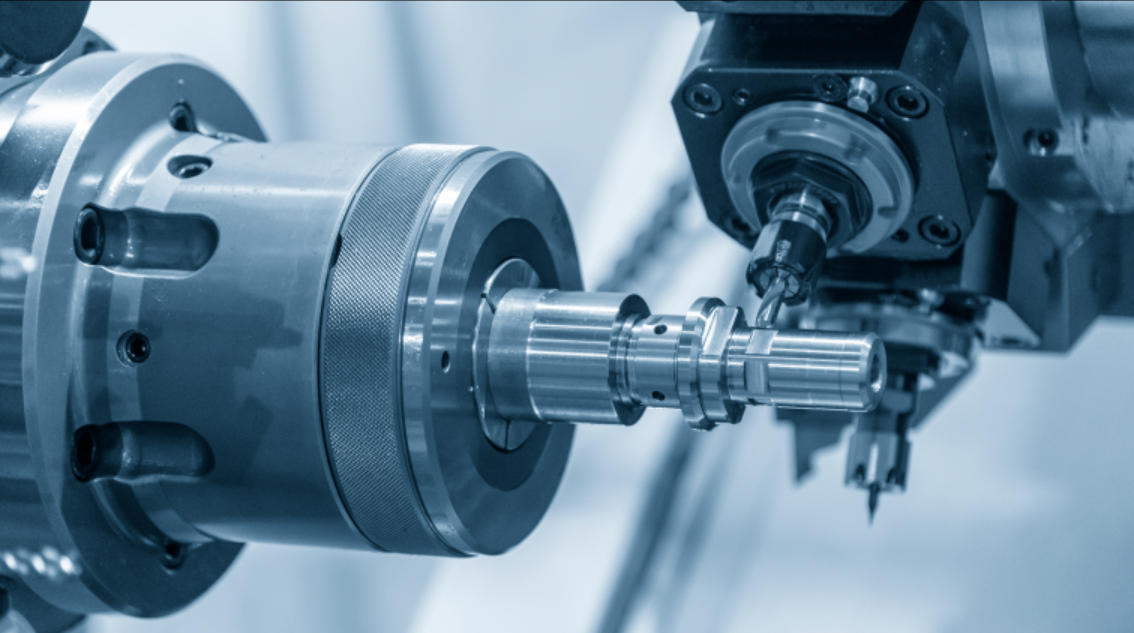

Designing and producing the drive shaft involves precision CNC machining techniques and high-strength materials to withstand stress, fatigue, and rotational forces.

Materials Used

• Steel (High carbon or alloy)

• Aluminum alloys

• Carbon fiber-reinforced polymers (CFRP)

Manufacturing Processes

• Forging and Machining: For components like yokes and flanges

• Tube Drawing and Welding: For shaft tubes

• Balancing: Crucial to eliminate vibration at high speeds

Quality Control

• Ultrasonic and X-ray inspections

• Dynamic balancing tests

• Torsional and fatigue strength evaluations

9. Common Problems and Maintenance Tips

Like any mechanical part, drive shafts can suffer wear and failure if not maintained properly.

Common Issues

• Vibration: Usually caused by unbalanced shafts or worn U-joints.

• Clunking Sounds: Could indicate excessive play in joints.

• Grease Leakage: U-joints need regular lubrication.

• Cracks or Dents: Physical damage can weaken shaft integrity.

Maintenance Tips

• Inspect U-joints and bearings regularly.

• Keep an eye on rubber boots (especially in CV joints).

• Avoid overloading vehicles, which stresses drive shafts.

• Address unusual noises or vibrations immediately.

10. Drive Shaft vs. Axle Shaft: What’s the Difference?

While often confused, drive shafts and axle shafts have different roles:

Feature	Drive Shaft	Axle Shaft
Location	Between transmission and differential	Between differential and wheels
Purpose	Transmits torque across long distances	Transmits torque directly to wheels
Common In	Rear-wheel and all-wheel-drive vehicles	All vehicle types
Flexibility	Often includes universal or CV joints	May or may not include joints

11. Trends and Innovations in Drive Shaft Technology

As automotive and industrial technology evolves, drive shafts are also seeing innovations:

Lightweight Materials

Carbon fiber and advanced composites are reducing weight without sacrificing strength—ideal for electric and performance vehicles.

Modular Designs

Interchangeable and easy-to-repair sections are being used in commercial and fleet vehicles.

Smart Monitoring

Sensors embedded in shafts can monitor torque, vibration, and heat for predictive maintenance.

Noise and Vibration Reduction

Advanced balancing techniques and damping materials are being used to enhance comfort and performance.

Conclusion

A drive shaft is far more than just a spinning tube—it is a crucial component in any system that requires the transmission of torque and rotational motion across distances. In vehicles, it bridges the gap between the engine and wheels, ensuring efficient and smooth power delivery. In industries, it connects machinery, drives automation, and supports complex mechanical operations.

Understanding how drive shafts work, how they are designed and manufactured, and how to maintain them is essential for engineers, mechanics, and anyone involved in mechanical systems. With continued innovation in materials and design, the future of drive shafts is geared toward being lighter, stronger, smarter, and more efficient than ever before.
