What Is Snap Fit Design

In modern product design and manufacturing, the demand for fast, efficient, and cost-effective assembly methods has led to the widespread adoption of snap fit designs. These mechanisms allow two parts to be joined securely without the need for additional hardware such as screws, rivets, or adhesives. Snap fits are especially popular in plastic products and are commonly used in consumer electronics, automotive components, toys, enclosures, and more.

This article will explore what snap fit designs are, the various types of snap fits, their advantages and limitations, and—importantly—their critical connection to injection molding, the manufacturing process that makes snap fits viable on a mass scale.

1. What Is Snap Fit Design?

Snap fit design refers to a method of joining two components using interlocking features—often flexible tabs, hooks, or cantilever arms—that snap into place with a single push or press. The key concept behind snap fits is elastic deformation: one or both parts temporarily deform to allow insertion and then return to their original shape to lock the joint securely.

Key Features of Snap Fit Designs:

• No fasteners required

• Quick and tool-free assembly

• Reusable or permanent locking

• Optimized for plastic components

Snap fits work best when made from materials with high flexibility and fatigue resistance, particularly thermoplastics—materials ideally suited for injection molding.

2. Common Types of Snap Fit Designs

Snap fits come in a variety of configurations, each tailored to different geometries, assembly forces, and use cases. Here are the most common types:

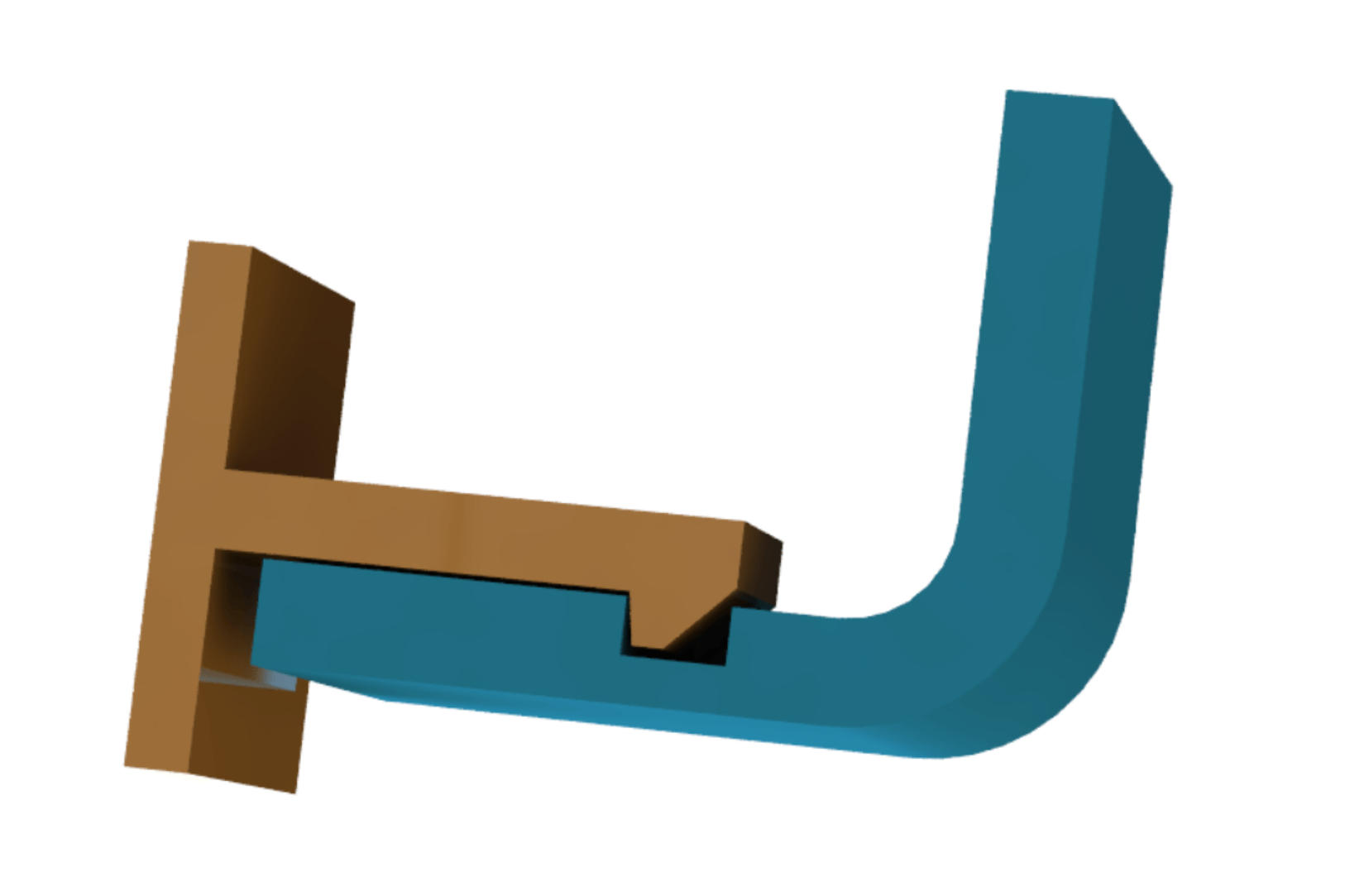

2.1. Cantilever Snap Fit

Cantilever snap fits are the most widely used type. They consist of a protruding arm that deflects during assembly and snaps back into a recess on the mating part.

Advantages:

• Easy to design and mold

• Strong holding force

Applications: Battery doors, handheld device enclosures, automotive panels

2.2. Annular Snap Fit

Annular snap fits are ring-shaped features, typically used to join cylindrical parts. They rely on a ridge (or groove) around the circumference that deflects slightly during assembly.

Advantages:

• 360-degree engagement

• Excellent for fluid or air-tight seals

Applications: Bottle caps, tube connectors, plumbing fittings

2.3. Torsional Snap Fit

In torsional snap fits, parts rotate during assembly, relying on twisting rather than bending forces. These are more complex but allow for interesting hinge or latch mechanisms.

Advantages:

• Controlled engagement

• Useful for hinged parts

Applications: Latch mechanisms, rotating covers

2.4. Ball and Socket Snap Fit

These consist of a spherical ball fitting into a socket with an internal groove. They provide multidirectional flexibility and are often used in adjustable components.

Advantages:

• Adjustable angle or rotation

• Reusable connection

Applications: Mounts, mirrors, toy joints

3. Snap Fit and Injection Molding: A Perfect Match

The efficiency of snap fit designs is made possible by the precision and repeatability of injection molding, a manufacturing process that injects molten plastic into a mold cavity to create complex shapes.

3.1. Why Injection Molding Is Ideal for Snap Fit Designs

Injection molding offers several characteristics that align perfectly with snap fit requirements:

• Tight Tolerances: Snap fits require precise alignment to function correctly. Injection molding can produce highly accurate parts with consistent dimensions.

• Complex Geometries: The process allows for intricate designs like hooks, tabs, and grooves—all essential for snap fit functionality.

• Material Flexibility: Thermoplastics used in injection molding offer the elastic properties needed for snap fit deformation and recovery.

• High Volume Efficiency: Snap fits eliminate assembly hardware, reducing labor costs and assembly time. Injection molding can mass-produce these features economically.

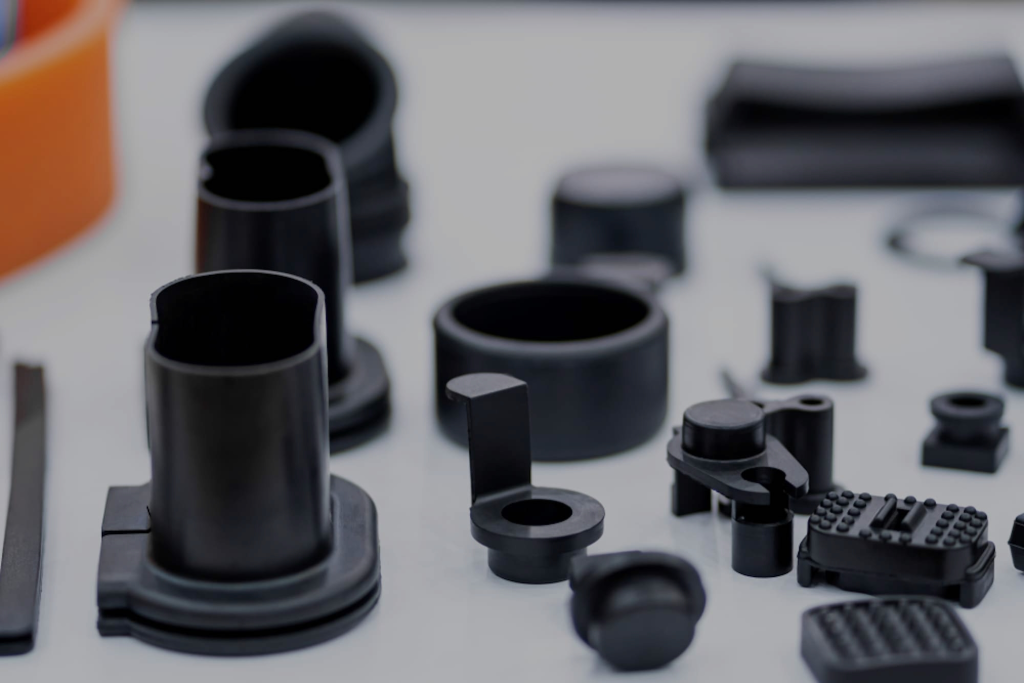

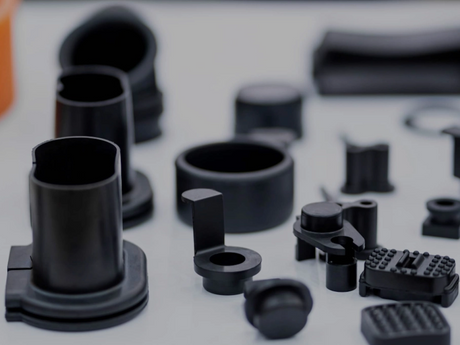

3.2. Materials for Injection Molded Snap Fits

The most suitable materials are ductile, tough, and fatigue-resistant thermoplastics, including:

• Polypropylene (PP): Excellent flexibility and fatigue resistance

• Polycarbonate (PC): High impact strength, often used in enclosures

• ABS (Acrylonitrile Butadiene Styrene): Good balance of strength and toughness

• Nylon (PA): Strong and wear-resistant; great for automotive parts

• Acetal (POM): Low friction and high dimensional stability

Material selection depends on the application's requirements: strength, durability, flexibility, and environmental resistance.

4. Key Design Considerations for Snap Fits

Designing effective snap fits requires careful planning to ensure functionality, durability, and manufacturability.

4.1. Deflection and Stress

Snap fit arms or tabs must deflect elastically during assembly. Use beam theory to estimate deflection, stress, and strain, ensuring the material remains below its yield limit to avoid permanent deformation.

4.2. Engagement Force

This is the force needed to assemble the snap fit. It should be low enough for manual assembly but high enough to prevent accidental disengagement. Factors affecting engagement force:

• Geometry of the latch

• Angle of the hook or ramp

• Surface finish

• Lubrication

4.3. Disengagement or Reusability

Some snap fits are permanent, while others are designed for disassembly and reuse. If reusability is needed, the design must allow for tool access or easy finger actuation to release the latch.

4.4. Moldability

All snap fit features must comply with injection molding best practices, including:

• Uniform wall thickness: Prevents warping and sink marks

• Draft angles: Eases part ejection from the mold

• Avoiding undercuts: May require side actions or collapsible cores if unavoidable

• Part orientation: Important for minimizing tooling complexity

5. Benefits of Snap Fit Designs in Manufacturing

When properly implemented, snap fit designs can deliver several important advantages:

5.1. Reduced Assembly Time and Cost

Snap fits eliminate the need for screws, adhesives, or welding, dramatically reducing labor costs and assembly line complexity.

5.2. Lightweight and Compact

Because no fasteners are required, products can be made lighter and with fewer components, enhancing portability and efficiency.

5.3. Aesthetics and Design Freedom

Snap fits enable clean, screw-free surfaces. They also allow for modular product design and creative enclosure solutions.

5.4. Recyclability

Products with snap fits are easier to disassemble at the end of life, simplifying recycling or component replacement.

6. Limitations and Challenges of Snap Fit Designs

Despite their advantages, snap fits are not suitable for every application. Some common limitations include:

6.1. Material Fatigue

Repeated snap cycles can cause wear or fatigue, especially in low-quality plastics or poorly designed features.

6.2. Load-Bearing Limitations

Snap fits are not ideal for structural joints or heavy-load applications unless reinforced or supported by secondary methods.

6.3. Mold Complexity

Some snap fit designs require complex mold features like sliders or lifters to release undercuts, which increases tooling cost and cycle time.

6.4. Environmental Factors

Heat, UV exposure, and chemical contact may degrade plastic materials, reducing snap fit performance over time.

7. Real-World Examples of Snap Fit Applications

7.1. Consumer Electronics

Snap fit enclosures are standard in smartphones, remote controls, routers, and gaming controllers. They allow for easy repair or battery replacement.

7.2. Automotive Interiors

Instrument panels, air vents, and trim pieces often use snap fits to allow easy installation during vehicle assembly.

7.3. Medical Devices

Snap fit designs in plastic syringes, diagnostic kits, and drug delivery devices reduce cost while maintaining hygienic assembly.

7.4. Household Appliances

Blenders, vacuum cleaners, and power tools rely on snap fits for access panels and replaceable parts.

8. Best Practices for Designing Injection Molded Snap Fits

To create successful snap fit parts with injection molding, follow these guidelines:

• Use simulation tools like FEA (finite element analysis) to test deflection and stress before molding.

• Collaborate with mold designers early to avoid manufacturing issues like undercuts or ejection failures.

• Prototype with 3D printing to evaluate snap action, strength, and usability before committing to tooling.

• Account for material shrinkage in critical dimensions to ensure accurate fit.

• Design for assembly: consider alignment features and ergonomic handling during assembly.

9. The Future of Snap Fit Design

With the push toward sustainability and automation, snap fit designs are gaining popularity. Advancements in bioplastics, smart materials, and additive manufacturing may redefine how snap fits are designed and produced in the future.

• Biodegradable snap fits: New plant-based plastics may enable eco-friendly assemblies.

• Smart polymers: Materials that change shape with heat or electricity could offer new types of reversible snap fits.

• Tool-less assembly in robotics: Snap fits will play a role in modular robotics and automated disassembly.

Conclusion

Snap fit design is a powerful tool in the hands of engineers and designers, offering a simple, cost-effective, and elegant method of joining plastic parts. When combined with injection molding, it opens the door to high-volume, precision manufacturing with minimal secondary operations.

Understanding the interplay between material properties, mechanical behavior, and molding constraints is key to designing effective snap fit features. With careful planning and good design principles, snap fits can enhance product quality, reduce costs, and streamline assembly across countless industries.
